Mounting the main control board in the cabinet -10, 5 mounting the main control board in the cabinet – SilentKnight SKE-450 Voice Evacuation Control Panel User Manual
Page 20
SKE-Series Voice Evacuation System Installation/Operation Manual
3-10
151267
3.5
Mounting the Main Control Board in the Cabinet
Follow these steps to properly install the main control board into the cabinet:
1. Unlock and open the cabinet door.
2. Remove the two cover plate retaining screws, then open the control panel cover plate. See

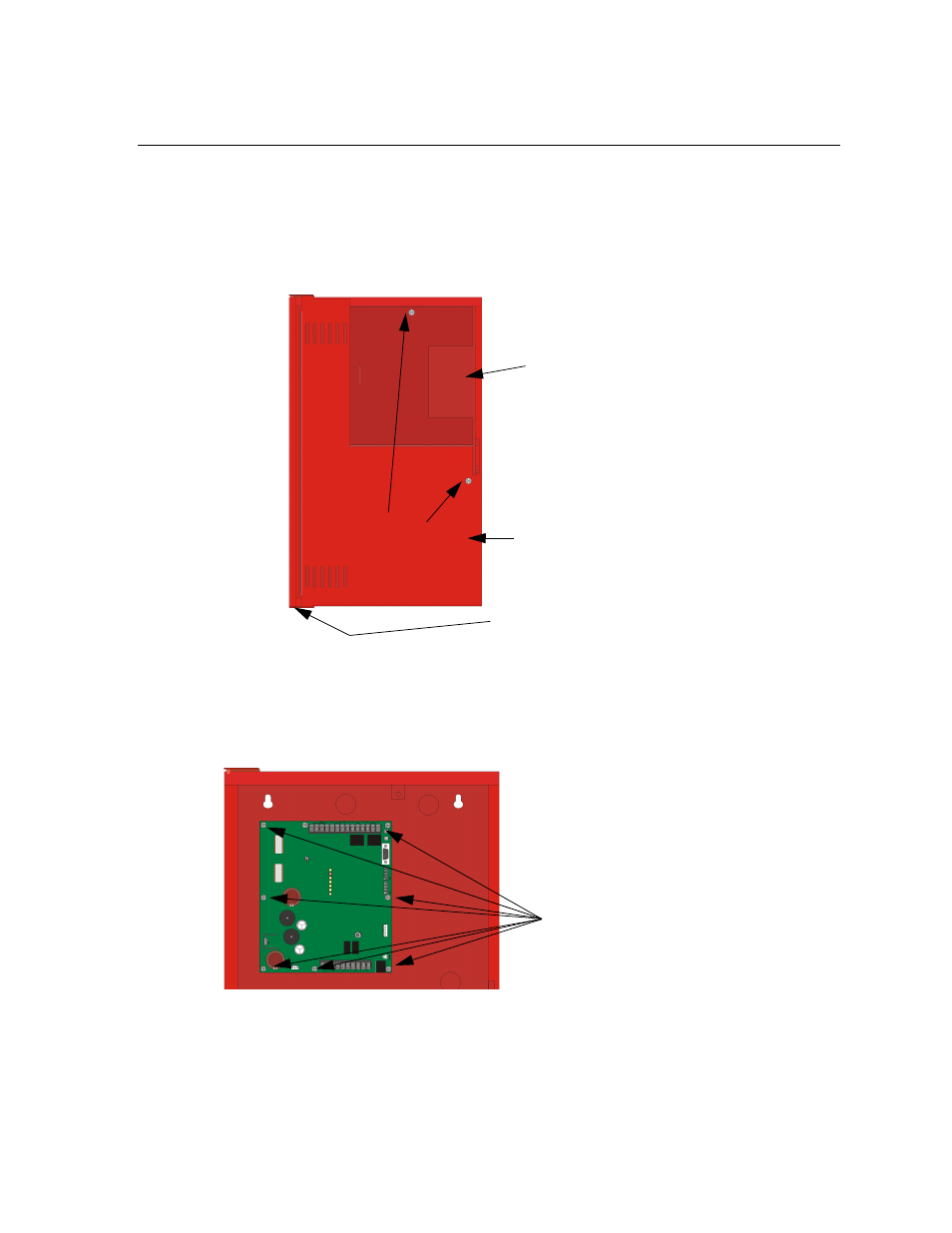

Figure 3-6 View of Cabinet With Cover Plate in Place
Note: The control panel cover plate can be remove by removing the Hinge screw.
3. Run all wire needed to install the system at this time. See Sections 3.6 and 3.7.
4. Mount the main control board into the cabinet as shown in Figure 3-7.
Figure 3-7 Main Control Board Mounting Location
5. Connect wiring as described in Sections 3.6, 3.7, and 3.8.
Control Panel
Cover Plate
Control Panel
Cover Plate
Zone Splitter
Access Plate
Retaining Screws
Hinge Screw
Main Control
Chassis Mounting
Screws
