2 class b (style y) -8 6.4.3 class a (style z) -8, 2 class b (style y), 3 class a (style z) – SilentKnight SKE-450 Voice Evacuation Control Panel User Manual
Page 52
SKE-Series Voice Evacuation System Installation/Operation Manual
6-8
151267
6.4.2
Class B (Style Y)

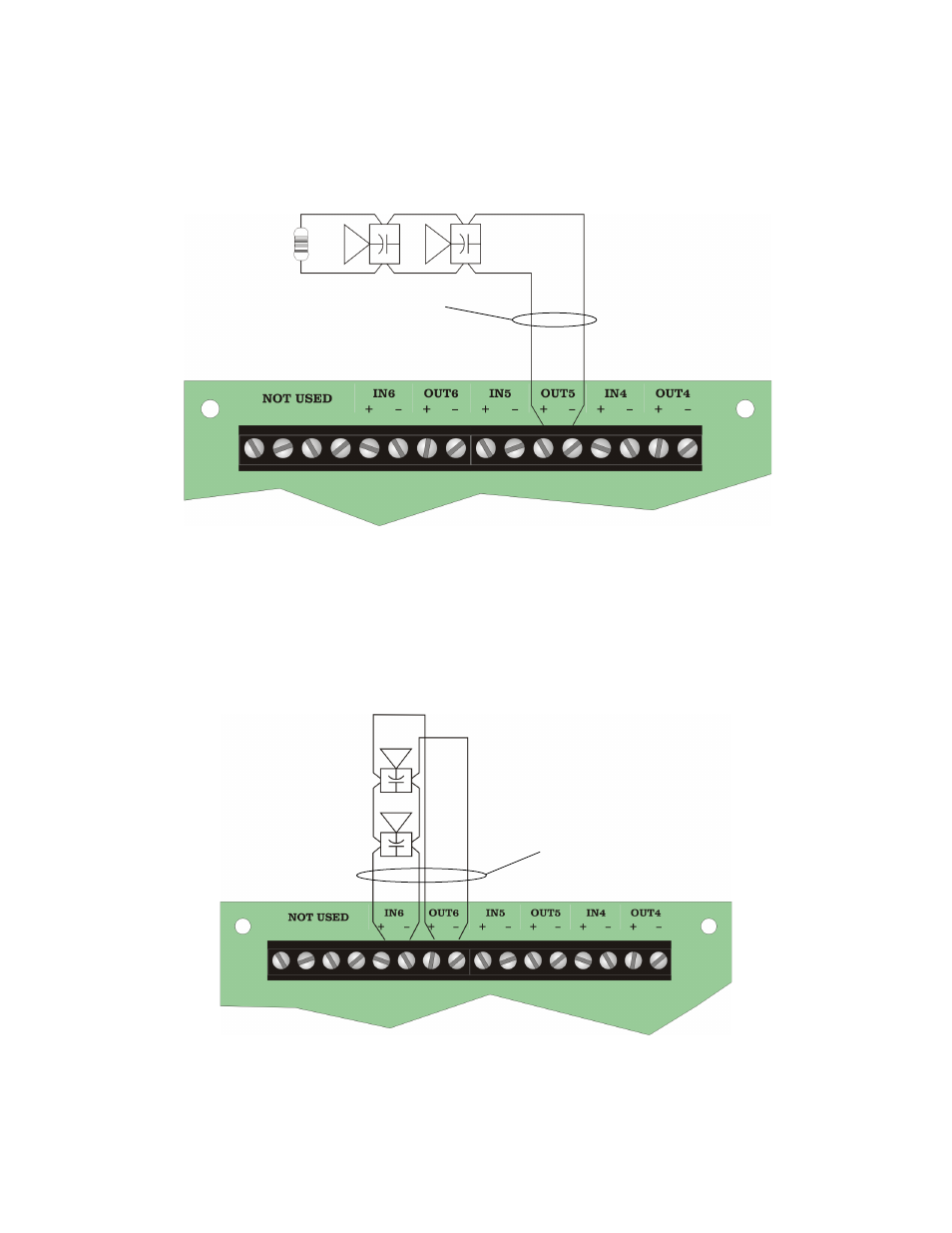

Figure 6-5 illustrates how to wire speakers to the control panel using Class B (Style Y)
supervision.
Figure 6-5 Class B (Style Y) Speaker Configuration
Note:
Figure 6-5 uses Speaker Loop 5 as an example of the wiring. All other speaker loops are configured in
the same manner to their respective OUT terminals.
6.4.3
Class A (Style Z)
Figure 6-6 illustrates how to wire speakers to the control panel using Class A (Style Z)
supervision.
Figure 6-6 Class A (Style Z) Speaker Configuration
Note:
Figure 6-6 uses Speaker Loop 1 as an example of the wiring. All other speaker loops are configured in
the same manner to their respective terminals.
Supervised
Power Limited
15 k
Ω EOL
UL Listed
Model 7630
Supervised
Power Limited
