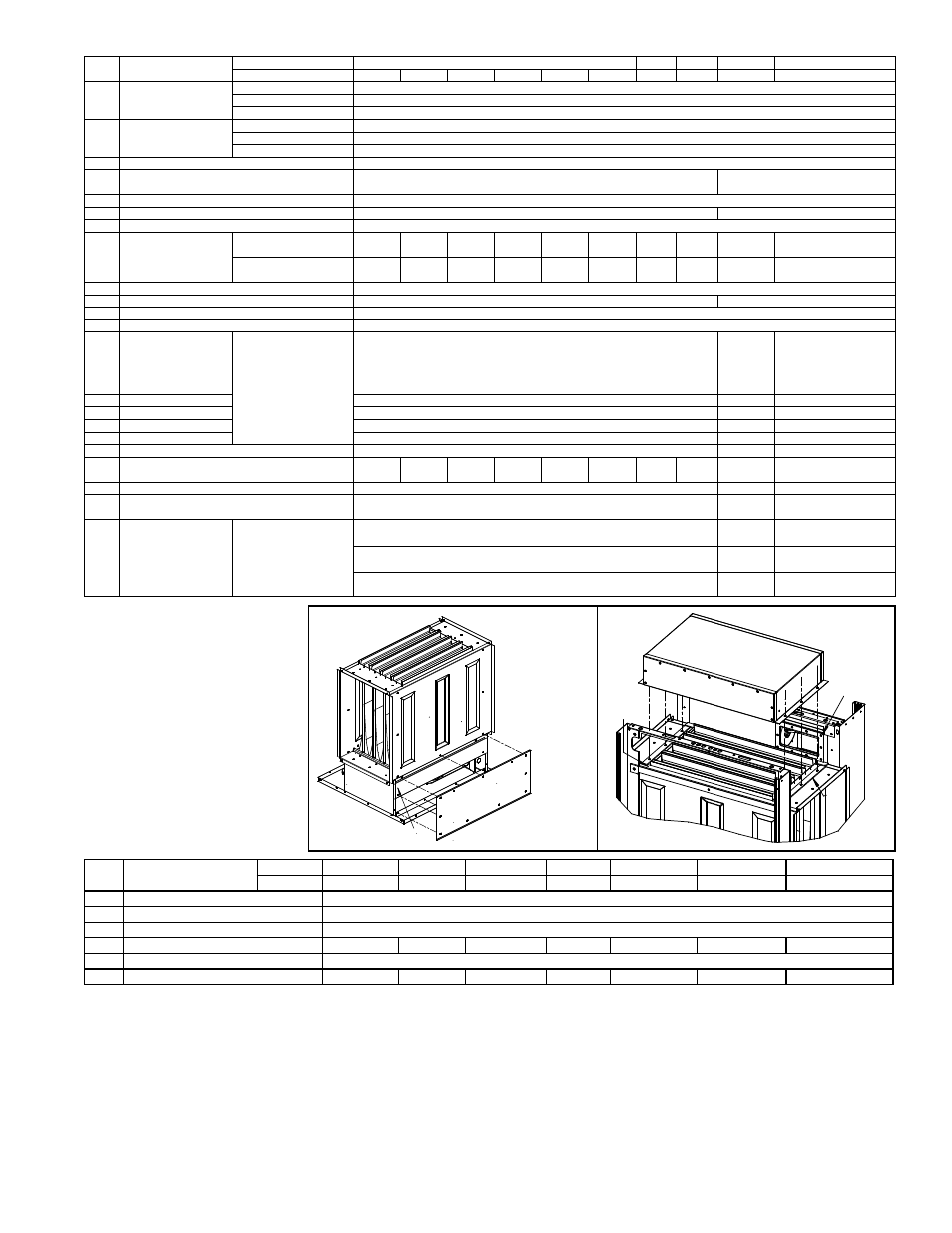

Form P-SC, P/N 269822R3, Page 9
Code Description
SSCBL 500 600 700/1050 400/800/1200
SC, SCE 100 125 150 175 200 225 250 300 350 400
70
Venter Motor and
Capacitor (includes
70A and 70B)
115V, AK1 163891 (replaces 131410)
208/230V, AK2,3,5,6 163892 (replaces 131415)
460V, AK 7, 9 163893 (replaces 165986)
70A Venter Motor only
115V, AK1 163891
208/230V, AK2,3,5,6 163892
460V, AK7,9 163893
70B Motor Capacitor only 163894 (replaces 103181)
71 Venter Motor Mounting Plate Assembly
(includes plate and support ring)
125344 (includes plate, P/N 125347, and
support ring, P/N 125346)
125345 (includes plate 125348
& support ring 125346)
72 Nuts (Keps) (4) 31522
73 Venter Wheel, Torrington 43425, AD326-215-101-2, 5/16 43814, AD424-215-101-2, 5/16
74 Flue Duct with Sensing Tube 125341
75 Venter Restrictor
Plate
w/aluminized heat
exchanger
125855 125856 125857 125858 125859 68386 68388 43259 43260 68399
w/stainless steel heat
exchanger
125855 43254 125857 43257 125859 125860 68388 68392 125862 125863
76 Venter Gasket 44695
77 Venter Housing 68380 68397
78 Flue Duct Cover Plate Gasket 41996
79 Flue Duct Cover Plate (not illustrated) 41995
80
Flue Duct
Restrictor and
Gear Motor
(includes 80 A, B,
C, D)
For SC/SCE with
Option AG 39 or 40,
and 1st furnace of
SSCBL with AG 41
or 42 mfgd beginning
11/2003
195117 █ 195118
80A End Switch (2) 174812 █ (2) 174812
80B Gear Motor 206144 █ 206144
80C Gear Mtr Capacitor 217031 █ 217031
80D Time Delay Relay 206146 █ 206146
81 Venter Gasket 44695 █ 44695
82 or
83
Venter Restrictor Plate (Sizes 100-250)
or Inlet Ring (Sizes 300 & 400)
175786 68388 68386 68390 43260 175787 43260 62594 █ 62594
84 Venter Housing Assembly 68380 █ 68397
85 Replacement Gear Motor Kit (to replace
solenoid actuator)
208474 █ 208475
86
Replacement
Solenoid Actuator
only (select by
voltage - same
apply to Sizes
400/800/1200)
For SC/SCE with
Option AG 39 or 40,
and SSCBL with AG
41 or 42 mfgd before
11/2003
174847 (460V) █ 174847
174846 (208/230V) █ 174846
174814 (115V) █ 174814
Interior Cabinet Parts
and Heat Exchanger -
All Models
90
91
Code 100 -
Heat
Exchanger
(non-control
side)
Code Description
SSCBL 500/600 700/ 1050 400/800 /1200
SC/SCE 100 125 150/175 200/225 250/300 350 400
90 Burner Rack Back Brace 9525
91 Rear Seal Plate 38616
92 Outlet Duct Gasket (2) 31900
93 Flue Collection Box Assembly 125264 125265 125266 125274 125275 125276 125469
94 Side Gasket (2) 62933
95 Front and Rear Gasket (2) 62921 62922 62924 62926 62928 62930 62932
92
94
95
93
Heat Exchanger - Applies
to all Models (one heat
exchanger per furnace
section; directional baffles
apply as listed)
Heat Exchanger Directional Air Baffles (page 10)
Directional air baffles cannot be installed in the replacement heat exchanger at the factory.
They must be ordered separately and installed in the field.
1) Model SC is equipped with a heat exchanger directional air baffle assembly (Code 102) as
illustrated on page 10.
When replacing a heat exchanger, check to see if the baffle assembly can be salvaged. If the
baffle assembly cannot be salvaged, order and install a replacement.
2) Model HSC and the discharge furnace only on a Model SSCBL are equipped with only
a rear top baffle support (Code 103) and a rear top baffle (Code 104). If these parts cannot be
salvaged, order and install replacements.
