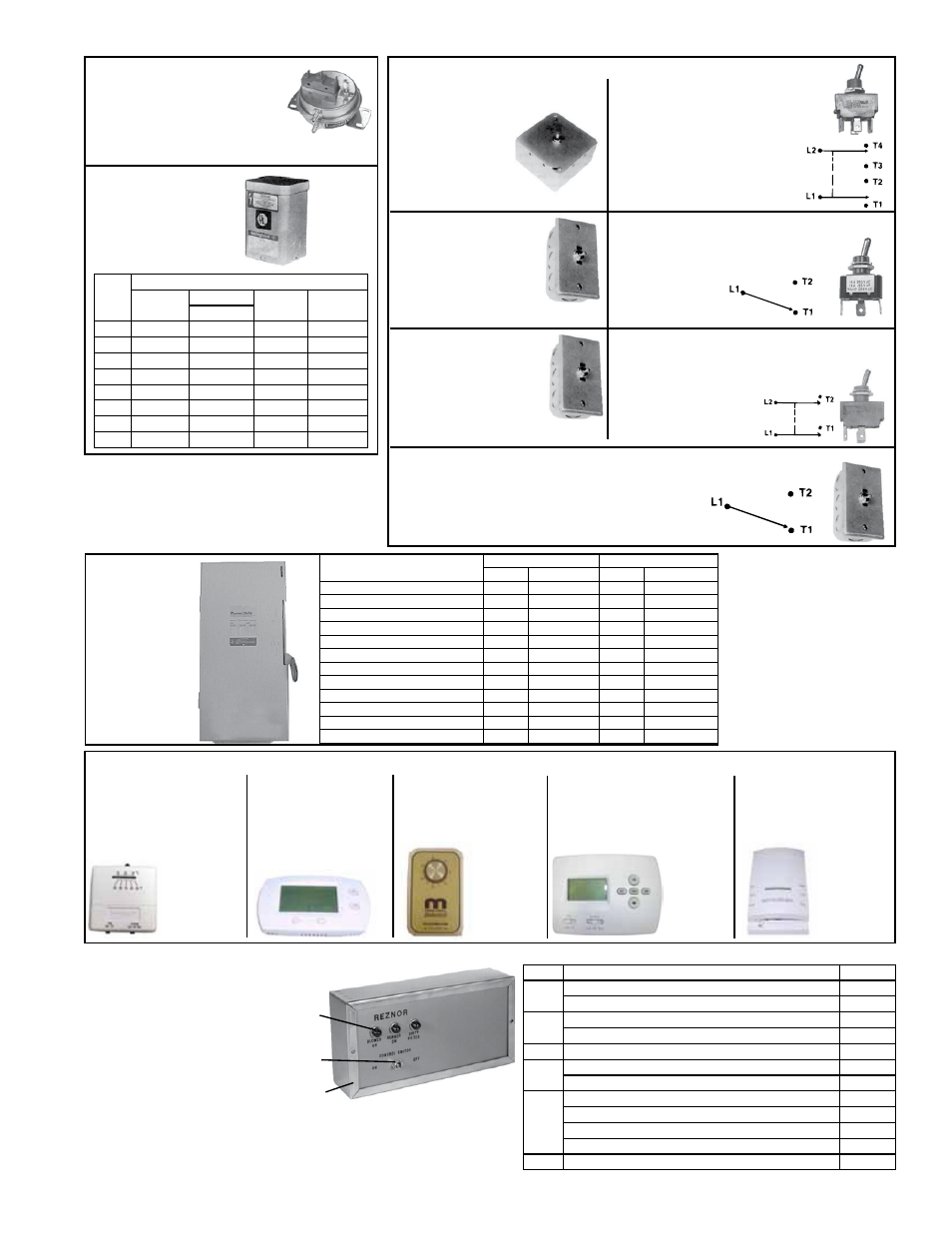

Form P-SC, P/N 269822R3, Page 7
Code 47 - Dirty Filter
Pressure Switch, Tridelta
AP4434, P/N 105507
Field adjustable; range
.17 to 5.0" ± .05" w.c.
Code 48 - KVA
Transformer
KVA
Primary
200/208 220/240 277 575
440/480
.25 19807 11279 113556
.50 19808 11100 14993*
.75 24453* 11217 14994*
1.0 24454* 16065 14995*
1.5 24455* 24392* 14996*
2.0 24456* 26628* 14997*
3.0 24465* 26630* 14998*
5.0 24466* 26631* 15003*
Code 50 - Toggle Switches
P/N 40277, DPDT, 3-Position
Toggle Switch
in a 4x4 box
(Same as
Option CN1)
P/N 101900, DPDT,
3-Position Toggle Switch
(replaces P/N 21826) - Used
in Option CN1 and Remote
Console Options RC 5, 6,
7, 8, 10, 11, and 12
P/N 39732, DPST,
2-Position Toggle
Switch in a
2x4 box
(Same as Option CN2)
P/N 101902, DPST, 2-Position Toggle
Switch (replaces P/N 16816) -
Used in Options CN2,
AG3, AG8, AG9 and
Remote Console
Option RC12
P/N 39733, SPDT,2-
Position Toggle
Switch in
a 2x4 box
(Same as Option CN3)
P/N 39748, SPST, 2-Position Toggle Switch in a 2x4 box
(Same as Option CN4)
NOTE: When replacing SPST switch with SPDT
switch, make wiring connections at appropriate
two terminals for switch to function properly.
P/N 101901, DPST, 2-Position Toggle
Switch (replaces P/N 1052) -
Used in Options CN3, CN4, and
Remote Console
Options RC 3,
4, 7, 8, & 11
* Special order
Description
P/N's - U.S. P/N's - Canada
Indoor Same as Opt Indoor Same as Opt
30 Amp 240V Non-Fusible 40267 CP1
30 Amp 240V Fusible (less fuses) 40268 CP2
30 Amp 600V Non-Fusible 50365 CP3 208053 CP58
30 Amp 600V Fusible (less fuses) 50366 CP4 208046 CP41
60 Amp 240V Non-Fusible 161462 CP21
60 Amp 240V Fusible (less fuses) 161459 CP17
60 Amp 600V Non-Fusible 161464 CP23 208055 CP60
60 Amp 600V Fusible (less fuses) 161461 CP20 208047 CP43
100 Amp 240V Non-Fusible 161463 CP22
100 Amp 240V Fusible (less fuses) 90973 CP18
100 Amp 600V Non-Fusible 164330 CP24 208057 CP62
100 Amp 600V Fusible (less fuses) 155010 CP36 208049 CP45
Code 51 -
Disconnect
Switches
Code 52 - Thermostats (Wall mounted Option CL; or mounted on the remote console, Opt RCT, see Code 57)
1-Stg Heat/Cool,
24v snap acting
thermostat (50-90°F)
with fan auto-on &
cool-off-heat switches
P/N
255350
(same as
CL1 & RCT1)
2-Stg Heat/Cool, 24v
digital thermostat (40-
90°F) with fan auto-on
function
Electronic modulating
room override (60-
85°F), low voltage for
makeup air
P/N 220630 (same
as CL22 & RCT2)
P/N
24857
(same
as CL9)
1-Stg Heat/Cool, 24v
programmable thermostat
(45-88°F) with fan auto-on
and cool/off/heat.
P/N
220632
(same
as CL52
& RCT9)
Electronic, 24v
programmable
thermostat, 2-stg heat
and/or cooling
P/N
221038
(same as
CL33 &
RCT5)
54
55
56
Optional Remote Console
Optional RC style remote
console includes a mounting
ring so that the console may
be either recessed or wall
mounted. The box is of
16 gauge steel with knockout
holes for field wiring.
The cover is made of plastic with custom engraving. Order
replacement parts for Option RC remote console by P/N.
Code Description P/N
53 Remote Console Box - 10-1/16x6-5/8x2-5/8
107010
Remote Console Box - 15-1/16x6-5/8x2-5/8 107011
54 Mounting Ring for 10-1/16" long box
107014
Mounting Ring for 15-1/16" long box 107015
55 Light for Red Lens, Solico #5TD1L-R-B5 101889
56 SPDT Switch, Cutler Hammer #7505K6
101901
DPDT Switch, Cutler Hammer #7561K6 101900
57
Single-Stage Heating Thermostat 255350
Two-Stage Heating Thermostat 220630
Single-Stage Heating/Cooling Thermostat 220632
Two-Stage Heating/Cooling Thermostat 221038
58 Potentiometer (See CODE 371, page 28) 16110
