Reznor SSCDBL Parts Manuals - Manual (Page 6)

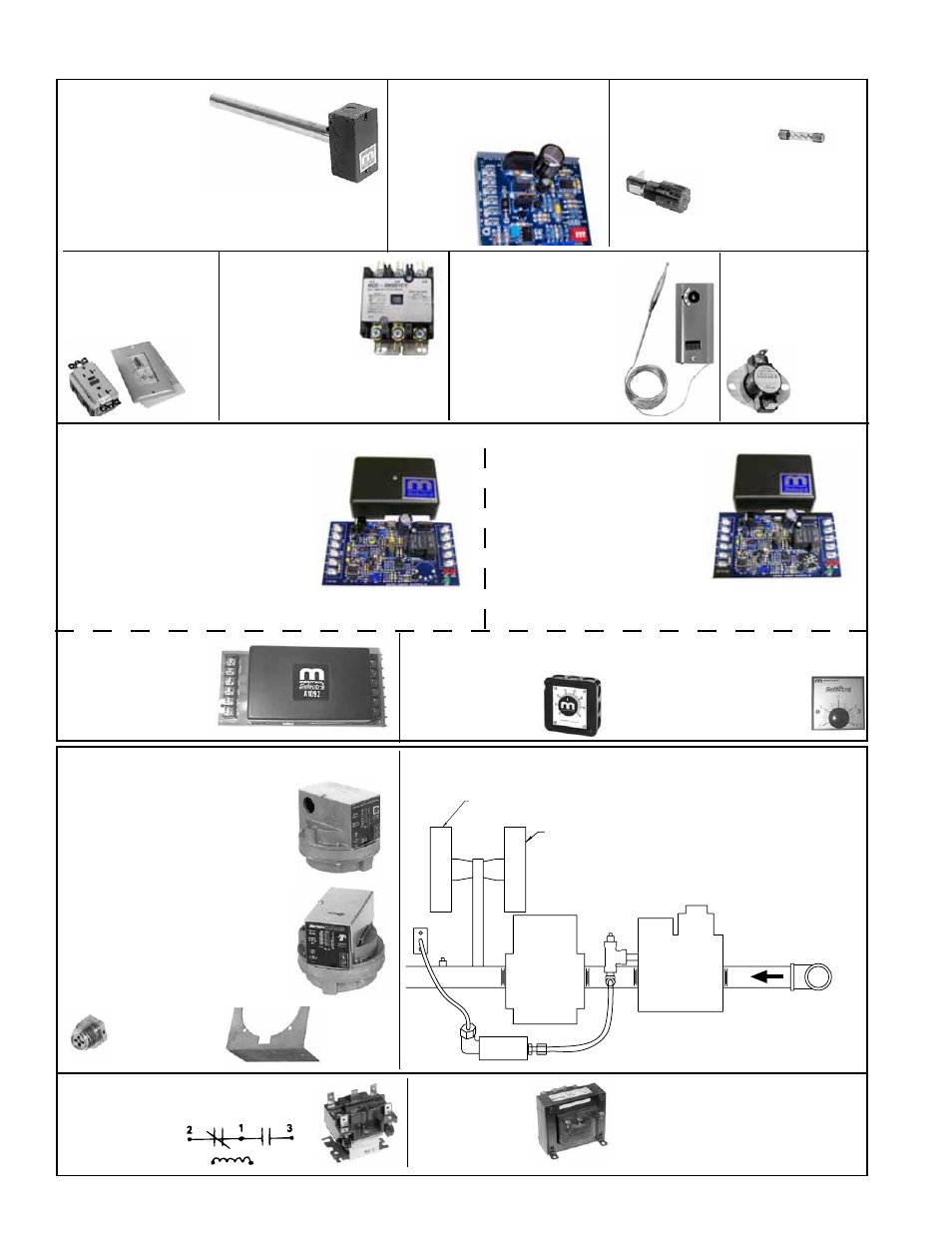

Form P-SC, P/N 269822R3, Page 6
Code 44 - Gas Pressure Switches used in Gas Control
Options AG39, AG40, AG41, AG42
Carryover
Regulator
Modulating
Valve
Single-Stage
Gas Valve
Primary Gas Flow Pressure Switch,
White Label, 1.1” w.c., P/N 174809
For AG 39, 40, 41, 42 with a solenoid actuator (mfgd
before 11/03), Backup Gas Flow Pressure Switch, Yellow
Label 1.4” w.c., P/N 175985
For AG 39, 40, 41, 42 with a gear motor (mfgd beginning
11/03), there are two gas flow pressure switches with the
white label, 1.1” w.c., P/N 174809
NOTE: Carryover regulator is
on page 11. See Parts Form
P-VALVES for gas valves.
Gasket,
P/N 104138
Code 31 -
Discharge Sensor
for Modulating Gas
Control Options
Code 39 - Amplifiers for Modulating Gas Control Options
Code 32 - P/N 134170, Signal
Conditioner for Modulating
Gas Control Options AG21
and AG40
Code 40 - Remote Temperature Selectors for Modulating
Gas Control Options
P/N 174848,
Maxitrol A1092,
used in Option
AG39, AG40,
AG41, and AG42
P/N 48042,
Maxitrol TD121,
used in Opt AG9
P/N 174849, Maxitrol
TD92-0509, used in
Options AG 39, 40, 41, 42
P/N 48041, Maxitrol TS-121,
for Options AG8 and AG9
P/N 133228, Maxitrol TS-194,
for Option AG39 and AG41
Electrical Components (cont'd)
Codes 33 and 34 - Fuse
and Fuseholder
Fuse Holder,
P/N 60241
Fuses:
8 Amp, P/N 201773
3 Amp, P/N 201780
3 Amp, P/N 201803
Code 35 -
Convenience Outlet
Receptacle (Option
BC2), P/N 96912
Code 36 - Motor
Contactor,
24V Coil, P/N
216386 (replaces
P/N 93661 and
P/N 119625)
For blower motor starters,
see pages 13-16.
Code 37 -
Temperature
Control, J/C
#A19ABC-24, -30 -
100°F, used in Gas
Control Option AG41
and AG42 on Model
SSCBL, P/N 197204
Kit P/N 262320 replaces A1010B
Amplifier, P/N 48035, used in
Maxitrol 21HR (Option AG9) and
20AH (Option AG7) Systems and
1011F Amplifier, P/N 48036, in
Maxitrol 30AH (Option AG7) and
31HR (Option AG9) Systems
Amplifier, Maxitrol A1010U, P/N 260863,
in Replacement Kit P/N 262320
Kit P/N 262321 replaces
A1010F Amplifier, P/N
48037, used in Maxitrol
21H (Option AG8) Systems
and A1011F Amplifier, P/N
48038, used in Maxitrol 31H
(Option AG8) Systems
Amplifier, Maxitrol AD1010U, P/N
260864, in Replacement Kit P/N 262321
Code 38 - Reverse
Flow Limit,
#60T11-313154,
P/N 103323
Bracket,
P/N 18795
Vent Limiter,
Maxitrol A1209,
P/N 123481
Codes 41, 42, 43 - Gas Pressure Switches
Bracket,
P/N
100261
Code 43 - High Gas
Pressure Switch, P/N 93850
Manual Reset, Settings - 125%
of normal manifold gas pressure
as stated on the unit rating plate
Codes 41 & 42 - Low Gas
Pressure Switch, P/N 93849
(Range 1-6" w.c.); P/N
149176 (Range 6-24" w.c.)
Automatic Reset, Settings - 50%
of minimum inlet gas pressure
as stated on the unit rating plate
Codes 46 -
Control and
Damper
Transformers,
200 & 300 VA
P/N 105202, 575/115/300VA - Use
on 115V furnace
P/N 39095, 230/460/575-24-200VA
P/N 39094, 208/24/200VA
Code 45 - 2-Speed Motor Speed
Selector Relay, Essex 91-102006-
1300, 24V,
P/N 110656
