Form P-SC, P/N 269822R3, Page 23

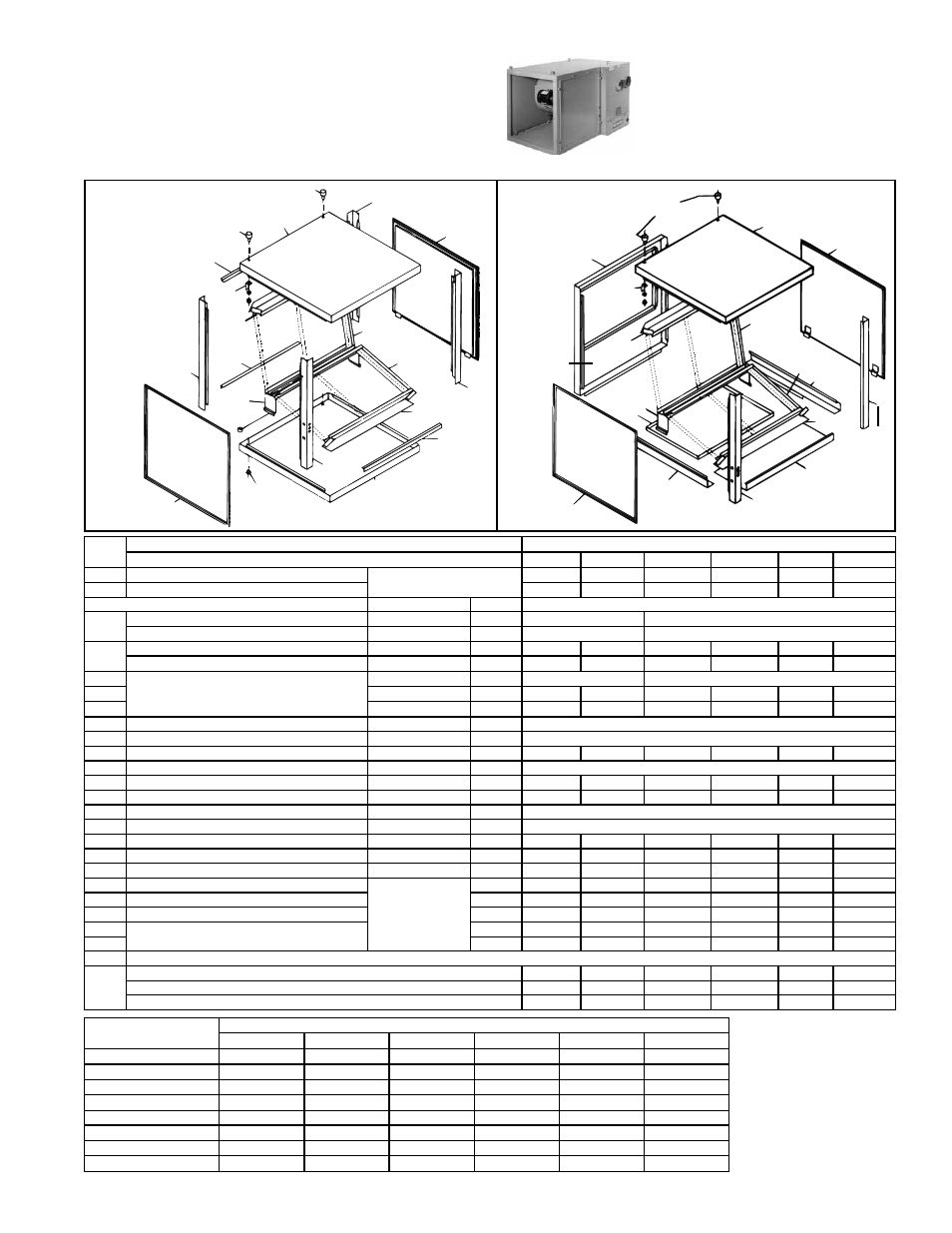

Blower Cabinet Parts - Model SCE (Note: Filter rack & filters are optional and are not part of Code 220A or 220B)
221
231
228
225
224
236
223B
232
233
237
238A
223C
230
238B
221
222
229
236
Code 220B - Optional
Blower Cabinet that
Accommodates
Dampers
223A
225
222
225
223C
224
236
226
221
227
237
223B
222
226
223C
238B
238A
221
226
236
Code 220A - Standard
Blower Cabinet for
Model SCE
beginning
7/84
SCE Rear View Showing
Standard Inlet Air Opening,
Code 220A (does not
accommodate dampers)
Blower Cabinet
and Components -
Model SCE
For blower motor, see
pages 13-16.
For drive components, see
pages 16-20.
Code
Blower Cabinet Parts Size
Description 125 150/175 200/225 250/300 350 400
220A Standard Cabinet Shipped knocked down;
assembly is required.
12545 12546 12547 12548 12549 12550
220B Optional Cabinet 84215 84216 84217 84218 84219 84220
Components: Applies to: Qty
221
Door without insulation Std Cabinet 2 51041 51042
Door with insulation Opt Cabinet 2 84221 84222
222
Top & Bottom without insulation Std Cabinet 2 11522 11529 11197 11564 11574 11583
Top with insulation Opt Cabinet 1 11825 11842 11767 11856 11862 11777
223A
Corner Support
Std Cabinet 1 11518 11211
223B Std & Opt 1 11519 11519 19982 19982 19982 19982
223C (2)Std; (1)Opt 11517 11517 11210 11210 11210 11210
224 Hanger Support Std & Opt 2 10219
225 Hanger Assembly Std & Opt 2 9557
226 Duct Connecting Angle Opt Cabinet 2 11523 11530 11536 11567 11576 11584
227 Hole Plug 1/2" Std & Opt 2 82413
228 End Panel only (less insulation) Opt Cabinet 1 12075 12411 11540 12414 12029 11589
229 End Panel Insulation Opt Cabinet 1 11158 11165 11167 11176 11180 11184
230 Bottom Left Side Opt Cabinet 1 11203
231 Bottom Right Side Opt Cabinet 1 11204
232 Rear Bottom Section Opt Cabinet 1 11526 11533 11392 11571 11580 11393
233 Inlet Cap Opt Cabinet 1 12513 12514 11538 12515 12516 11587
234 Bottom Insulation Opt Cabinet 1 11155 11162 11167 11176 11180 11184
235 Filter Racks (less filters; assembly required)
Filter rack is
optional. It fits either
Std or Opt cabinet.
1 24501 24503 24505 24507 24509 24511
236 Filter Support 2 19704 19710 19717 19723 19729 19736
237 Intermediate Filter Support Assembly 1 19708 19715 19721 19727 19734 19742
238A
Filter Stop
1 █ █ █ █ 19733 19740
238B 1 █ █ █ █ █ 19741
239 Filters - See chart below .(only 2" replacement filters are available; 1" filters in sizes listed should be obtained locally)
240
Inlet Screen, no dampers (same as Opt AZ3) 109134 109135 109136 109137 109138 109139
Inlet Screen, with dampers (same as Opt AZ4) 109146 109147 109148 109149 109150 109151
Screens for horizontal & bottom openings w/dampers (same as Opt AZ5) 109152 109153 109154 109155 109156 109157
Code 239 - Optional
Filters
Size
125 150/175 200/225 250/300 350 400
Permanent 16x20x2 █ █ (2) 101620 █ █ █
Permanent 16x25x2 █ █ (2) 101622 █ █ (3) 101622
Permanent 20x20x2 (2) 101621 █ █ (2) 101621 (1) 101621 █
Permanent 20x25x2 █ (2) 101623 █ (2) 101623 (3) 101623 (2) 101623
Pleated 16x20x2 █ █ (2) 104110 █ █ █
Pleated 16x25x2 █ █ (2) 104112 █ █ (3) 104112
Pleated 20x20x2 (2) 104111 █ █ (2) 104111 (1) 104111 █
Pleated 20x25x2 █ (2) 104113 █ (2) 104113 (3) 104113 (2) 104113
