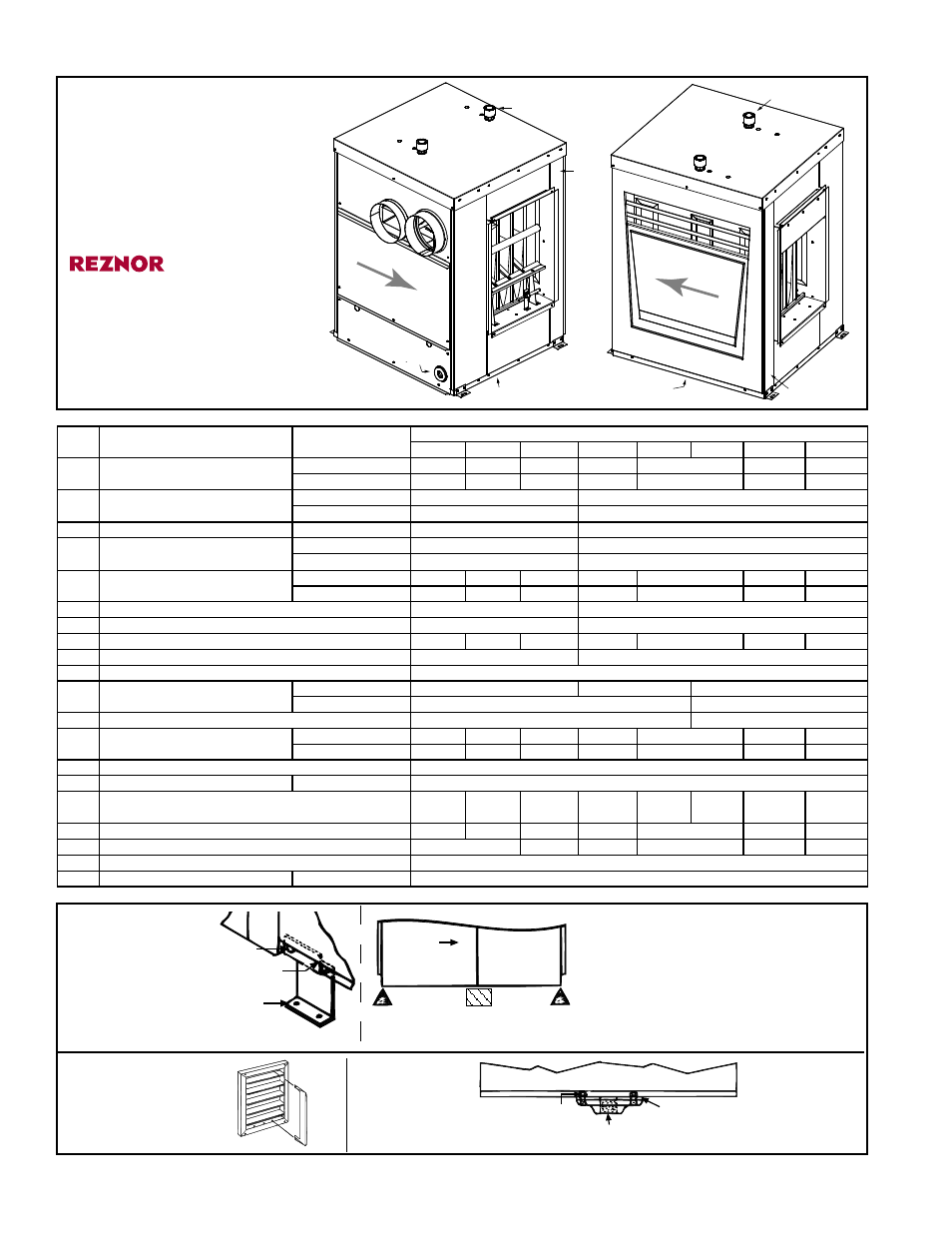

Exterior Cabinet Parts - Furnace Section Models SC and SCE (Quantity not listed in parenthesis is one.)
Furnace Section Exterior
Cabinet Parts - Models SC
Duct Furnace and Model
SCE Furnace/Blower
Packaged Unit
Shipping Bolt Lug
Control Access Panel
Retaining Screw
Support, P/N 74487
(4 required)
Blower
Section
Model SCE
Furnace
Section
Airflow
Code 213 -
Mounting
Supports
for Models
SC and
SCE
Model SCE - P/N 74487 as illustrated above may
be used at the four corner support locations. Do
not use this type of support at the center support
locations (between the furnace and the blower
section). At the center locations, a field-fabricated,
angle-iron brace support must extend horizontally,
jointly supporting a portion of both the furnace
and the blower cabinet. All supports must be non-
combustible.
Codes 214, 215, &
216 - Horizontal and
Vertical Louvers
® Label,
P/N 196689
Gray Sealant (3M
900 Duct Sealer Fast
Bond), P/N 100117
Bottom of Furnace Casing
Gasket
3/4” Pipe Waste Nut
10-24 x 1-1/2”
Brass Bolt
and Nut
Code 218 -
Condensate
Drain Kit
Model SC
Duct Furnace
Airflow
Airflow
212
212
200
200
204
204
207
207
205
201
211
211
210
210A
209
208
202
203
206
Code Description Application
Size
100 125 150/175 200/225 250 300 350 400
200 Casing Top Assembly with
insulation
SC Series 6 125309 125310 125311 125312 125313 125314 125315
SCE Series 6 125567 125568 125569 125570 125571 125572 125573
201 Right Casing Side Panel
w/insulation - SC 80582 80585
SCE 11819 11849
202 Corner Leg - Right Front SC, SCE 10309 10311
203 Corner Leg - Right Rear
SC 10310 10312
SCE 10310 11005
204 Top Front & Top Back (2)
w/insulation - SC 126330 64667 64669 80574 80576 80578 80580
SCE 10861 10869 10875 10886 10892 10900 10906
205 Left Rear Corner Leg (control side) 126109 126110
206 Left Front Corner Leg (control side) 126111 126112
207 Bottom Front & Rear Panel Assembly w/insulation (2) 67693 64662 64664 80561 80564 80567 80570
208 Venter Panel Assembly 125351 130224
209 Access Panel Assembly 126012
210 Bottom Left Side Panel with
Grommet & Sight Hole Cover
SC 125695 (with insulation) 125692 125693
SCE Series 6 125692 125693
210A Vinyl Grommet 102607 15021
211 Bottom Pan Assembly
Aluminized, 125267 125268 125269 125270 125271 125272 125273
Stainless Steel 129516 129517 129518 129519 129520 129521 129522
212 Hanger Assembly (2) 9557
213 Mounting Support (below) (4 required) 74487
214
Louver Frame with Horizontal Louvers (Horizontal &
vertical louvers are optional on SCE.)
10020 10018 10016 10014 10012 10012 10010 10001
215 Horizontal Louver only (5) 9923 (5)9887 (5)9847 (5)9808 (10) 9769 (10) 9733 (10)9553
216 Vertical Louver only (4) 9554 (6) 9554 (8)9554 (10) 9554 (12) 9554 (14)9554
217 Maroon Touchup Paint for Louvers, 12 oz can 207432
218 Condensate Drain Kit same as Opt CS1 31765
