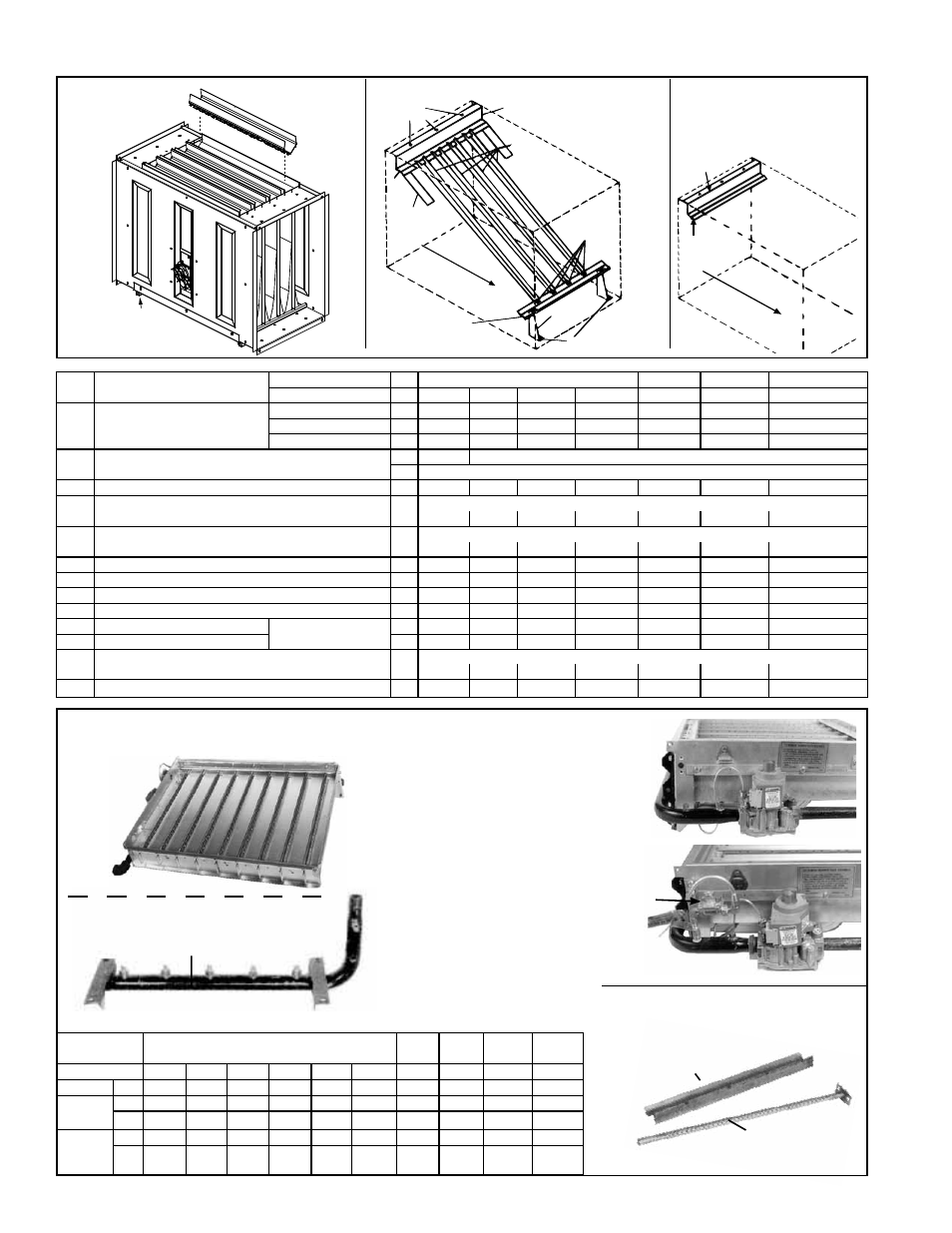

Reznor SSCDBL Parts Manuals - Manual (Page 10)

Form P-SC, P/N 269822R3, Page 10
Code 100 - Heat
Exchanger
105
106
Code Description
SSCBL Qty 500/600 700/1050 400/800/1200
SC, SCE 100 125 150/175 200/225 250/300 350 400
100
Heat Exchanger for SC,
SCE, SSCBL (replacement
gaskets, Code 101, required)
Aluminized Steel 1 44301 44304 44307 44310 44313 44316 44319
409 Stainless Steel 1 44302 44305 44308 44311 44314 44317 44320
321 Stainless Steel 1 44303 44306 44309 44312 44315 44318 44321
101 Heat Exchanger Gaskets for SC, SCE, and
SSCBL (required w/replacement heat exchanger)
2 62921 62932
2 62933
102 Heat Exchanger Baffle Assembly 1 55094 55095 55096 55097 55098 55099 55100
102A Finger Baffle Support Bracket
>
55101
(2) (2) (2) (2) (4) (4) (4)
102B Finger Baffle
>
45399
(3) (4) (6) (8) (11) (13) (15)
102C Bottom Baffle Support 1 46478 46484 46489 46494 46499 46504 46509
102D Rear Top Baffle Support 1 55103 55104 55106 55108 55110 55112 55114
102E Rear Top Baffle 1 55116 55117 55119 55121 55123 55125 55127
102F Side Finger Baffle 2 55128 55128 55128 55128 55128 55128 55128
103 Rear Top Baffle Support All HSC & SSCBL
discharge unit only
1 55103 55104 55106 55108 55110 55112 55114
104 Rear Top Baffle 1 55228 55229 55231 55233 55235 55237 55239
105 Heat Exchanger Tube Baffles
("V" with Turbulators)
125170
(4) (5) (7) (9) (12) (14) (16)
106 Burner Rack Slide Rail 2 9897 9857 9819 9781 9745 9709 9517
Attaches
with screws
102D
102B
102E
102F
102C
Screws
102A
Screws
Airflo
w
Airflow
103
104
Heat Exchanger
Baffle in Model HSC
and Model SSCBL
discharge furnace only
Code 102 - Heat Exchanger Baffle Assy
Codes 117 and 118 - Carryover
Tube and Drip Shield for Burner
Rack
Burner Rack and Components - Applies to all
Furnaces (one per furnace section)
Code 121 -
Manifold
Code 122 - Burner
Orifices
118
117
Series 6 Natural Gas
Burner Rack with
two flash carryovers
(one on each end)
Series 6 Propane Gas Burner
Rack with air shutters and
a regulated carryover with
carryover tube and drip shield.
(has a flash carryover on
the end opposite the orifices)
Gas Valve - See
Form P-VALVES
Gas Valve - See Form P-VALVES
Code
123
Code 122 - Burner Orifices (sea level)
SSCBL 500 600
700/
1050
400/800
/1200
SC/SCE 100 125 150 175 200 225 250 300 350 400
Qty 4 5 7 7 9 9 12 12 14 16
Natural
Gas P/N 11792 84437 11833 84437 11828 84437 11833 84437 84437 84437
Drill #41 #42 #44 #42 #43 #42 #44 #42 #42 #42
Propane
P/N 61652 61652 11830 61652 11830 61652 11830 61652 61652 61652
Drill 1.45
MM
1.45
MM
#55
1.45
MM
#55
1.45
MM
#55
1.45
MM
1.45
MM
1.45
MM
Code 110 -
Burner
Rack
Heat Exchanger (cont'd)
