Page 8: Enter motor and wheel 8

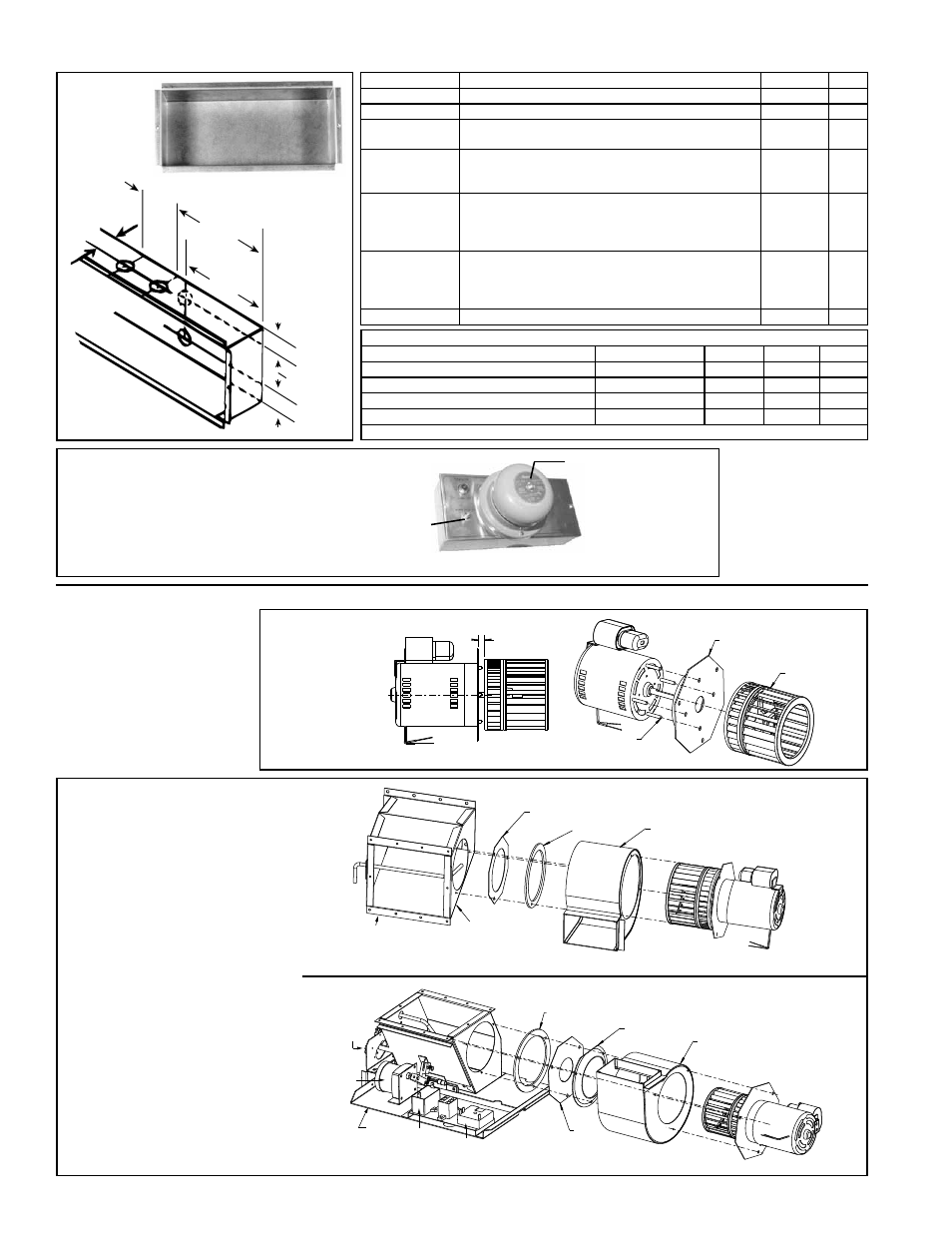

Form P-SC, P/N 269822R3, Page 8
Code 53 -
Console
Box
2-1/8 (54mm)
2-1/8 (54mm)
2-3/8 (60mm)
5-15/32
(139mm)
6
(152mm)
2-3/8 (60m
m
)
1-5/16 (33mm)
Knockout
Hole
Locations
(measured
from
centerlines)
Remote Console Components by Option - Options RC1-RC12
Code 60 - Illinois School
Code - Special Manifold
Option BM12 includes a
Remote Console with Alarm
Bell and Silencing Buttons
60A - Console
Box, P/N 107010
60B - Light,
P/N 101889
60D - Alarm Bell,
P/N 110131
60C -
Switch,
P/N 110130
Component
Function
In Opt RC Code
Blower ON Light Lights when blower is operating
1-12
55
Burner ON Light Lights when burners are lit
1-12
55
Dirty Filter Light Lights when the pressure switch indicates that filters
need to be cleaned or replaced
2, 4, 6, 8,
12
55
On/Off Control
Switch
ON position energizes the unit for thermostat control.
OFF position de-energizes the unit and closes
optional automatically controlled outside air dampers.
3, 4, 7, 8,
11, 12
56
Summer/Win-
ter/Off Control
Switch
Summer position energizes the blower only. "Winter"
position energizes the unit for thermostat control.
"Off" position de-energizes the unit and closes
optional automatically controlled outside air dampers.
5, 6, 10
56
Heat/Vent/Cool
Control Switch
Heat position energizes the unit for thermostat
control. Vent position energizes the blower & opens
automatically controlled outside air dampers. "Cool"
position energizes blower, dampers, and cooling unit.
7, 8, 11, 12
56
Cooling Light
Lights when cooling system is operating
7, 9, 11, 12
55
Console Dimensions (wall mounted - not recessed)
Console Options
Optional Control
Length* Height* Depth
RC 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12
without
10-3/4"
7-5/8"
2-5/8"
RC 1, 2, 3, 4, 5, 6, 9
with
10-3/4"
7-5/8"
2-5/8"
RC 7, 8, 10, 12
with
15-3/4"
7-5/8"
2-5/8"
RC 11
with & without
15-3/4"
7-5/8"
2-5/8"
* Subtract 5/8" from length & 1" from height when recessing console (not using wall-mounting ring)
Remote Console (cont'd)
Venter and Flue Duct
Parts - All Models
Flue Duct and Venter Parts
for all SC/SCE units that do
not have 20-100% electronic
modulation Option AG 39 or
40; all furnaces in an SSCBL
unit without Option AG 41 or
42; and 2nd and 3rd furnaces
in an SSCBL unit with Option
41 or 42.
Flue Duct and Venter Parts for
single furnace with 20-100%
electronic modulation Option
AG39 or AG40 and the first
furnace in multiple furnace
units with Option AG41 or
AG42.
74
75
76
77
78 (gasket for
Flue Duct Cover,
Code 79 - not shown)
Venter Motor
and Wheel - see
Codes 70-73
80
80A
80B
80C
80D
82
81
83
84 Venter Motor
and Wheel - see
Codes 70-73
Venter Motor and Wheel Assembly
.305” (.77cm)
70A
70B
71 (includes both
support ring and plate)
72
73
Venter
Motor and
Wheel - All
Furnaces
