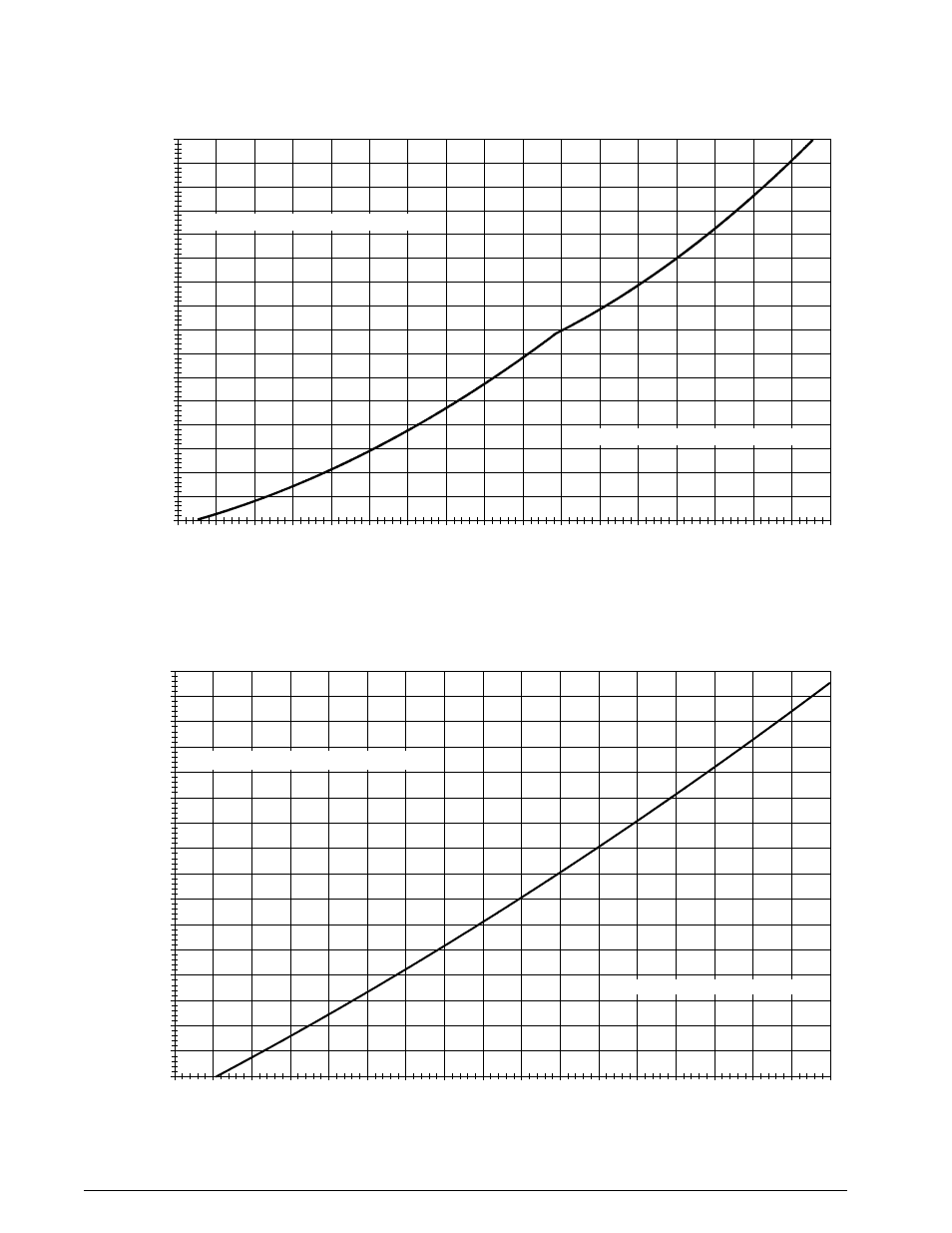

Figure 19. R6GP-120-235Ca
R6GP-120*-235C Charging Chart - Cooling Operation
Two stage refrigeration system - See Application Notes for use
180
205
230
255
280
305
330
355
380
405
430
455
480
505
530
555
580
50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135
Liquid Temperature (F)
Liquid Pressure (psig)
R e m o ve re frig e ra n t w h e n a b o ve cu rve
A d d re frig e ra n t w h e n b e lo w cu rve
Figure 18. R6GP-090-200Ca Series
R6GP-090*-200C - Charging Chart - Cooling Operation
Two stage refrigeration system - See Application Notes for use
1 8 0
2 0 5
2 3 0
2 5 5
2 8 0
3 0 5
3 3 0
3 5 5
3 8 0
4 0 5
4 3 0
4 5 5
4 8 0
5 0 5
5 3 0
5 5 5
5 8 0
5 0 5 5 6 0 6 5 7 0 7 5 8 0 8 5 9 0 9 5 1 0 0 1 0 5 1 1 0 1 1 5 1 2 0 1 2 5 1 3 0 1 3 5
Liquid Temperature (F)
Liquid Pressure (psig)
A d d re frig e ra n t w h e n b e lo w cu rve
R e m o ve re frig e ra n t w h e n a b o ve cu rve
