Main internal harness, Nozzle to fan end, Band clamps – Proheat X45–School Bus User Manual
Page 17: Nozzle reassembly, Enclosure lid (optional)
1-8

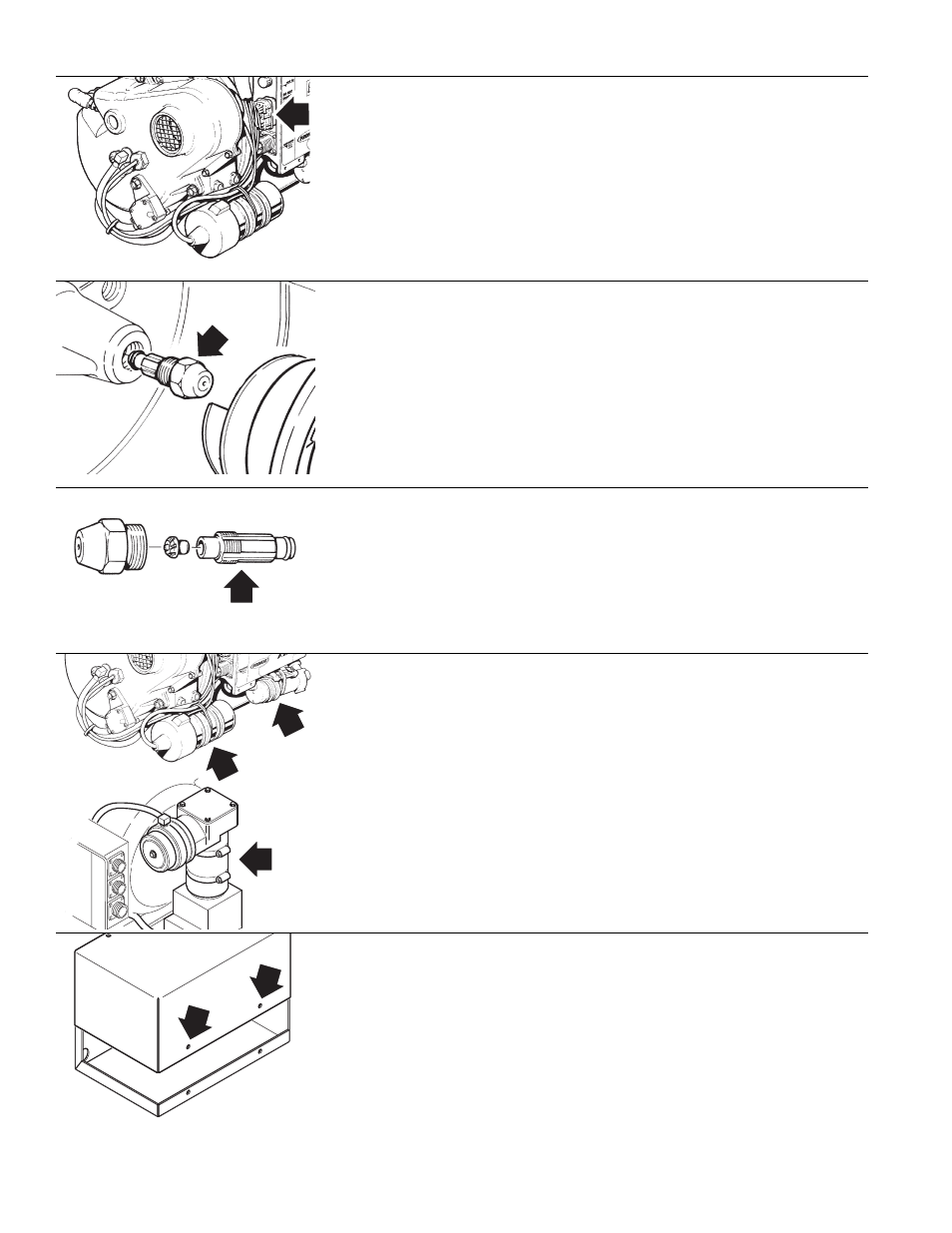

PROHEAT INSTALLATION & SERVICE
MAIN INTERNAL HARNESS
•
Torque bolt (1) to 10±2 in/lbs (1.1 +/- 0.2)
NOZZLE TO FAN END
•
Lubricate o-ring on nozzle with diesel
•
Torque nozzle to 150±10 in/lbs (17±1.1 Nm)
BAND CLAMPS
•
Torque clamps (4) to 25±3 in/lbs (2.8±0.3 Nm)
NOZZLE REASSEMBLY
•
Torque nozzle (1) to 30±3 in/lbs (3.4±0.3 Nm)
ENCLOSURE LID (Optional)
•
Anti-seize recommended on bolts
•
Torque clamps (2) to 30±3 in/lbs (3.4±3.4 Nm)
