SECTION 6. MAINTENANCE

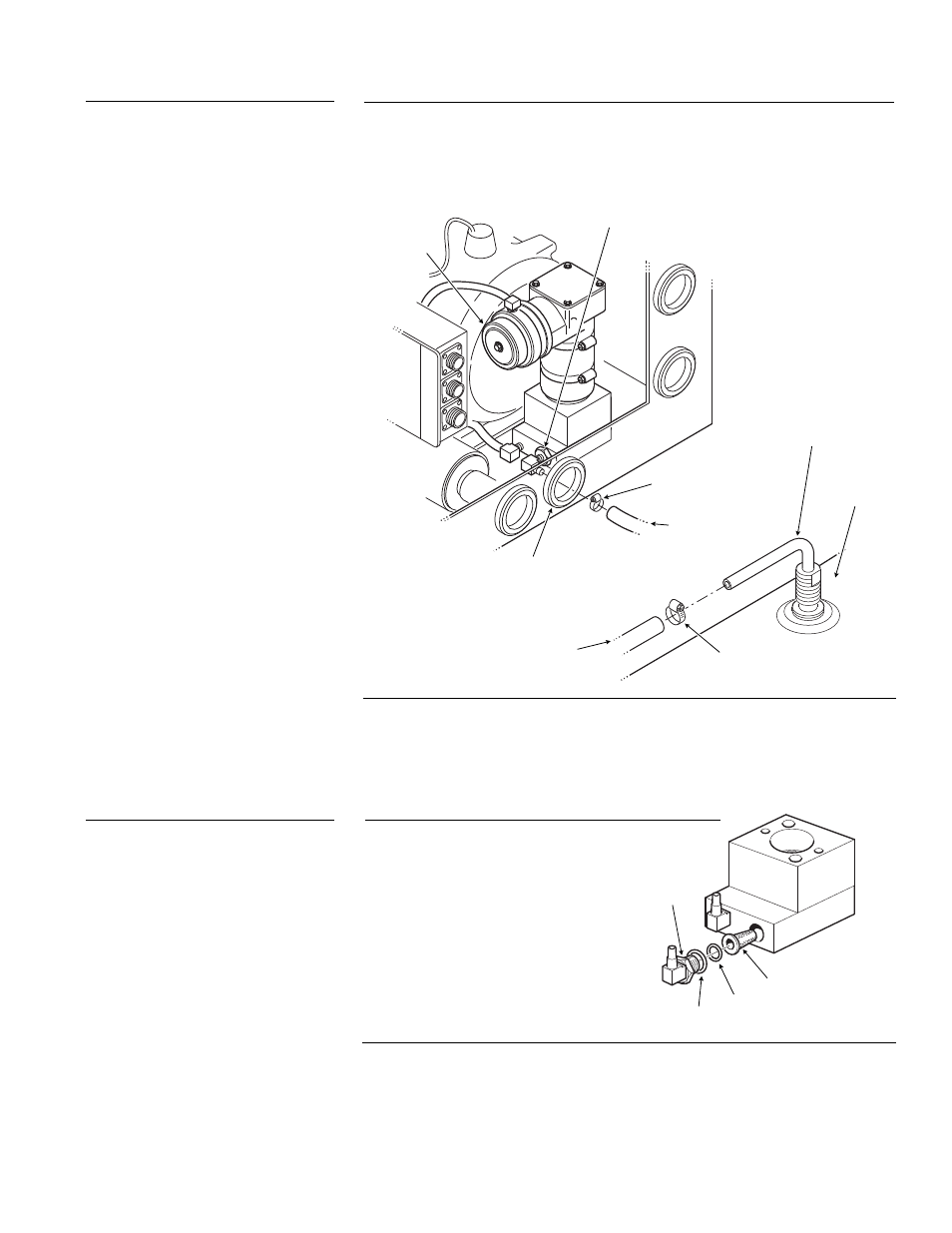

Figure 6-7 Fuel Line Clamp
HOSE CLAMP
GROMMET
FUEL LINE
AIR FILTER
FUEL FILTER
FUEL TANK
FUEL PICK UP
HOSE CLAMP
FUEL LINE
CHECK FUEL SYSTEM
• Check the fuel system for damaged fuel lines or leakage.
• Make sure the clamps on the fuel lines are secure.
• Ensure fuel lines are flexible.
CHECK FUEL FILTER
• Remove and inspect
filter. Clean or replace
as necessary.
O-RING
O-RING
FILTER
TORQUE TO
150±10 IN/LBS
(17±1.1 Nm)
Figure 6-8 Fuel Filter Components
