SER VICE BULLETIN
Copy Part# SB0062, Rev. A, 09/2011
Page 1 of 6
X45 FUEL PUMP PRESSURE
CHECK AND SERVICE

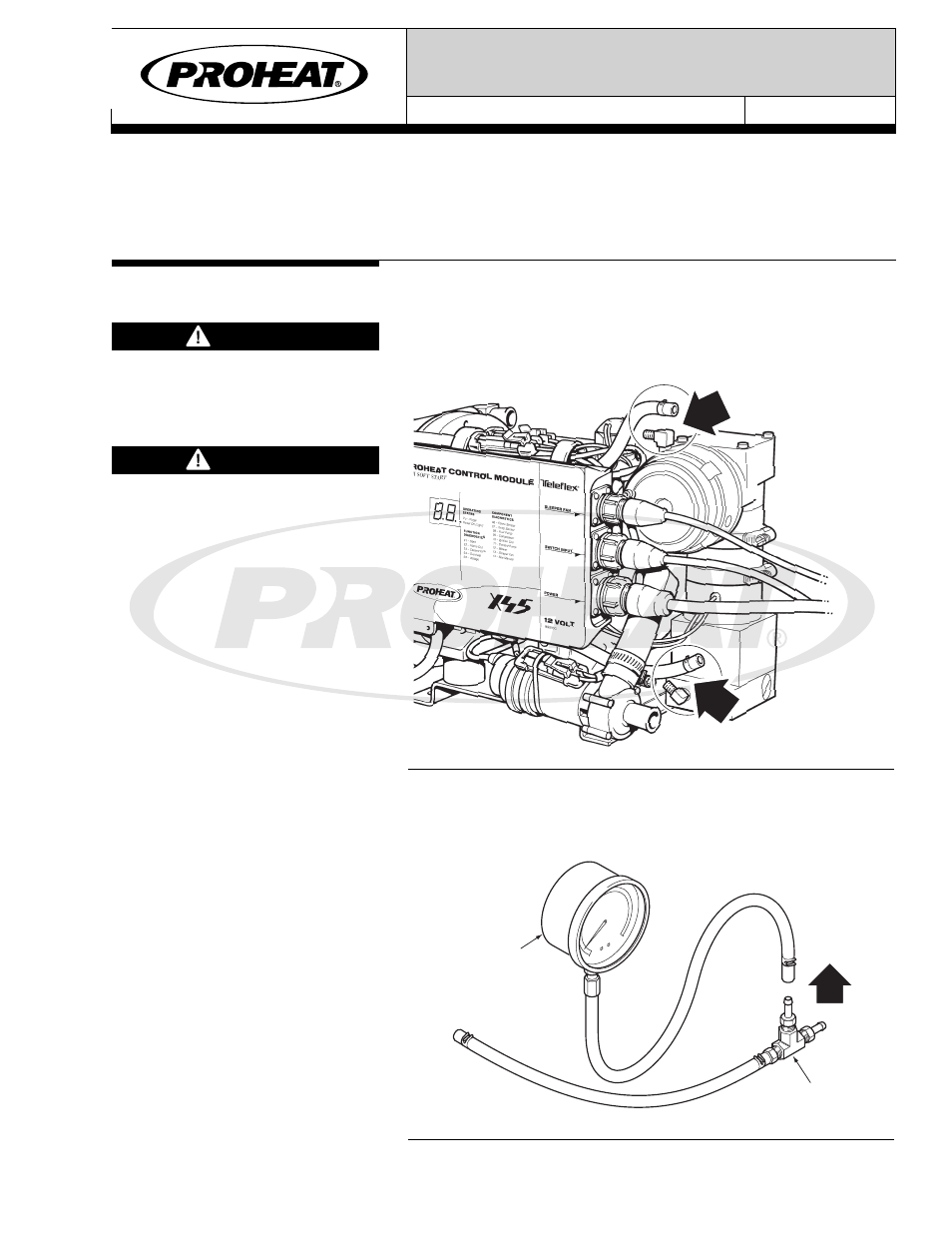

1. Disconnect power to heater.
2. Remove air compressor hose to ensure heater will not run in
full output during test.
3. Remove fuel outlet hose from fuel pump.
Installation Instructions
WARNING
To avoid the risk of shock, ensure
to disconnect power to heater unit
during disassembly/reassembly.
WARNING
Fire Hazard. Do not place any
flammable items around the heater
and exhaust pipe.
4. Remove ‘T’ fitting from test gauge PK0060.
3
2
AIR COMPRESSOR HOSE
FUEL OUTLET HOSE
Figure A.
Figure B.
4
TEST GUAGE
PK0060K
‘T’ FITTING
