ENGLISH
Chapter 1: Product Overview
DVR User’s Manual
9

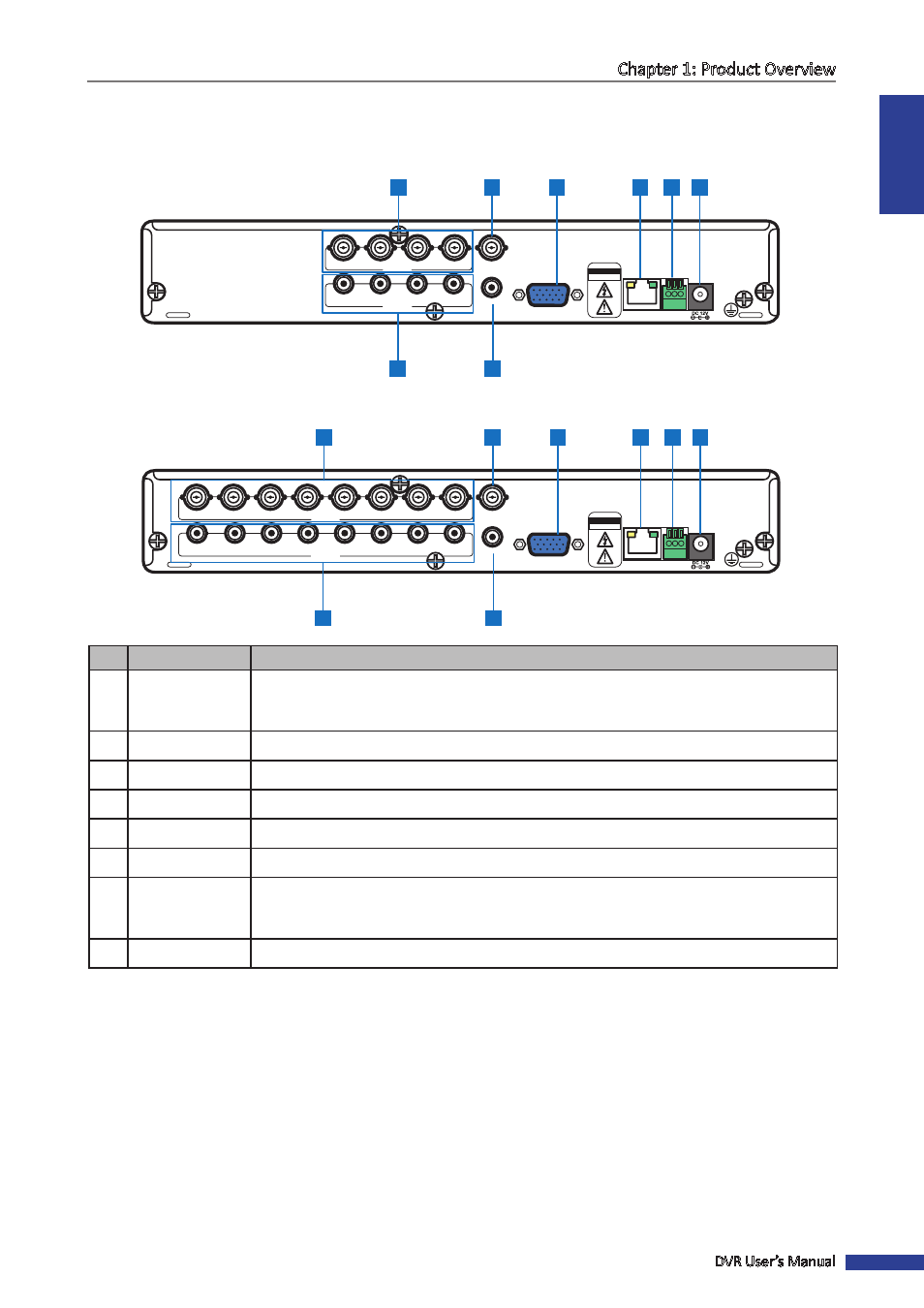

1.3.2 Rear Panel
4-Channel DVR
CH4 CH3 CH2 CH1
AIN4 AIN3 AIN2 AIN1
VIDEO OUT
VIDEO IN VIDEO IN
AUDIO OUT
AUDIO IN
VGA
A B G
NETWORK RS485
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
3 1
7 8
2 4 5 6
8-Channel DVR
CH8 CH7 CH6 CH5 CH4 CH3 CH2 CH1
AIN8 AIN7 AIN6 AIN5 AIN4 AIN3 AIN2 AIN1
VIDEO OUT
VIDEO IN VIDEO IN
AUDIO OUT AUDIO IN
VGA
A B G
NETWORK RS485
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
3 1
7 8
2 4 5 6
No. Connector Description
1 Video input
8-Channel DVR: Connects to a maximum of 8 video input devices (BNC).
4-Channel DVR: Connects to a maximum of 4 video input devices (BNC).
2 Video output Connects to a monitor output via BNC.
3 VGA output Connects to a VGA monitor.
4 LAN Connects to LAN via RJ-45.
5 RS-485 Connects to a Speeddome camera via RS-485.
6 Power Connects to the power adapter.
7
Audio input 8-Channel DVR: Connects to a maximum of 8 audio input via RCA.
4-Channel DVR: Connects to a maximum of 4 audio input via RCA.
8 Audio output Connects to an audio output via RCA.
