ENGLISH
Chapter 2: Installation
DVR User’s Manual
17

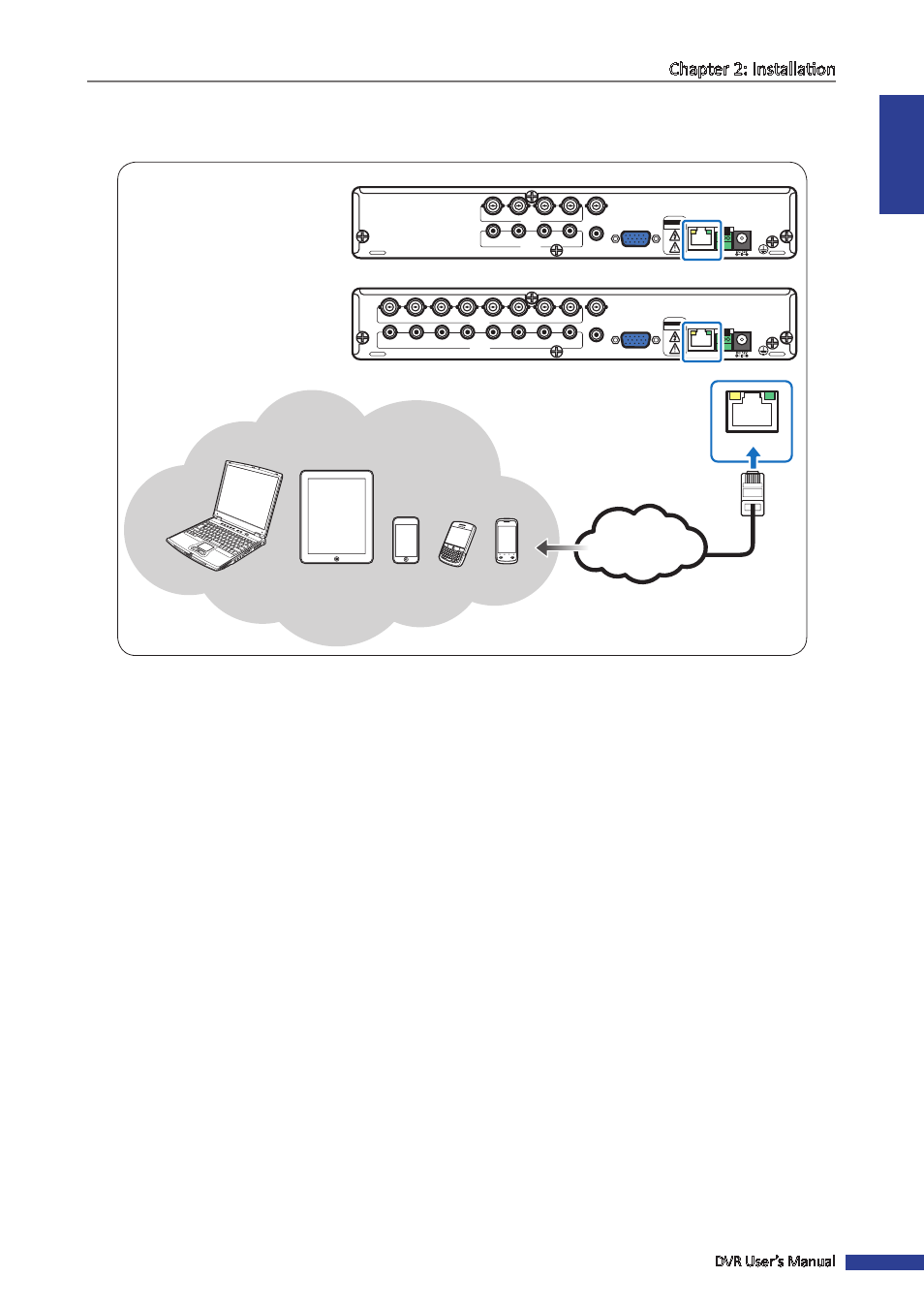

2.9 Connecting to Network
For remote monitoring, connect the DVR to the internet via wired network connection.
CH4 CH3 CH2 CH1
AIN4 AIN3 AIN2 AIN1
VIDEO OUT VIDEO IN VIDEO IN
AUDIO OUT AUDIO IN VGA
A B G
NETWORK RS485
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CH8 CH7 CH6 CH5 CH4 CH3 CH2 CH1
AIN8 AIN7 AIN6 AIN5 AIN4 AIN3 AIN2 AIN1
VIDEO OUT VIDEO IN VIDEO IN
AUDIO OUT AUDIO IN
VGA
A B G
NETWORK RS485
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
NETWORK
Internet
RJ-45 cable
Notebook/PC
Tablet PC
Mobile Phones
8-Channel DVR
4-Channel DVR
1
Plug one end of the RJ-45 cable to the LAN port on the back of the DVR.
2
Plug the other end directly into a LAN port on a router or network switch.
After connecting, configure your DVR for network communication. See “4.2 Setting the Network” on page 34 for
further details.
