Page 26

ENGLISH

Chapter 3: Getting Started

DVR User’s Manual

3.4.2 Multi Picture Mode

You can customize to view the channels on a 4-window or an 8-window display.

There are 3 multi picture mode options:

In the preview mode, right-click on the mouse to display the

Pop-up menu.

Select Multipicture, then select an option:

• CH 01-08

• CH 01-04

• CH 05-08

The selected channels will be displayed on the screen.

Note:

Options to split windows vary depending on the DVR model. Split Windows option is not available when View Setup
is enabled (see

“4.6.3 Video and Audio Settings” on page 52

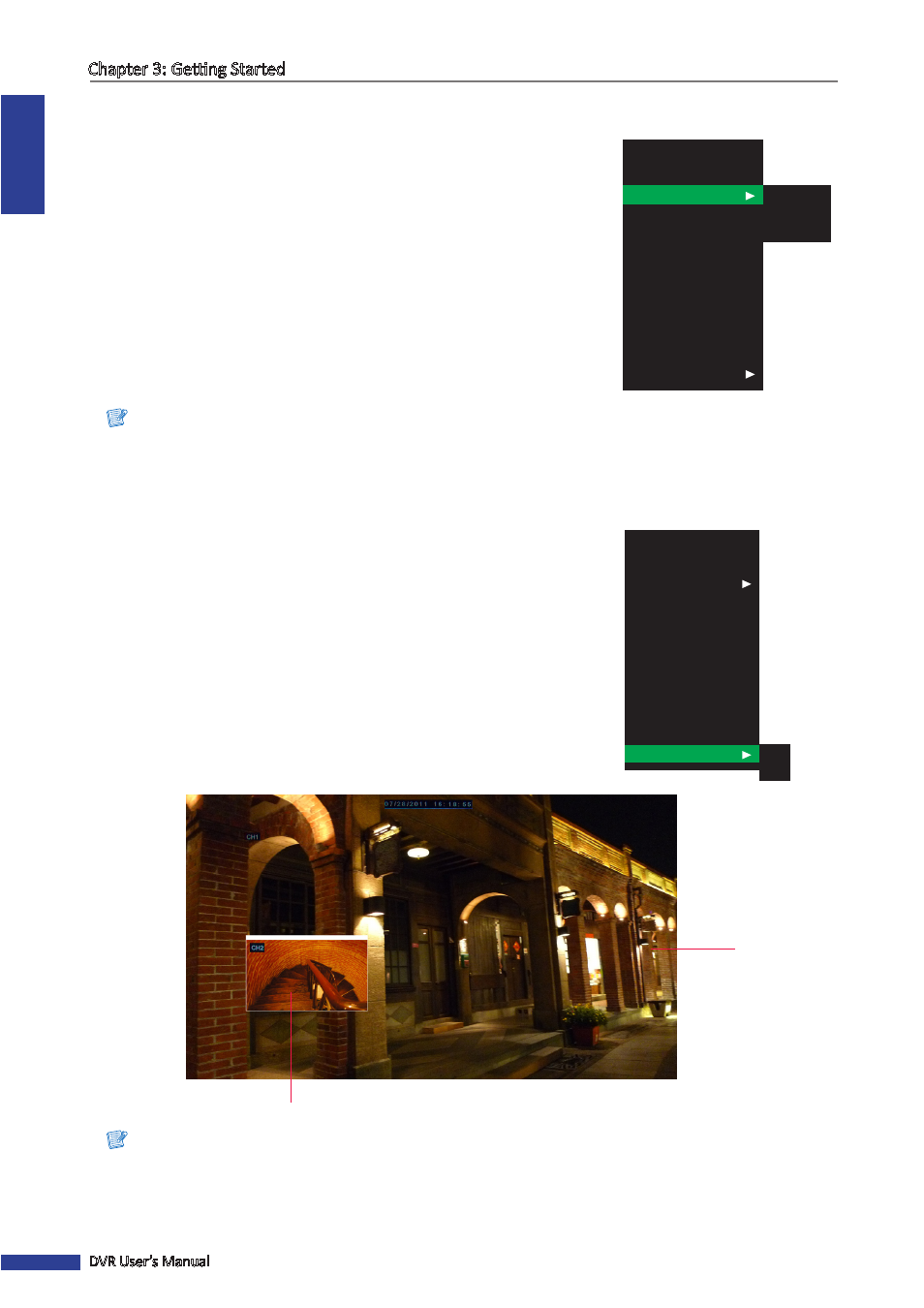

3.4.3 Picture-in-Picture (PIP) Mode

With Picture-in-Picture (PIP) mode, you can watch two more channels
to be simultaneously displayed on the first channel live preview.

In the preview mode, right-click on the mouse

to display the Pop-up menu.

Select PIP > 1 X1 or 1 X2.

An additional mini-window appears on the main screen display.

To move the mini-windows around your main screen,

click and drag it to a new position.

Second channel

For example: PIP 1 X1 mode

First channel

Note:

If you select 1 X2, two mini-window frames appear on the main screen display. This function only works if there are
more than two cameras connected to the DVR.

Main Menu

Lock

Multipicture

Record Search

Start Rotate

Start Cruise

PTZ

Mute On

Manual Record

Stop Record

PIP

CH01~08

CH01~04

CH05~08
