ENGLISH
Chapter 1: Product Overview
10
DVR User’s Manual

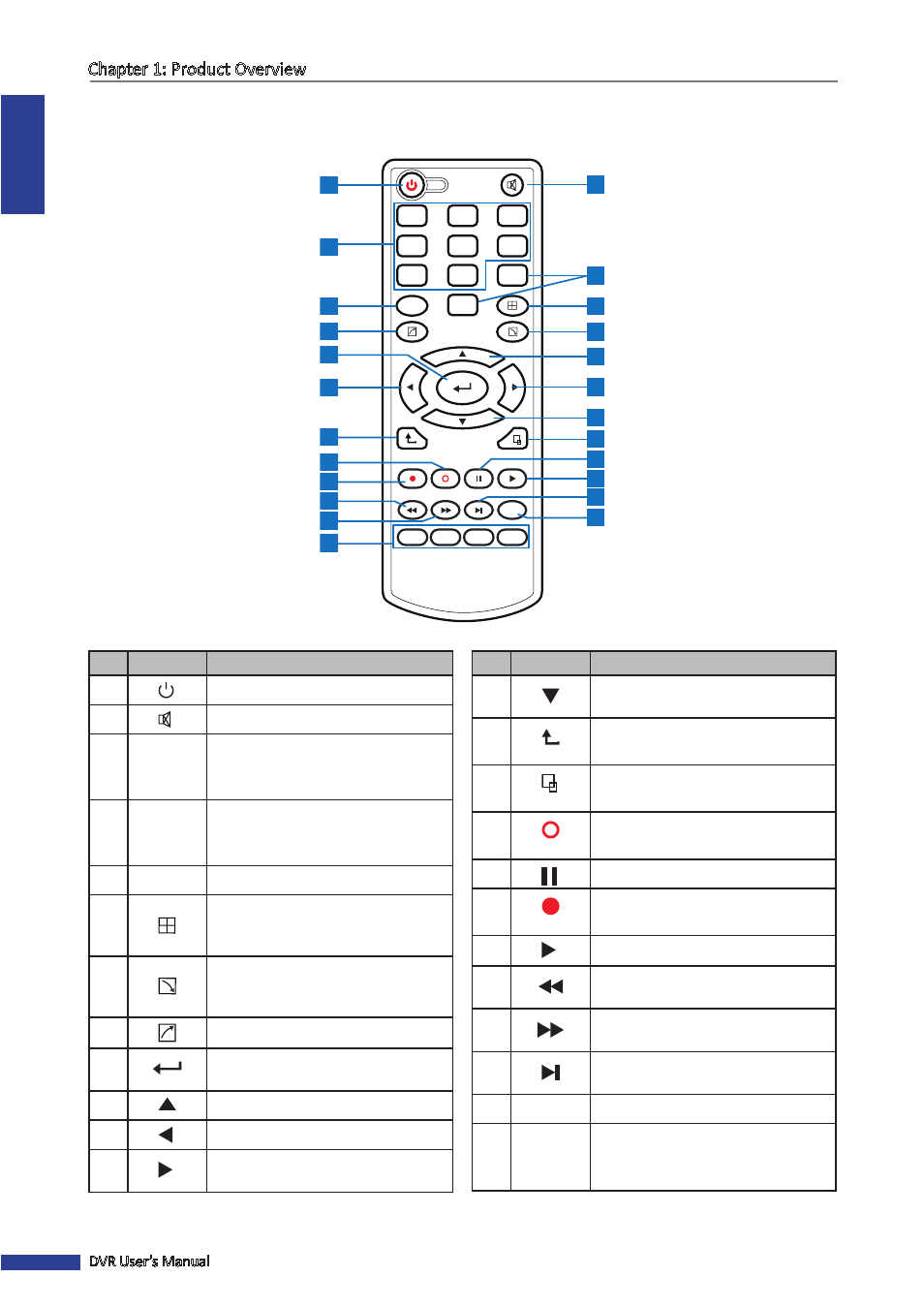

1.4 Remote Control
No. Icon Description
1 Press to start manual recording.
2 Press to turn mute on or off.
3 1-8
Numeric keys
Press to display the channel in full
screen.
4 0, 9
Numeric keys
Press ”0” key to lock or unlock the
current screen.
5 PTZ Press to configure PTZ settings.
6
Press to display a 4 x 4 channel
display. Press repeatedly to scroll to
other channels.
7
Press to display the pop-up menu.
See
“3.3.4 Pop-up Menu” on page
22 .
8 Press to close the pop-up menu.
9
Press to enter the selected menu
item and edit the setting.
10 Press to move up in the OSD menu.
11 Press to move left in the OSD menu.
12
Press to move right in the OSD
menu.
No. Icon Description
13
Press to move down in the OSD
menu.
14
ESC
Press to exit the Main Menu or the
Playback screen.
15
MENU
Press to display the Main Menu.
16
STOPREC
Press to stop recording.
17 Press to pause playback.
18
STARTREC
Press start recording.
19 Press to play recorded video.
20
Press to rewind video playback
(x2, x4, x8).
21
Press to fast forward video playback
(x2, x4, x8).
22
Press to pause video playback or
enter frame-playback mode.
23 F1 Reserved key
24 F2 Reserved keys
STARTREC
F2
F1
STOPREC
ESC MENU
1 2
4 5 6
9 7 8
0
3
PTZ
2
6
8
12
10
13
15
17
19
23
22
4
1
3
5
7
9
11
14
16
18
20
24
21
