Chapter 1: Product Overview
8
DVR User’s Manual
1.3 Parts and Functions

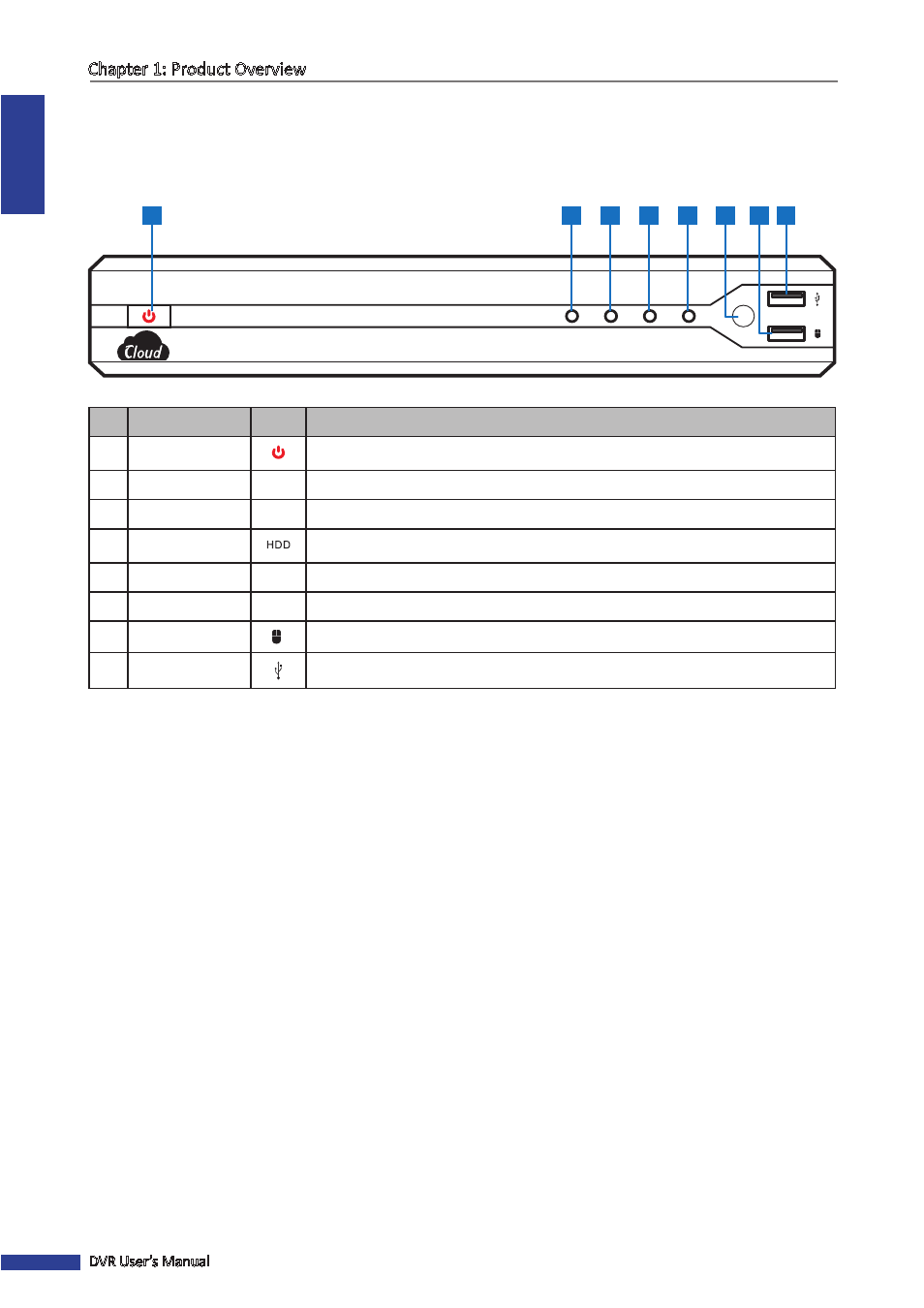

1.3.1 Front Panel
PWE LINK HDD REC
K GUARD
SECURITY
8 Channel H.264 Digital Video Recorder
2 1 3 4 5 8 67 66
No. Item Icon Description
1 Power Button Press the button to turn the DVR on or off.
2 Power Indicator PWE Lights green to indicate the power is turned on.
3 Link Indicator LINK Lights amber to indicate a link is established.
4 HDD Indicator Lights red when the HDD is being accessed.
5 Record Indicator REC Lights red when recording is in progress.
6 IR Receiver - Receives the remote control signals.
7 USB Mouse Port Connects the USB mouse.
8 USB Port Connects other USB memory devices such as a flash disk.
