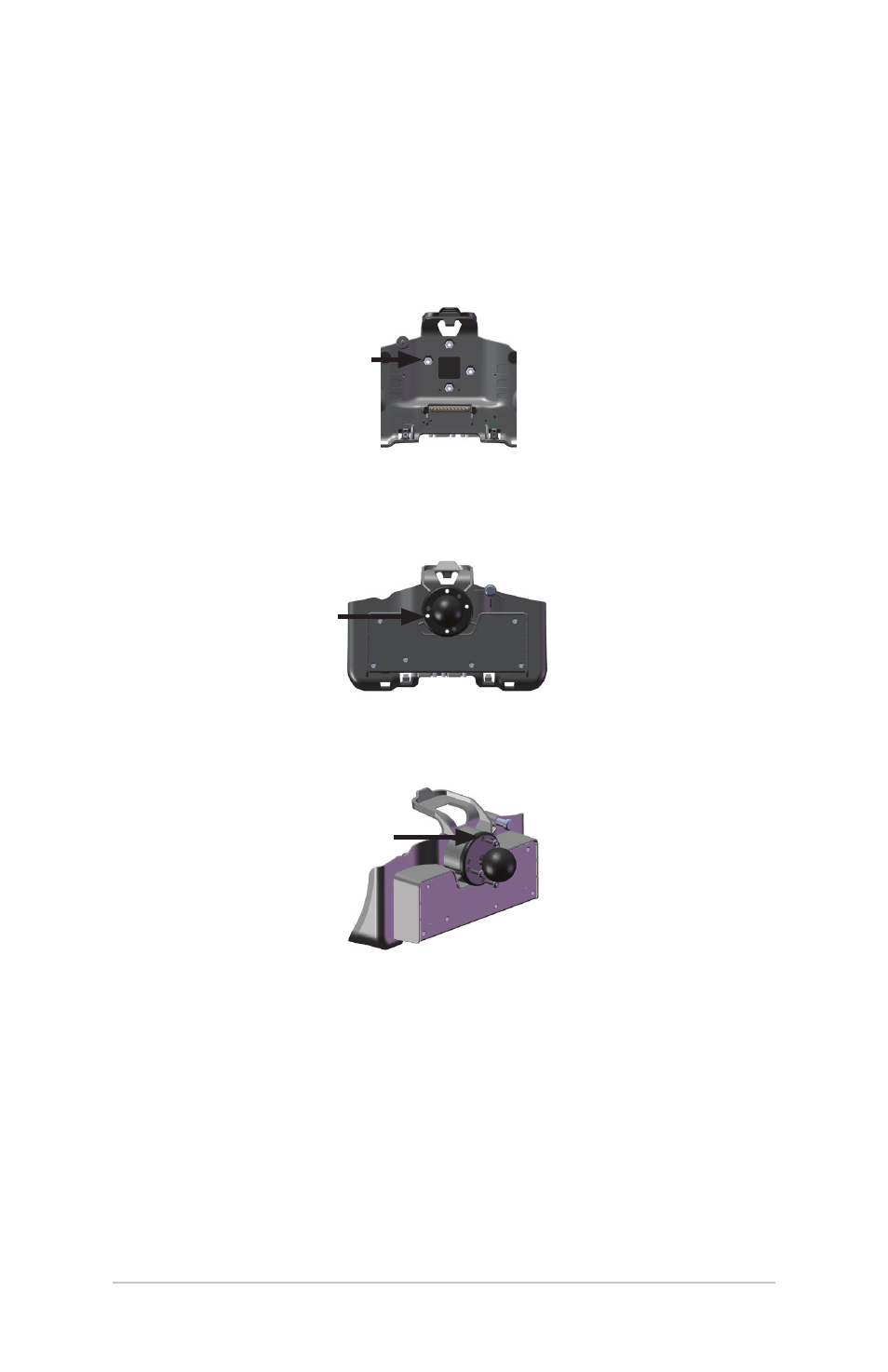

Installing the vehicle mount:
1. From the front of the dock you see four hex holes. Press a
nut into each hole. Use a screwdriver or similar object to
press them firmly into place.
2. From the back of the dock, align one of the RAM Mount
bases with the screw holes.
3. Insert the four screws into these holes, screw them in all
the way, and tighten them.
Appendix C Charging and Docking Accessories
99
