Mesa Rugged Notepad Owner’s Manual
Mesa Mobile Dock
The Mesa Mobile Dock is an optional accessory that provides a
mounting station for the Mesa Rugged Notepad and additional
communication options.
Note: The Mesa Mobile Dock is not functional as a stand alone device.
It requires the Mesa to be functional. For example, it is not a stand
alone powered USB hub.
Communication Options
The mobile dock provides additional communication ports for
use with sensors and other external devices, supplementing the
ports on the Mesa. Some Mesa ports are still accessible.

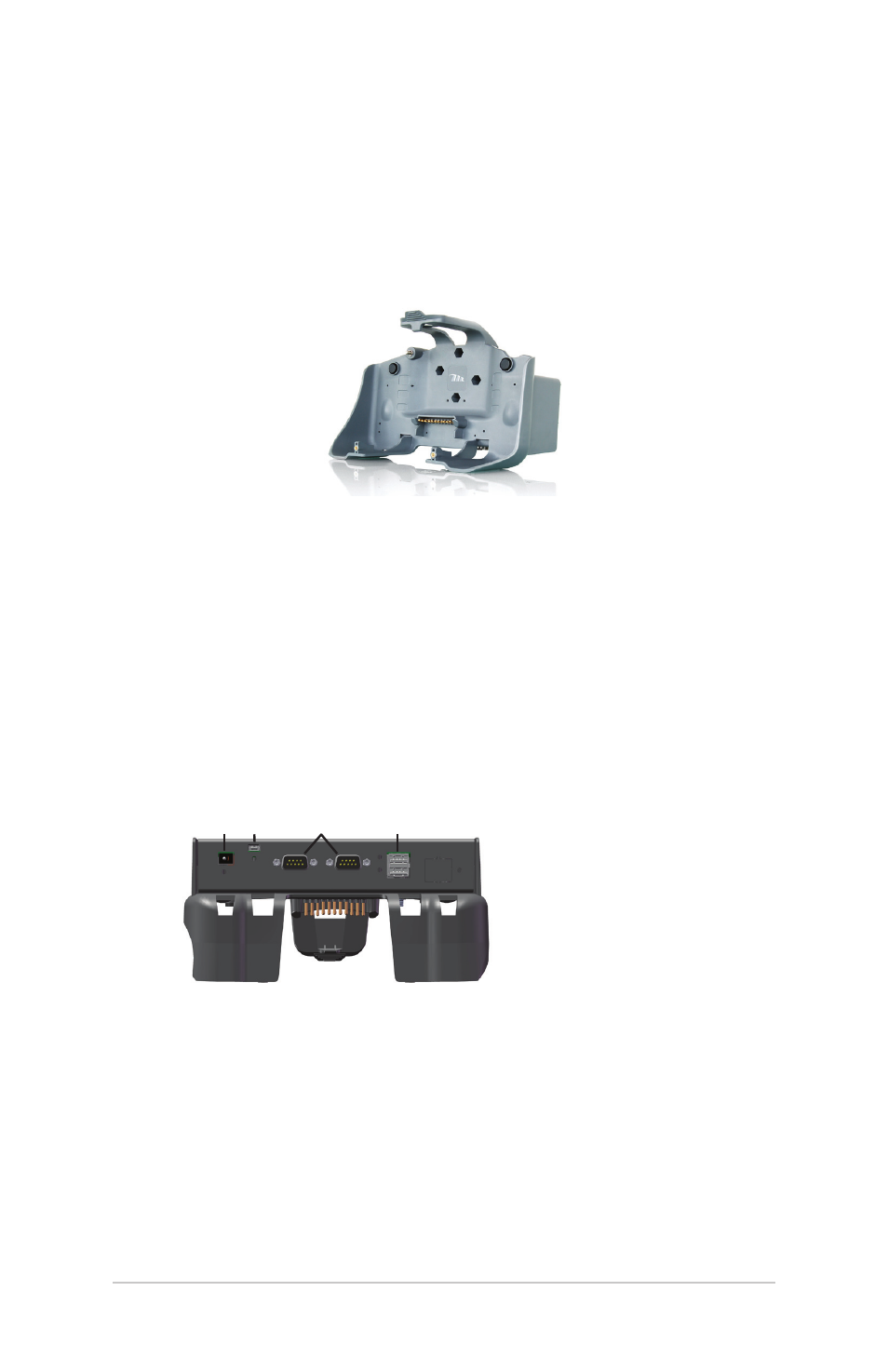

Bottom view of mobile dock showing the ports:
1. Power input jack, 12VDC for power input and battery
charging: This jack is used to power the mobile dock and
the Mesa. The power port on the Mesa is not accessible
when it is in the mobile dock.
1 12V DC power input
jack
2 USB client
3 RS-232 serial ports
4 USB host ports
1 2
3
4
