Juniper Systems Mesa User Guide User Manual
Page 67
Ch 7 3G Data Modem
67
3. Remove the battery pack.
CAUTION:
The Mesa is not totally sealed against water
and dust when battery doors are not installed and properly
latched.

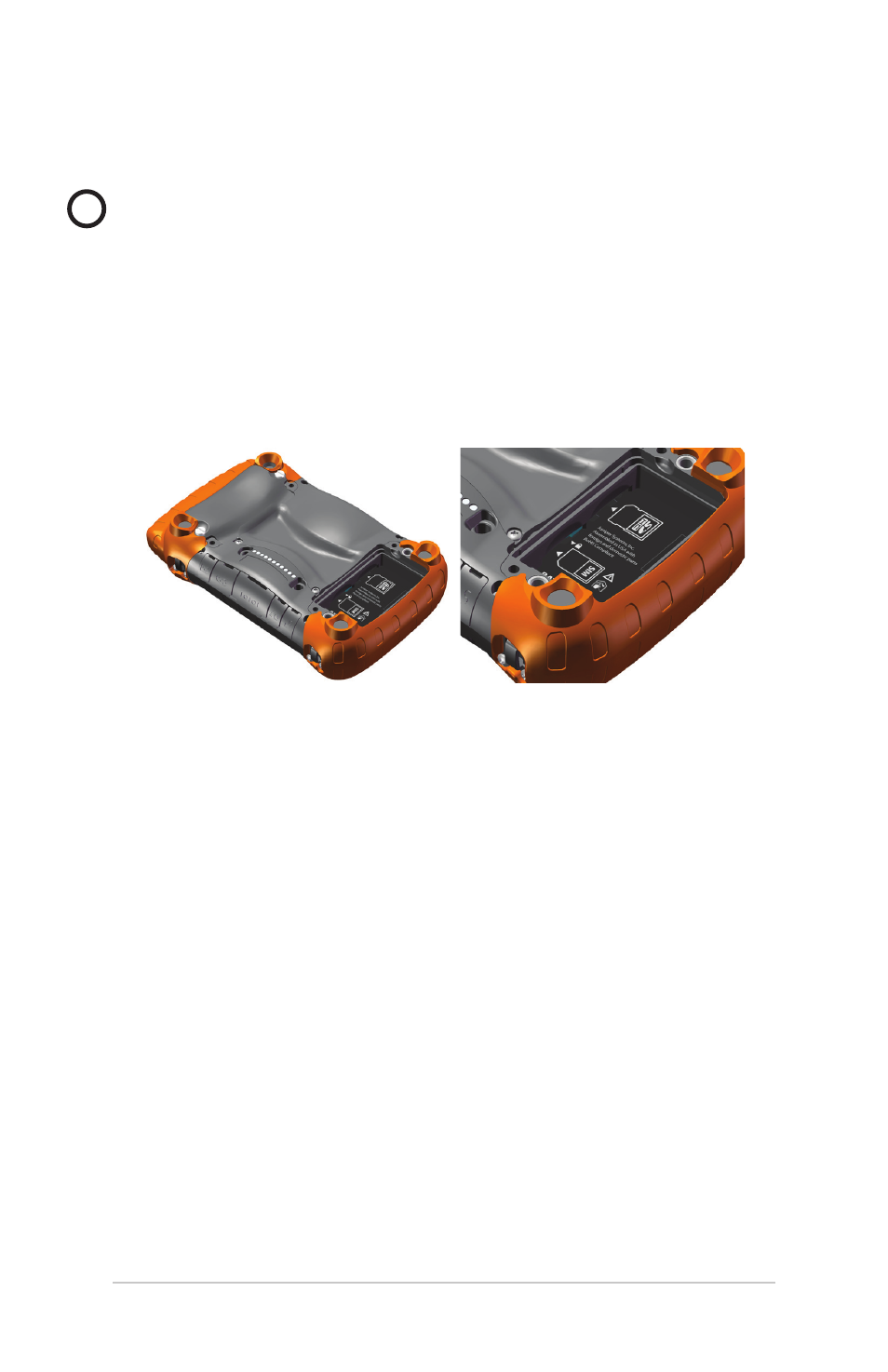

4. An image on the battery compartment label shows the
correct location and orientation for the SIM card. Push the
card into the slot until it catches. To the right of the slot is a
latch to help hold the card in place. Slide it to the left over
the right end of the card towards the lock icon.
To remove the SIM card, slide the latch to the right. Press
and release the card to partially eject it. You may need
tweezers or needle-nose pliers to grab hold of the card to
remove it.
5. Replace the battery pack and attach the battery door.
6. Resume or power on the Mesa.
Note: If the modem was on before shutting the Mesa down to
insert the SIM card, you are prompted to configure the data
connection when you reboot. See the instructions on the following
pages.
!
