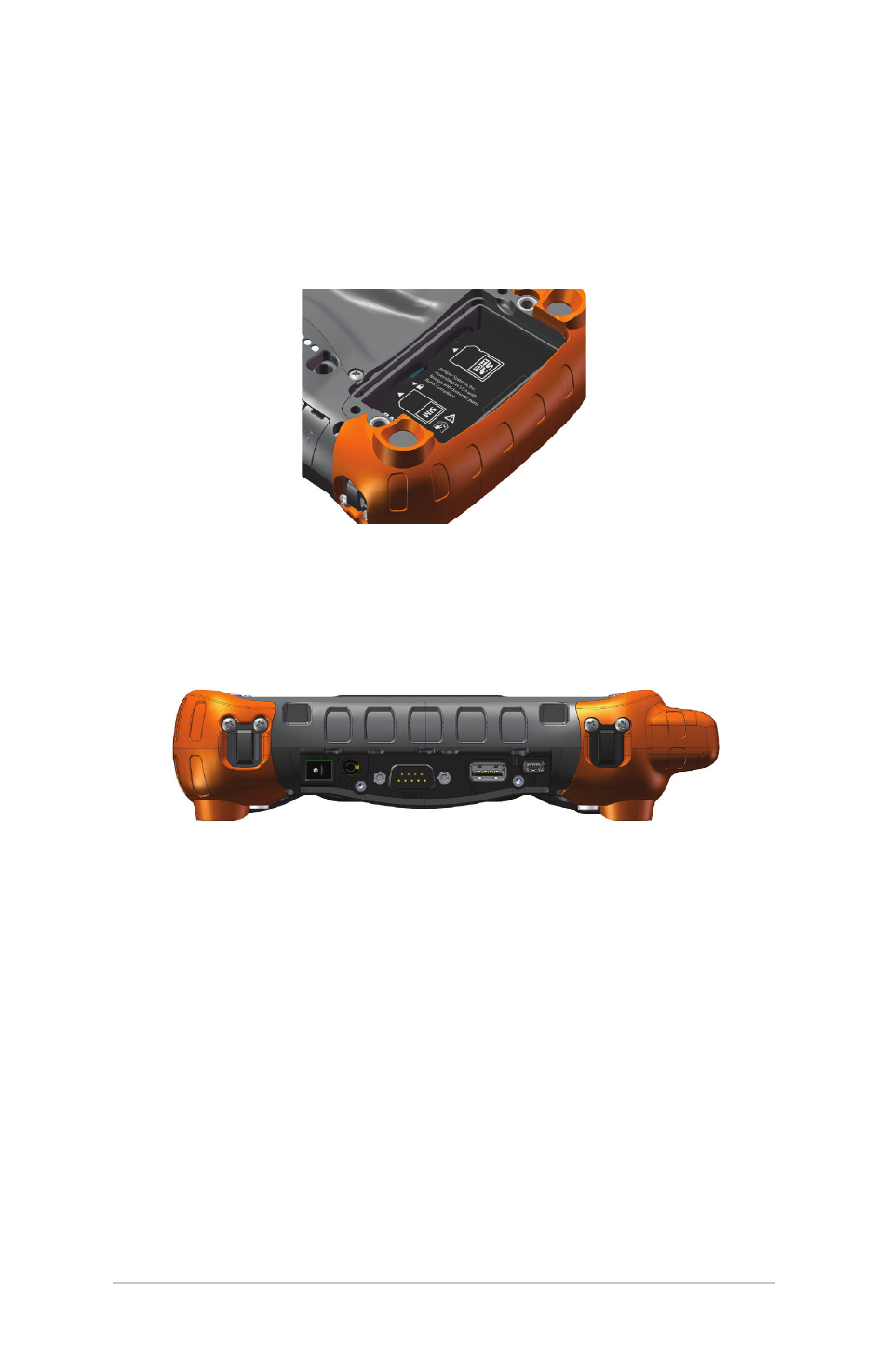

4. An image on the battery compartment label shows the
correct location and orientation for the card. Push the SD
card into the slot to insert it. To remove an SD card, push it
into the slot then release it to eject the card.
5. Replace the battery pack and attach the battery door.
6. Resume the Mesa if it was suspended in step 1.
Connector Module
The Mesa has the following jacks and connectors:
Power input jack, 12 VDC for power input and battery
charging
Microphone/Speaker jack: 3.5mm, supports speaker/mic or
stereo output (speaker cutoff)
RS-232C 9-pin D-sub connector, 5 V @500 mA available on
DTR pin 4 and pin 9 under program control
USB host, full size A
USB client, mini B
The connector module is user-replaceable. A connector
protector covers the ports to keep debris out.
Ch 2 Hardware Components
27
