Page 20
20
Mesa Rugged Notepad Owner’s Manual
The display has a minimum brightness setting that it dims
to when the Mesa is not in use. Power is conserved, yet the
display is still partially visible. Adjust the dim time interval
and setting as needed. To use the Mesa, tap on the display to
bring the display backlight back up to the brightness setting.
Note: The Mesa can be set up in subdued lighting (tactical) mode.
Refer to Chapter 3 for instructions.
Keypad Features

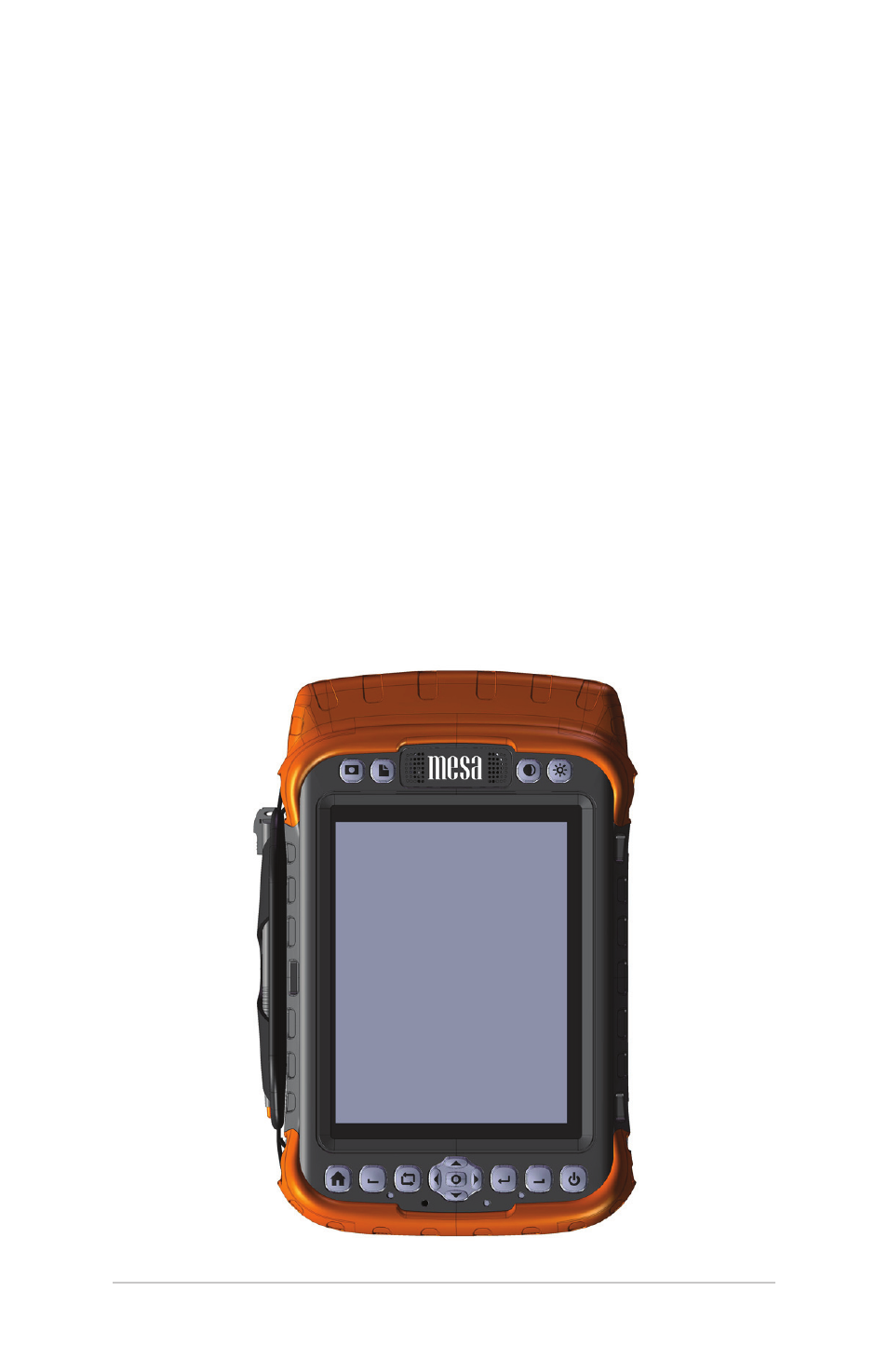

The Mesa has fifteen buttons with symbols indicating their
functions as shown below. Features include:
Top row: four function buttons
Bottom row: eleven navigation buttons
Six reassignable button functions
Buttons are sealed and backlight illuminated
