Juniper Systems Mesa User Guide User Manual
Page 101
The mobile dock is connected to a key switched battery port of the
vehicle. The vehicle power is not depleted by the Mesa when
the vehicle is turned off.
Wall Mount
You can mount the mobile dock to a wall. Use 2 size 8 wood
screws and attach the dock to a wall stud or plywood panel.
Attaching the Mesa to the Mobile Dock
Follow these instructions to place the Mesa into the mobile
dock:
1. Attach the connector protector to the Mesa and close the
individual port covers so the Mesa docks properly. If the
hand strap is in the way, remove or move it.

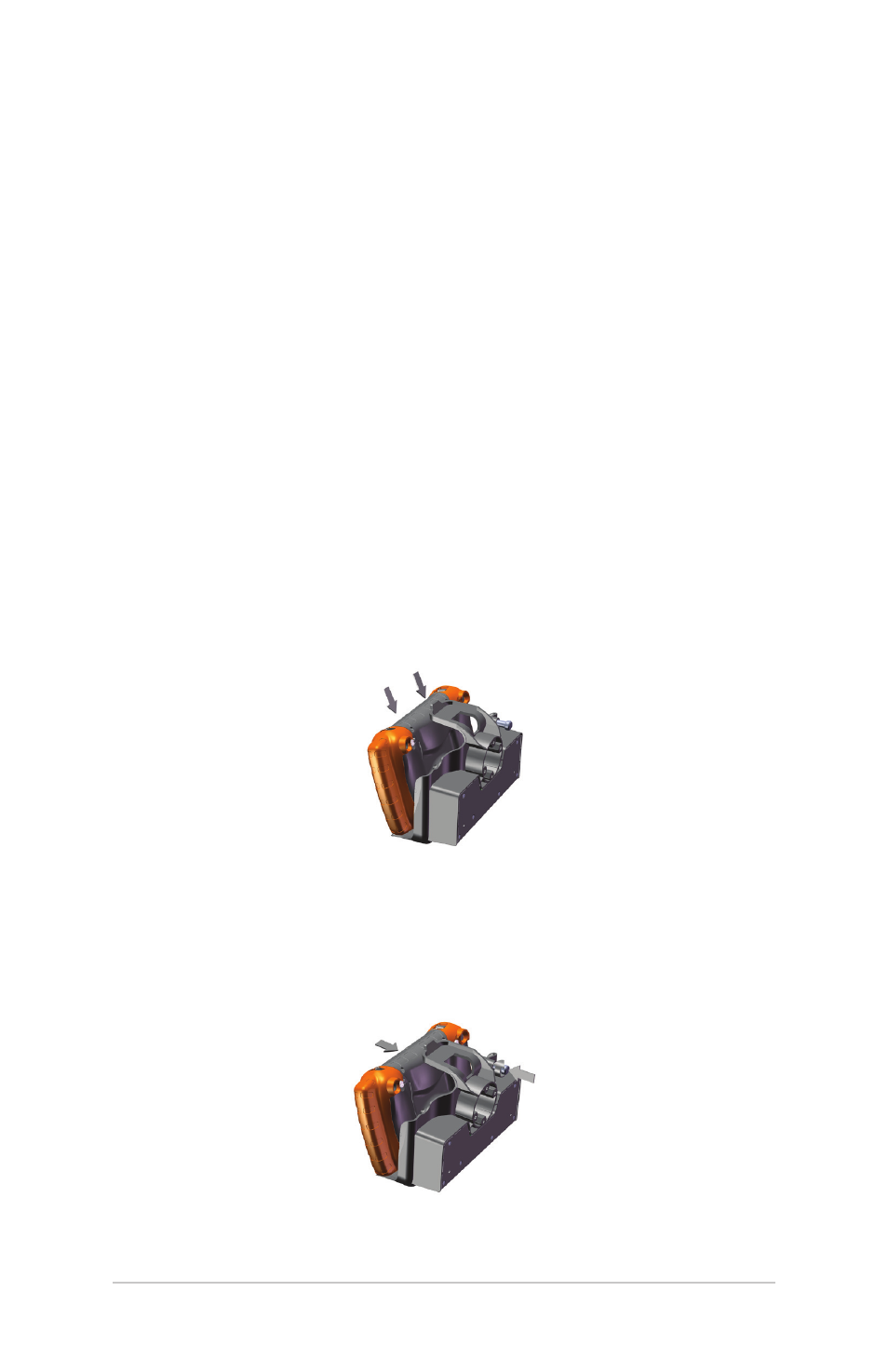

2. Hold the Mesa so the connector protector is at the bottom.
Align the Mesa with the lower mounting points on the
mobile dock.
3. Press the Mesa back to secure it to mobile dock. The top
latch snaps into place.
Note: Tighten the security bolt when the mobile dock is used in a
vehicle.
Appendix C Charging and Docking Accessories
101
