40 Chapter 1: Introduction to the EIU
297-8991-910 Standard 03.01 August 1999
is in 21R), the cards in the MS at the other end of the link must also be
provisioned in slot 21. This example is shown in figure 9.

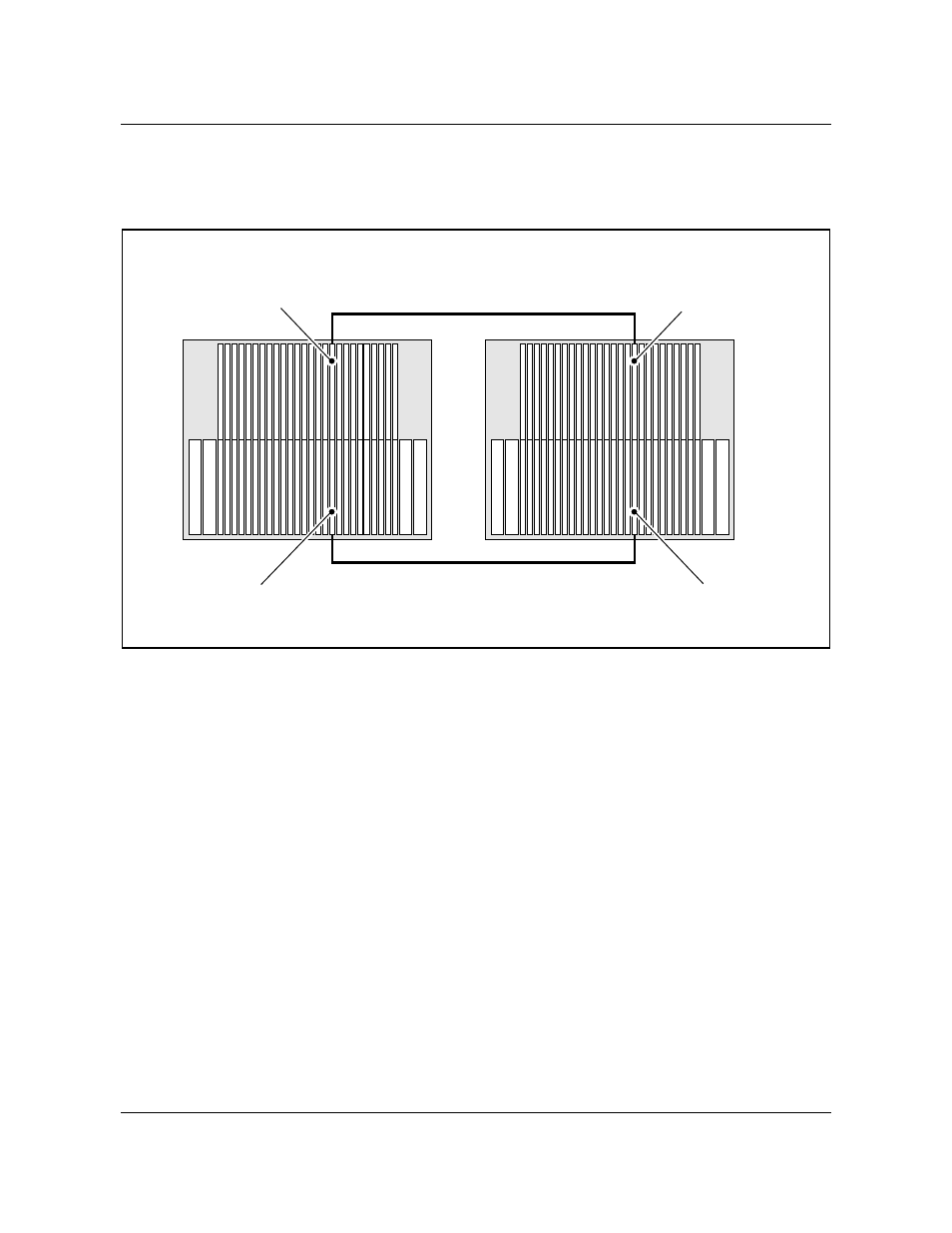

Figure 9 Example of DMS-bus intermessage switch configuration
The following cards must also be provisioned on each switch:
• a minimum of 16 Mbyte of memory using one of the following card
configurations:
— one NT9X13DB CPU card and one NT9X14DB memory card
— one NT9X13NA CPU card
• one NT9X49CB MS tracer card
DMS-bus external MS provisioning
Just as the SuperNode core requires access to the DMS-bus, so do peripherals.
Therefore, DMS-bus port engineering is required.
MS
Intermessage switch link
Intermessage switch link
NT9X17DA port card
NT9X20BB DS512
fiber paddle board
NT9X17DA port card
NT9X20BB DS512
fiber paddle board
MS
