NX-590NE Internet Interface Installation Manual 7

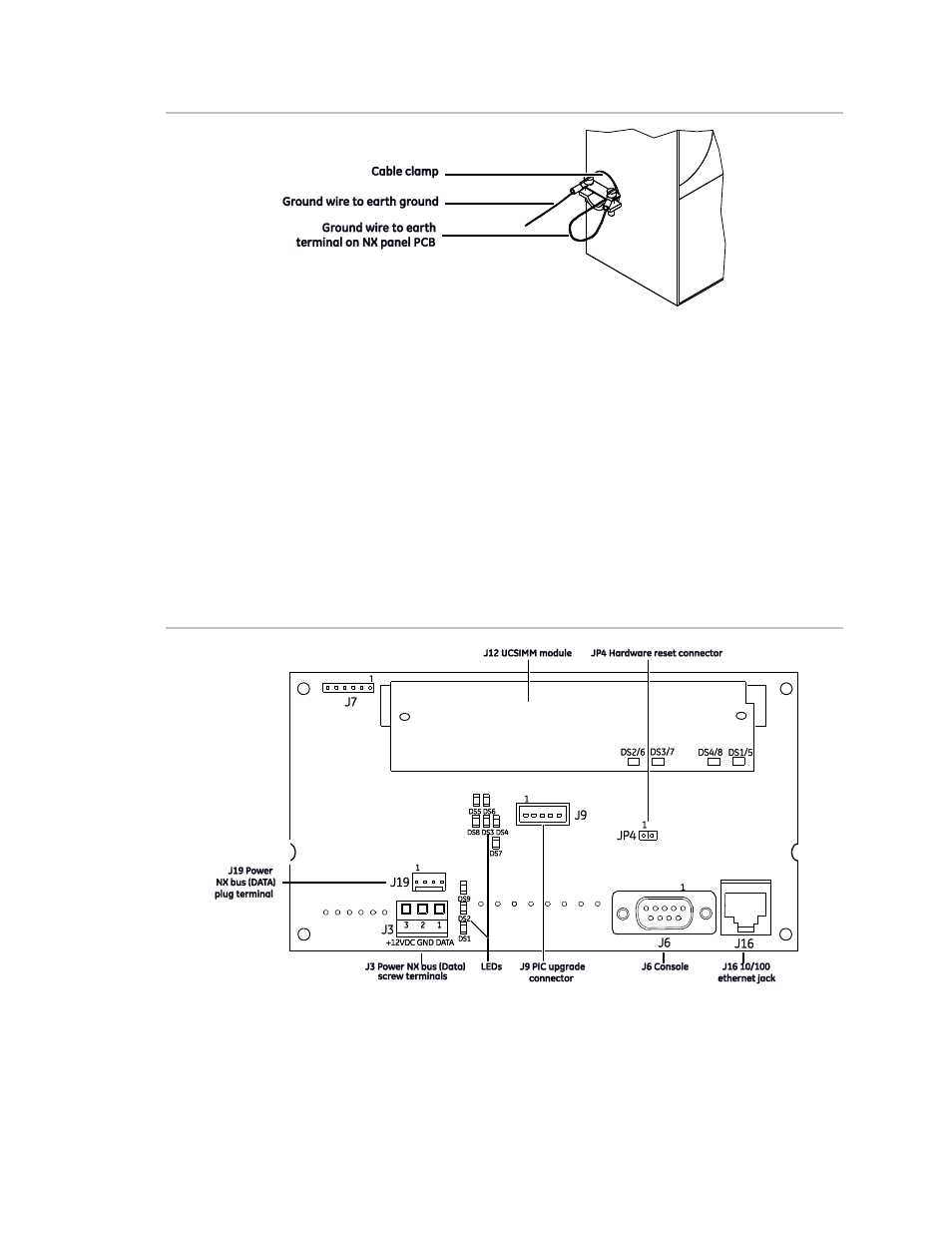

Figure 2: Earth ground terminals
Ferrite installation
• Prior to connecting the network cable to the NX-590NE PCB, install the ferrite
provided onto the network cable. Loop the cable two times through the ferrite.
We recommend that you locate the ferrite inside the NX panel at the entrance
to the network cable (see Figure 1 on page 6). An alternative location is
directly outside the enclosure at the entrance of the network cable.
Note: When routing wire inside the NX panel, do not place wiring on, or near,
the NX-590NE UCSIMM PCB.
Figure 3 below shows the NX-590NE board.
Figure 3: NX-590E board
To wire the board, see Figure 3 above and do the following:
1. Use the J16 10/100 ethernet jack to connect to the ethernet cable.
