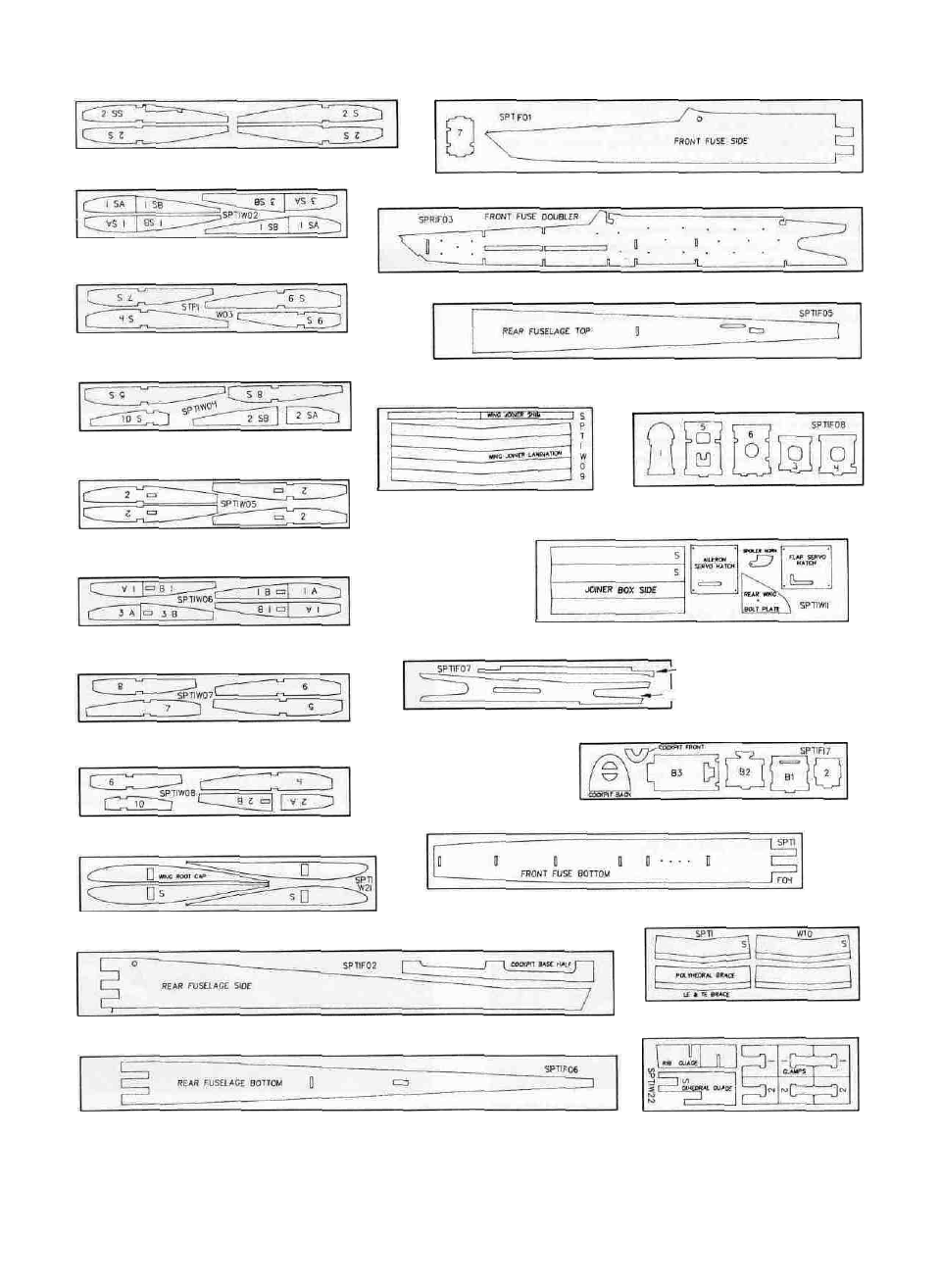

DIE PATTERNS

SPT1W01 4 PER KIT SPT1F01 2 PER KIT

SPT1W01

BALSA 1/16- X 2-6/8" X 1/8"

SPT1W02 2 PER KIT

BALSA 1/8" X 4" X 24"

BALSA 1/8" X 2-6/8" X 16"

SPT1W03 2 PER KIT

BALSA 1/16" X 2-5/8" X 16"

SPT1F03

2 PER KIT

BALSA 3/32- X 3-1/2" X 27"

SPT1F05

1 PER KIT

SPT1W04

2 PER KIT

BALSA 3/32" X 3" X 22"

SPT1W09 1 PER KIT

BALSA 1/16" X 2-6/8" X 16-

SPT1W06

4 PER KIT

SPT1F08

1 PER KIT

PLY 1/8" X 4- X 12"

PLY 1/16" X 4-1/2" X 12"

SPT1W11 2 PER KIT

BALSA 1/16" X 2-6/8" X 16"

SPT1W06

2 PER KIT

PLY 1/16" X 4-1/2" X 18"

BALSA 1/8" X 2-6/8" X 16"

2 PER KIT

SPT1F07

WING SADDLE TRIPLER

SPT1W07

2 PER KIT

REAR FUSE DOUBLER

BALSA 3/32" X 2-6/8" X 16"

SPT1F17

BALSA 1/16" X 2-6/8" X 16"

SPT1W08 2 PER KIT

1 PER KIT

PLY 1/8" X 3" X 16"

1 PER KIT

BALSA 1/16" X 2-6/8" X 16"

SPT1W21 1 PER KIT

SPT1F04

PLY 1/8" X 3" X 21"

SPT1W10

2 PER KIT

BALSA 1/16" X 3" X 18"

2 PER KIT

SPT1F02

PLY 1/32" X 3-3/4" X 12"

SPT1W22 1 PER KIT

BALSA 1/8" X 3-1/2" X 30"

SPT1F06

1 PER KIT

BALSA 3/32" X 3" X 30"

PLY 1/8" X 4- X 12"
