E01-11069

NOTES 1. Any Bit No. shaded and filled with vacant in the Address tables on the

following pages will be disregarded even if it is SET or RESET. (However, if ever
SET, it will not result in an error.)

2. The Initial Status of each Bit is indicated by a dotted frame such as:

[______ j

If you have never changed the Bit statuses in the Address before, the Initial Status

is active. Therefore, only the Bit status changes of the required Addresses may
be entered. If an All Memory Clear is operated (refer to Chapter “26. Status

Clear and Memory Clear Operations”), all the Bits in all the Address

automatically regain the Initial Status.

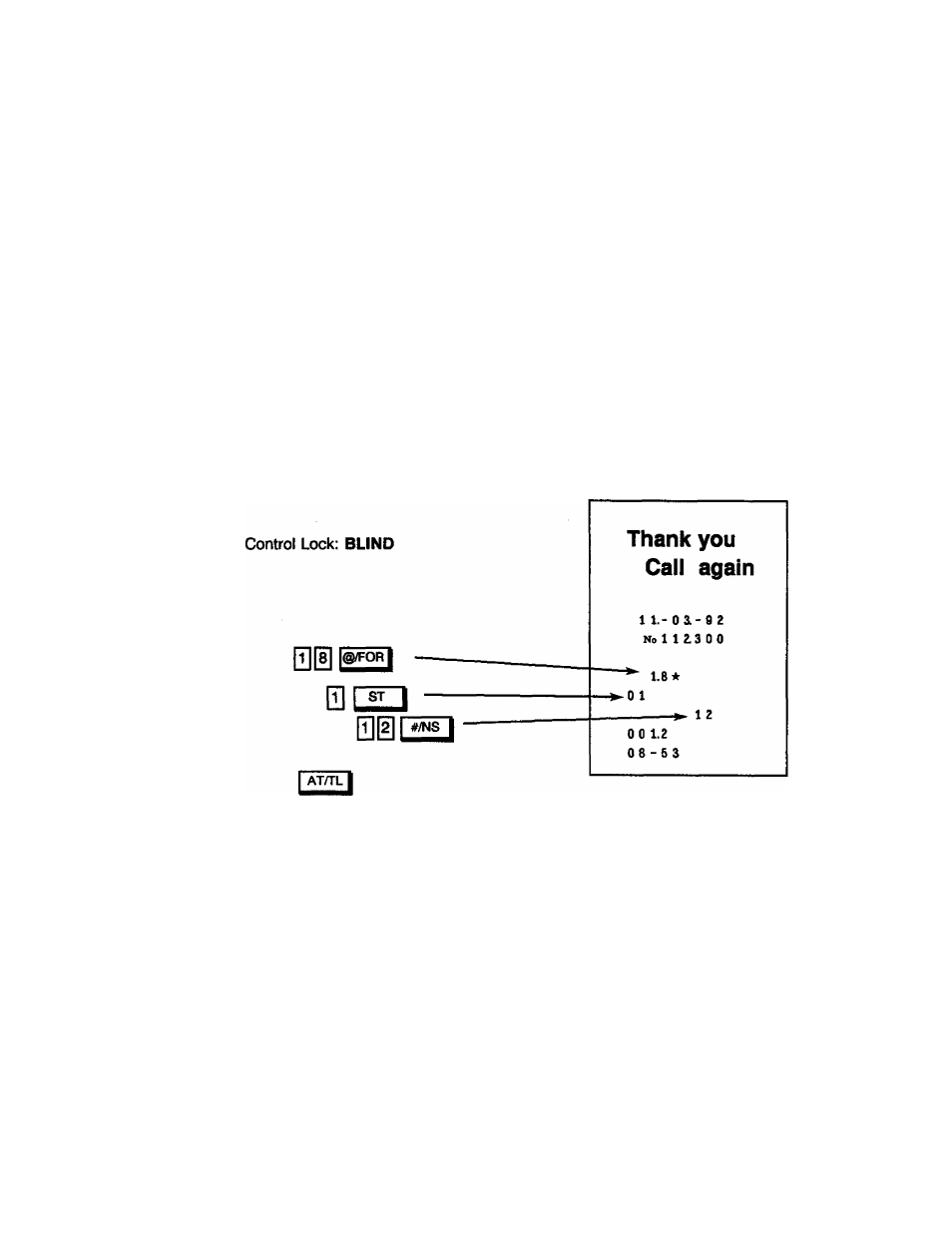

Programming Example) To select the following options:

Address 1 (refer to the next page)

Bit 1:

Time NON-PRINT (SET status)

Bit 2:

Purchased Item Count NON-PRINT (SET status)

Other Bits are to be all RESET (PRINT)

-109-
