CHAPTER 5
CONNECTING OTHER EQUIPMENT
External Equipment
Connections
(continued)

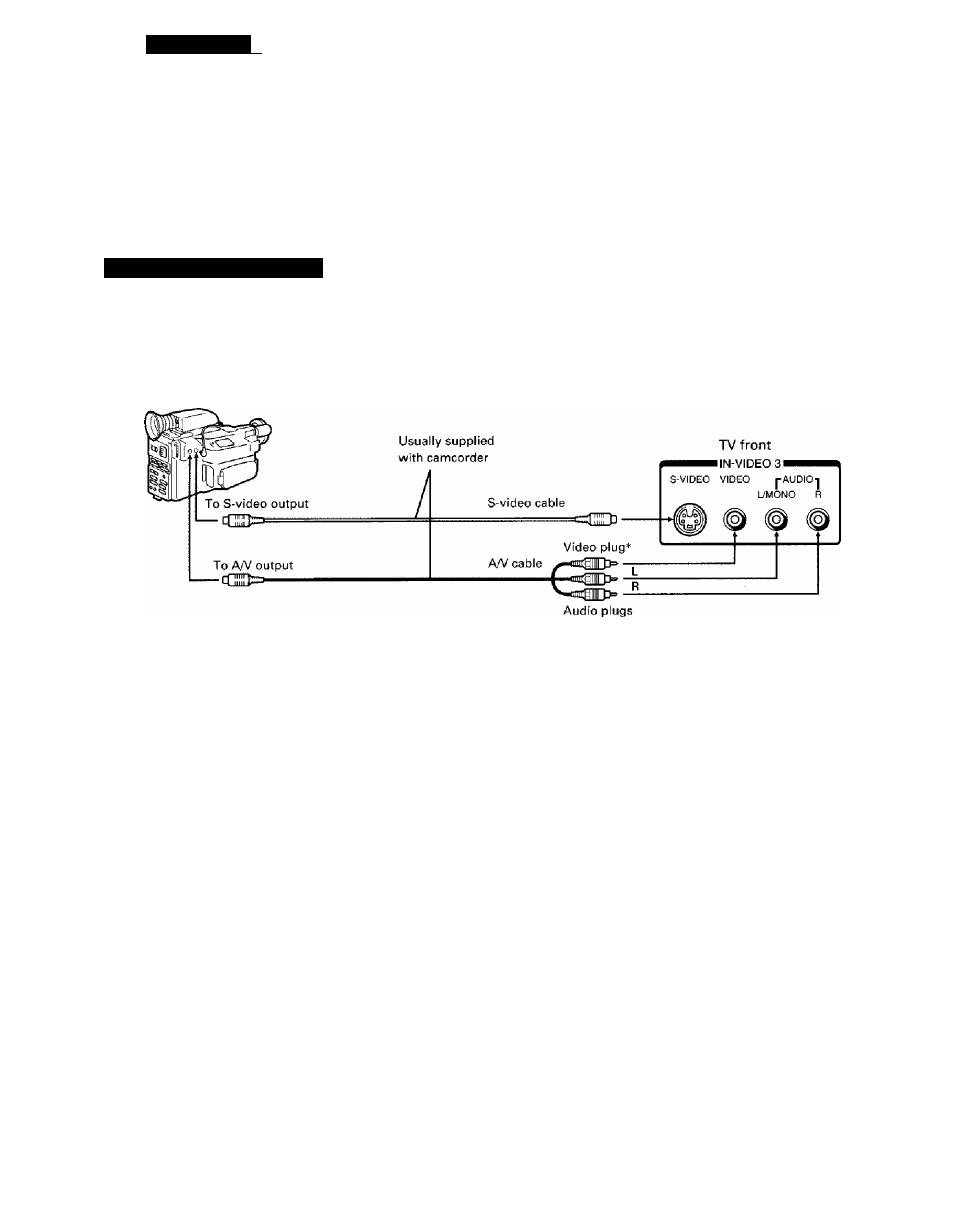

To connect a camcorder
This connection allows you to play back tapes in the camcorder and watch them on the TV.
—If you have a camcorder with an S-video ¡ack, connect the S-video cable to the S-VIDEO INPUT jack of the "VIDEO 3
INPUT" jacks.
—If you have a standard camcorder, connect the video cable to the video jack of the "VIDEO 3 INPUT" jacks.
With either video connection, connect the audio cables.
Camcorder
ec
ui
X
3
il
ui.^
o
o
o uj
To select video input source
To operate your TV normally, see instructions supplied
with the connected camcorder.
1
2
Turn on the TV and the camcorder.
Press
TV/VIDEO on the Remote Control or ANT/
VIDEO on the TV to select "VIDEO 3" in the input
source selecting mode.
Operate your camcorder normally.
Notes:
* When the S-video cable is connected to the S-video
INPUT jack, the video plug does not have to be
connected.
• If you connect a monaural camcorder, connect the
audio output of the VCR to the L/MONO jack of the
VIDEO 3 INPUT jacks on the TV.
64
