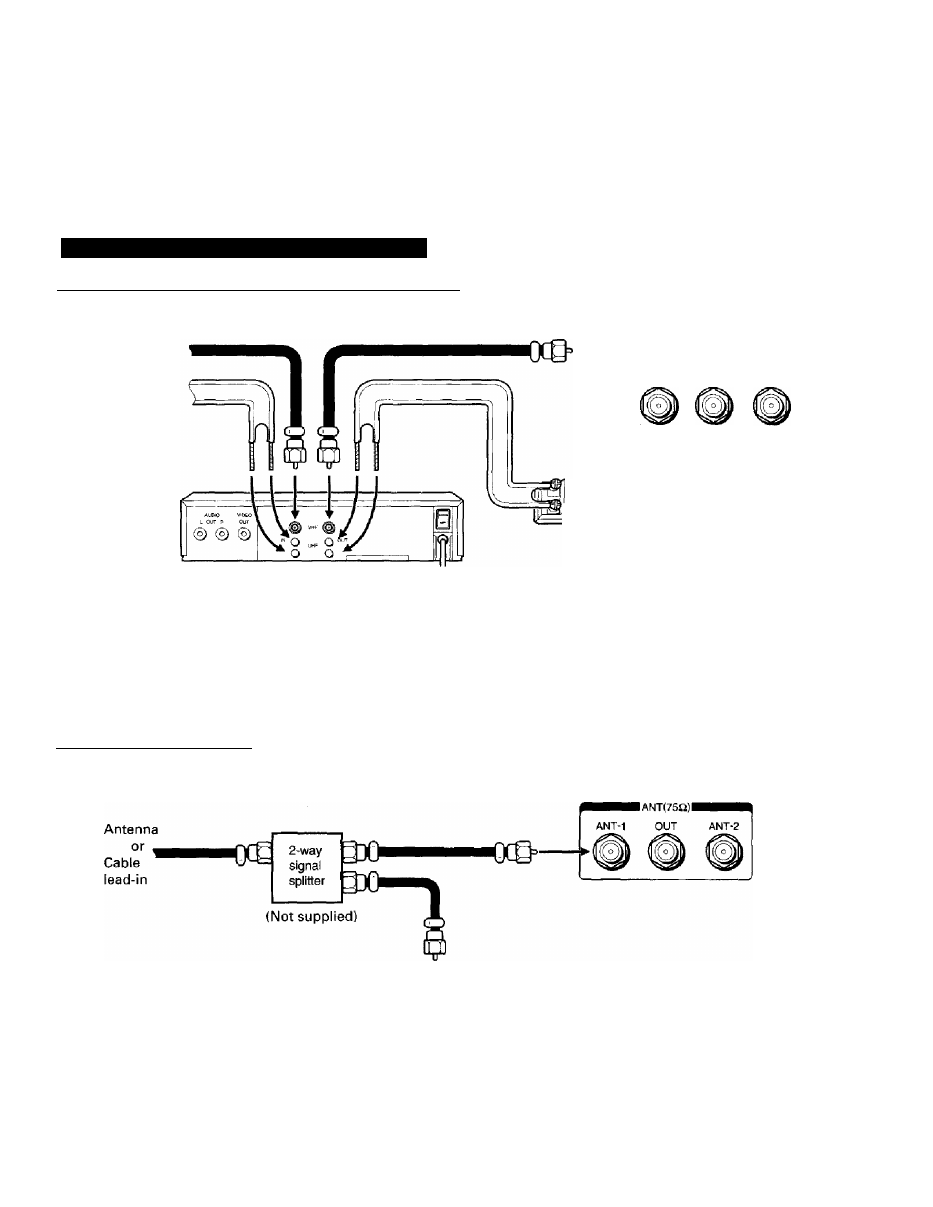

Antenna/Cable TV and VCR connections

Antenna/Cable TV connection via VCR (Simplified method)

VHF or Cable

lead-in

OR

UHF lead-in

IANT(75Q)I

i ANT-1 OUT ANT-2

Antenna
adapter

VCR (UA/ separated)

Notes:
• Playback of tapes may often cause the TVA/CR switching of the VCR to disconnect the antenna from the TV. If you

cannot select a certain channel, try pressing the TVA/CR button on the Remote Control.

• If you connect both VFIF and UHF lead-in cables, use a U/V mixer {not supplied). (See page 9.)

• VIDEO/AUDIO connections from the VCR to the TV are required for stereo tape playback from stereo VCR's.

Using

a

2-way signal splitter

______________________________________________________

You can view either TV programs or VCR tapes regardless of the position of the VCR's TV/VCR switch.

AoblO

V:C»Q

® ® ®

IN OUT

VCR

Note: VIDEO/AUDIO connections from the VCR to the TV are required for playback. (See page 62.)
