15 INSTALLING OPTIONS
TSU-8 CTCSS UNIT VS-2 VOICE SYNTHESIS UNIT
CAUTION: Always turn OFF the power and unplug the DC power
plug first.
Remove the entire transceiver case .
• Refer to "REMOVING THE CASE" {page 46}.
Remove the Front Panel.
• Remove the 4 screws that fasten the Front
Panel to the Main Unit, and pull the Front Panel
forward slightly.

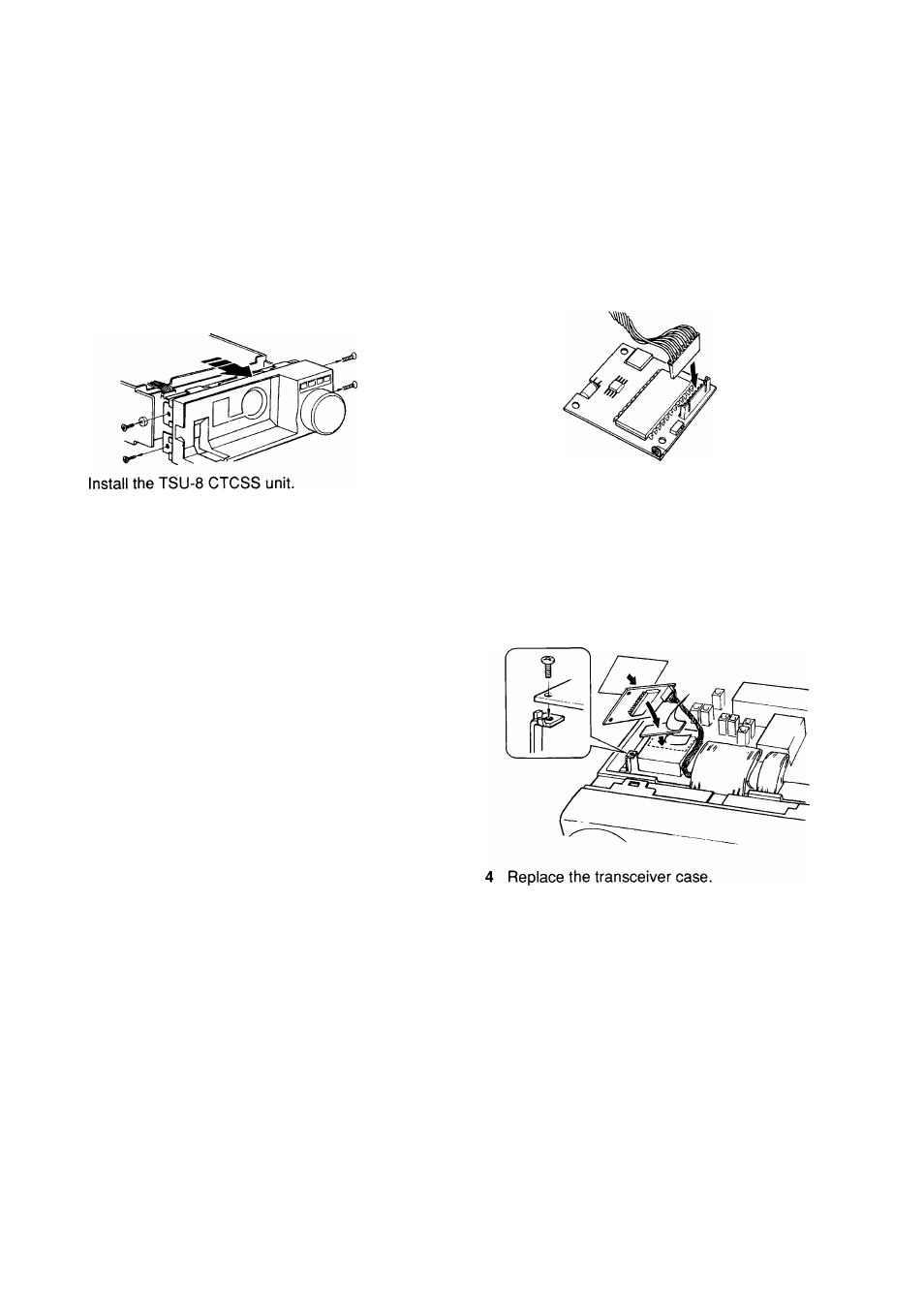

• Insert the TSU-8 into the connector as shown in
the diagram making sure the 1C on the TSU-8 is
facing toward the front of the transceiver.
4 Re-install the Front Panel.
• Reposition the Front Panel and replace the
4 screws.
5 Re-install the transceiver case.
• Replace the transceiver case and case screws.
CAUTION: Always turn OFF the power and unplug the DC power
plug first.
1 Remove the transceiver case.
Refer to "REMOVING THE CASE" (page 46).
2 Attach the connector.
Plug the connectorized cable from the Main Unit
into the connector on the VS-2.
3 Attach the VS-2 unit.
Remove the backing from the cushion provided
with the VS-2, and attach the cushion to the top of
the IC on the VS-2. Remove the backing from the
other side of the cushion.
Press the VS-2 onto the shield, and attach the
protective cover over the VS-2 using a single
screw as shown in the diagram.
54
