10 PAGE
CALLING
Tune to the prearranged frequency.
Press [F], [SHIFT] twice.
• "PN" appears. "N" is the Page memory number
(0 - 8, A) of the currently selected Page
memory.
• If the DTSS function was ON, you only need to
press [F], [SHIFT] one time. This turns DTSS
OFF and Page ON.
n n
U Zi c n n n n
I J J.LI LI U.U

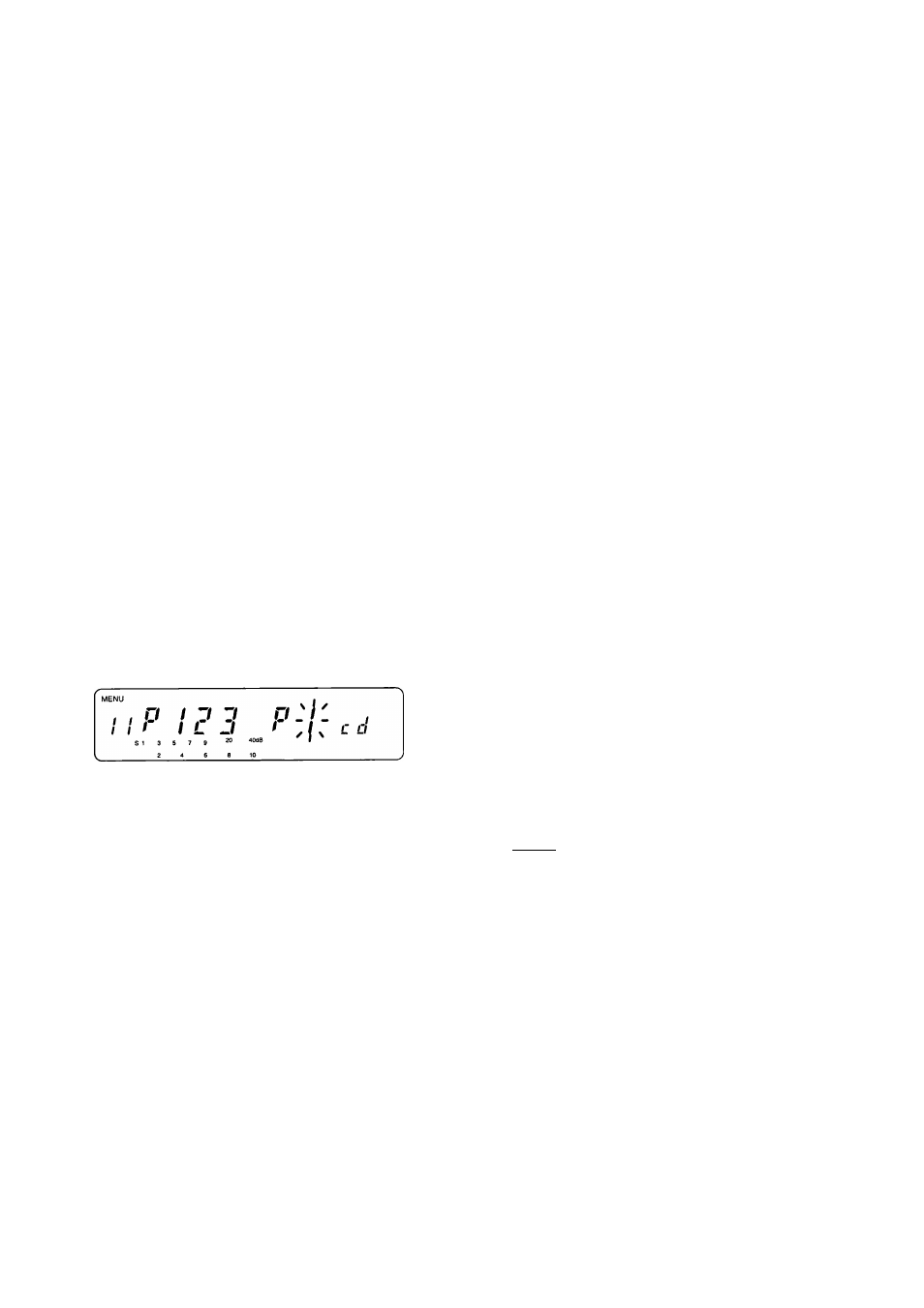

Press [F], [REV] to activate Code Select.
Turn the Alternate Tuning control to select Menu
No. 11.
Select the desired Page memory using the
following buttons:
• [F.LOCK] or microphone [UP] ->
Increments digit
• [LOW] or microphone [OWN] -»
Decrements digit
• Alternatively, if your microphone is equipped
with a DTMF keypad, you can enter the Page
memory number by using the keypad numeric
keys or the [A] key.
6 Press [CLR] or [PTT].
• The previous mode is restored.
7 Press and hold [PTT].
• The Group code or target Station code and your
Station code are transmitted.
P
I u Zf c n n n n
I I J J. LI LI LI. LI
Q2CIII
20 40dB
iiiiiimiiiiiiiiillllllilllll
Note:
♦ When Page is ON, Scan cannot be used.
♦
When Page is ON, selecting VFO A/B, a memory channel, or
the Call channel does not affect the Page status provided FM
mode is selected. Page remains ON. However, if SSB or CW
is selected, Page turns OFF automatically.
RECEIVING
1 Tune to the prearranged frequency.
2 Press [F], [SHIFT] twice.
• If the DTSS function was ON, you only need to
press [F], [SHIFT] one time. This turns DTSS
OFF and Page ON.
• Page can only be activated when using FM
mode.
You are ready to receive a call addressed with your
Station code or a Group code. If no signal is received
for more than 2 seconds after a Page has opened the
squelch, the squelch then closes.
RECEIVING A CALL WITH YOUR STATION CODE
When a signal is received encoded with your Station
code, the squelch opens and you hear an alert tone
from the speaker. In addition, "PO" and the calling
station's code appear.
¡2^' ' A'v
iMiiiiiiiiiiiiiiiiiiimiiiii
Press [PTT] while "P" is blinking to respond to the
calling party.
RECEIVING A CALL WITH A GROUP CODE
When a signal is received encoded with the correct
Group code, the squelch opens and you hear an alert
tone from the speaker. In addition, the received
Group code and the Page memory (1 to 8) in which
that Group code has been stored appear.
o zi zi Zi
¡ 2 s '
■niRyl
tlllltllllllllllllllllllllllll
o:tii
* A'
Press [PTT] while "P" is blinking to respond to the
calling party.
Note:
♦
"Err" appears on the Display if your transceiver fails to receive
the Page code correctly.
♦
The microphone is inhibited while the Page code is transmitted.
♦
If Page and Tone Alert are ON, there Is no speaker output
except the alarm tone even if a signal is received with the
correct Page code.
43
