12 MAINTENANCE
USING THE SQC PIN FOR RELAY OUTPUT
The function of the SQC pin located in the DATA
connector {page 6} can be changed to function as a
relay output.
1 Remove the lower case section {page 46}.

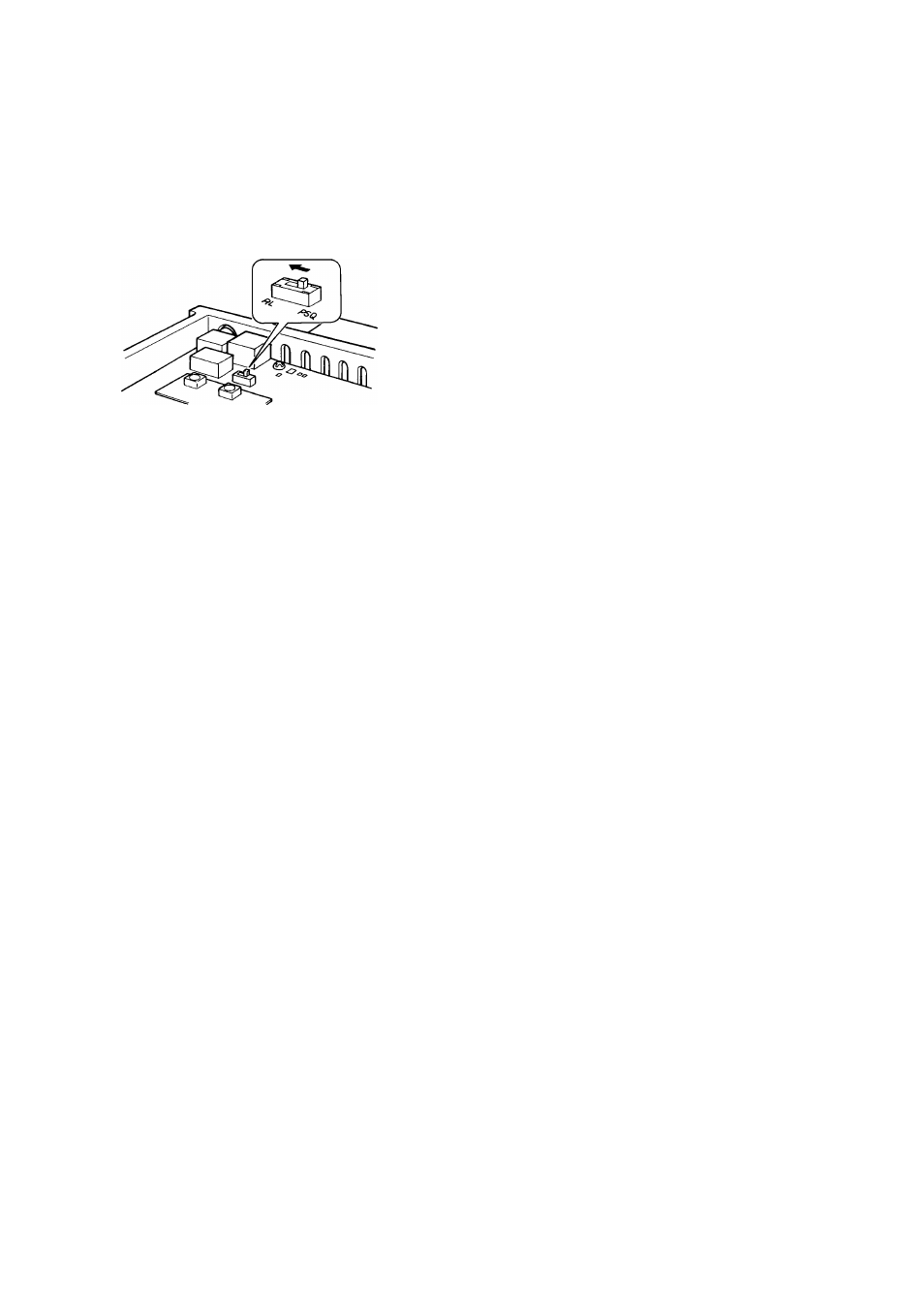

2 Move the slide switch located on the bottom rear of
the transceiver to the "RL" position.
In future, if you decide to use the Squelch Control
function, repeat this procedure but select the PSQ
position with the switch.
