ALTANA Temp-Chart - Manual (Page 41)

40

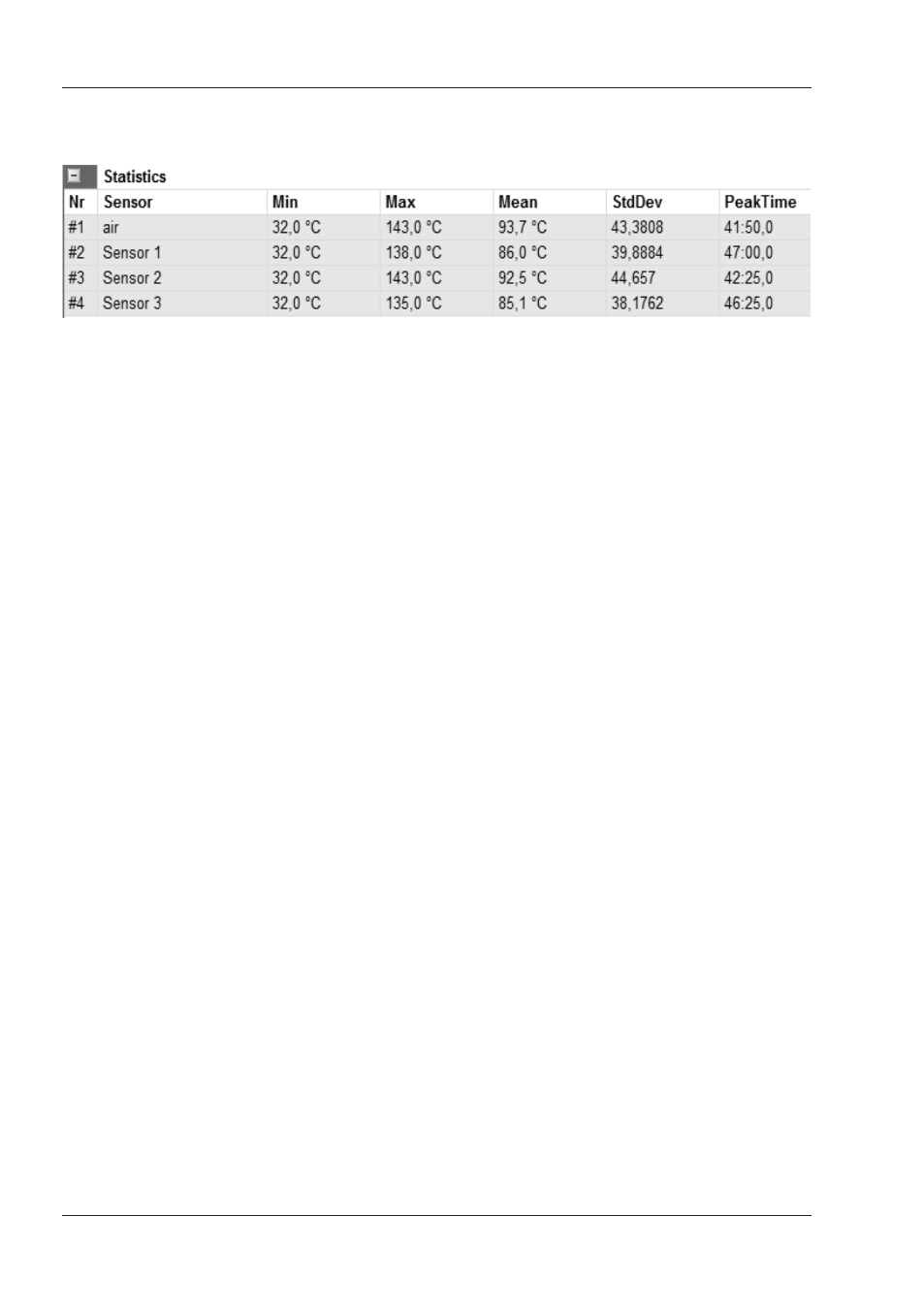

4.2.2.4 Statistics
The table of results consists of five columns:
Min
indicates the minimum temperature
Max indicates the maximum temperature
Mean indicates the mean temperature
StdDev indicates the standard deviation of
the temperature values
PeakTime indicates the time up to the
maximum temperature value
4.3 Print Protocol
temp-chart offers a variety of protocol types, in
general, the standard protocol is the one most
commonly used for print-outs. It shows not only the
comments and measurement descriptions but also
the charts and selected analysis results.
• Open the desired measurement unless it is
already loaded.
• Activate the chart page and ensure that the
entire measurement (resp. the section that you
want the protocol of) is visible.
• Activate the Print tab and open the dialog to
Define Print Layout
Print Protocol
