Electronic Control System (ECS) and Type CXT-E Valve
8. CORRECTIVE MAINTENANCE
VD2: 02/28/14 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913 • Phone: 800-526-0288 Page 59 of 82
AC-105 OMM-0003_0D
0
90
neptronic
1 2 3
COVER
SET SCREW
CLUTCH
DIAL &
POINTER
CENTER
SLOT
COVER
CABLE
CONNECTOR
LINKAGE
SHAFT

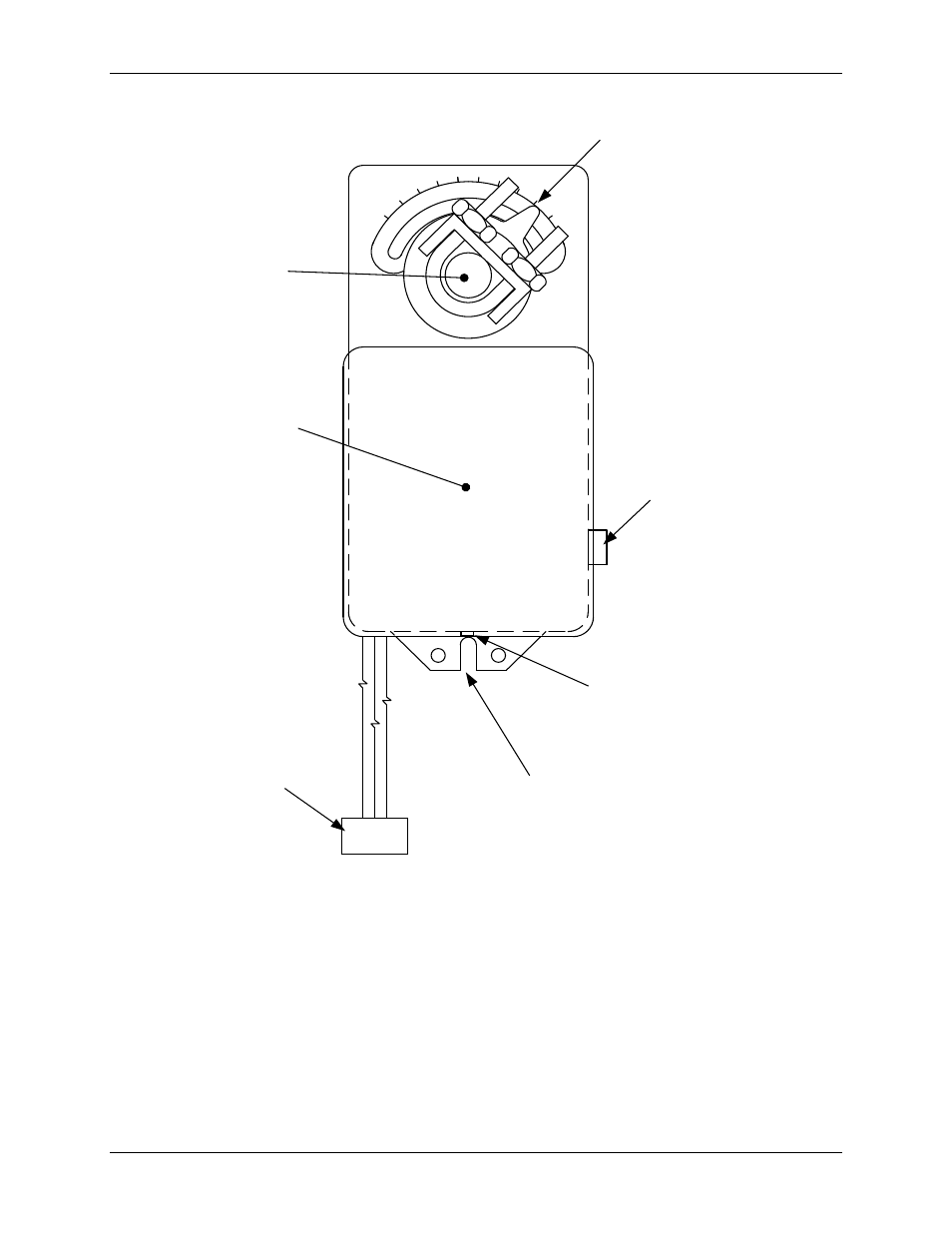

Figure 8-5. Actuator Replacement
8.2.5 Linkage Assembly Replacement
As Figure 8-6 shows, the Linkage Assembly Part No. will vary, depending on valve size. CXT-E
valve sizes from 1.00 to 3.00 inches utilize Linkage Assembly Part No. 24038-1. However, 4.00
inch CXT-E Valves utilize Linkage Assembly Part No. 24038-2. The primary difference between
the 24038-1 and 24038-2 Linkage Assemblies is the Adapter shown in Figure 8-6. In addition,
the Linkage Pin location for the 24038-1 assembly will vary for 1.00 to 2.00 inch valves and for
2.50 to 3.00 inch valves. IT IS IMPERATIVE THAT THE CORRECT ADAPTER AND PIN
LOCATION BE USED FOR THE VALVE SIZE BEING REPAIRED. The Linkage Assembly is
attached to the Control Valve Top with two Cap Screws. The Linkage Gasket (Part No. 81046)
should also be replaced when installing a new Linkage Assembly.
