(2) How to remove and attach the surface locator plate (Only for SV-10A/SV-10H/SV-100A/SV-100H)
Removing
Loosen the screw and remove the surface
locator plate from the temperature sensor.
Attaching
Install the surface locator plate as
shown in the illustration. Slip the locator
plate onto the temperature sensor.
Move the plate to the top of the sensor.
Adjust the position of the locator
plate so that the tip of the locator
plate aligns to the center of the
narrow part of the sensor plates.
Tighten the screw.
Note
When the sensor plate and the surface locator plate are too close, a measurement
error may occur due to the liquid surface tension. Therefore, secure a clearance of
at least 1 mm between the sensor plate and the surface locator plate. Maintain the
clearance by rotating the surface locator plate when necessary.
(3) How to remove the sensor protective cover (For all models)
Remove the protector and the surface
locator plate.
Pull the sensor protective cover in the
direction indicated as 1 to release the
portions A (two) and B from the
protector frame.
Pull the sensor protective cover in the
direction indicated as 2 to remove.
Note
When removing the sensor protective
cover, it may touch the sensor plates
and the temperature sensor. Use
much care not to damage them.

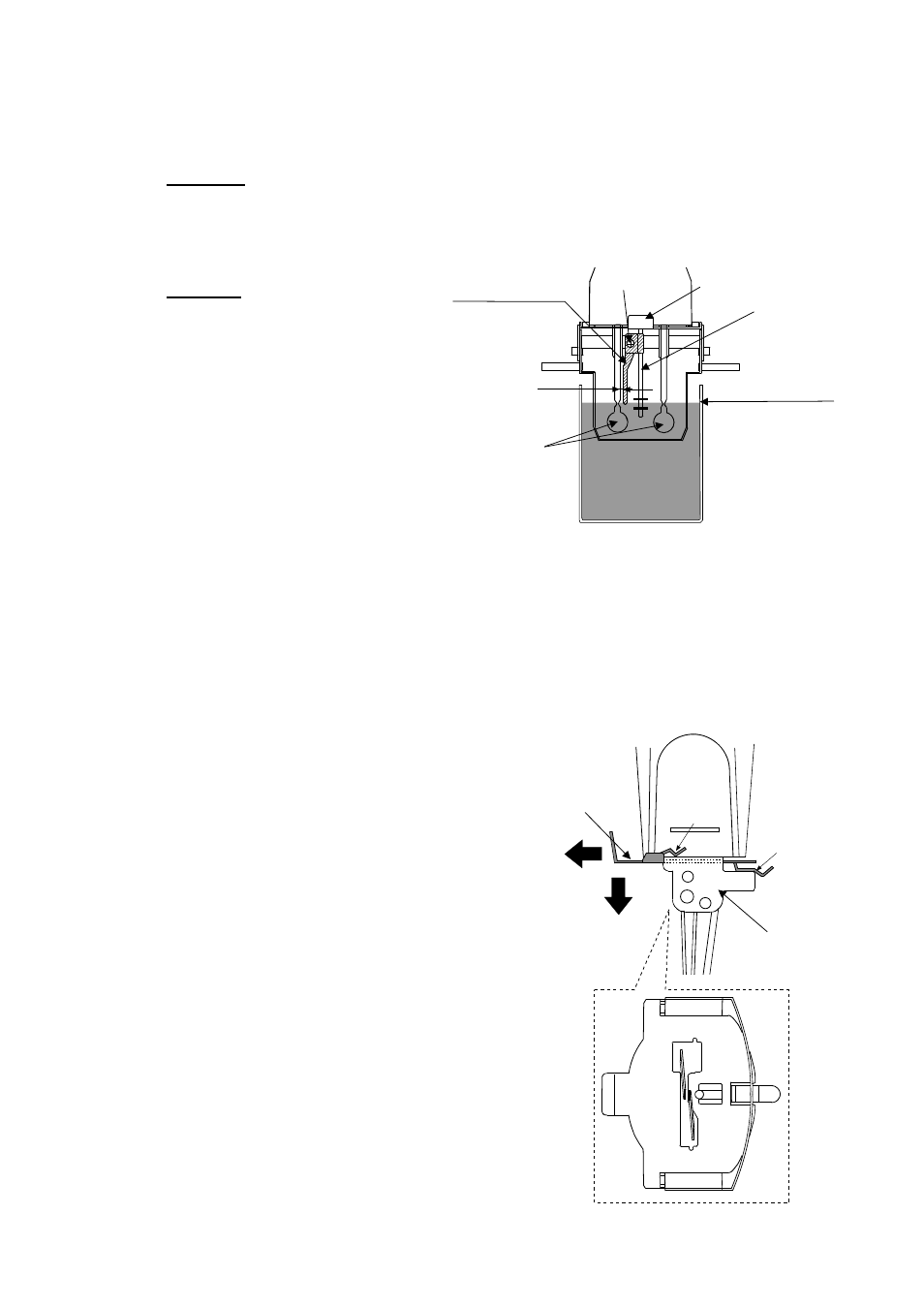

Clearance
of 1mm or
greater
Surface
locator plate
(Shaded portion)
Only for
SV-10A/SV-10H
SV-100A/SV-100H
Sensor protective
cover
Sample
surface
adjustmen
t position
Sensor
plates
Temperature
sensor
Screw
A
B
1
2
Sensor protective
cover
Protector
frame
(Sensor unit underside view)
(Example: SV-1A/SV-1H)
(Sensor unit side view)
