- With SV-10H/100H, use the surface locator plate as a guide. The surface locator plate has
been secured in position so that the tip of the surface locator plate comes into contact with the
sample surface.
SV-1H SV-10H/SV-100H
Note
Use the protector in the position as shown on the left below. If the protector is not used,
be careful that the sensor plates do not touch the inner wall of the beaker etc. With the
SV-10H, when the protector is removed, a measurement error may occur, especially in
measuring a viscosity over 5000 mPa
⋅s.
Protector
Note
• Adjust the height of the sample surface correctly, otherwise it may cause a
measurement error.
• When you need a more accurate measurement, use the stand set (AX-SV-51, sold
separately).
• With SV-10H/SV-100H, the surface locator plate can be attached or removed by loosening the
screw.
• With SV-10H/SV-100H, before removing the sensor protective cover, remove the
surface locator plate.
• Removing and reattaching the surface locator plate will cause the position (Height) of
the sensor plates and the sample surface to change. Therefore, it is recommended
that calibration be performed using a standard viscosity fluid before measurement.

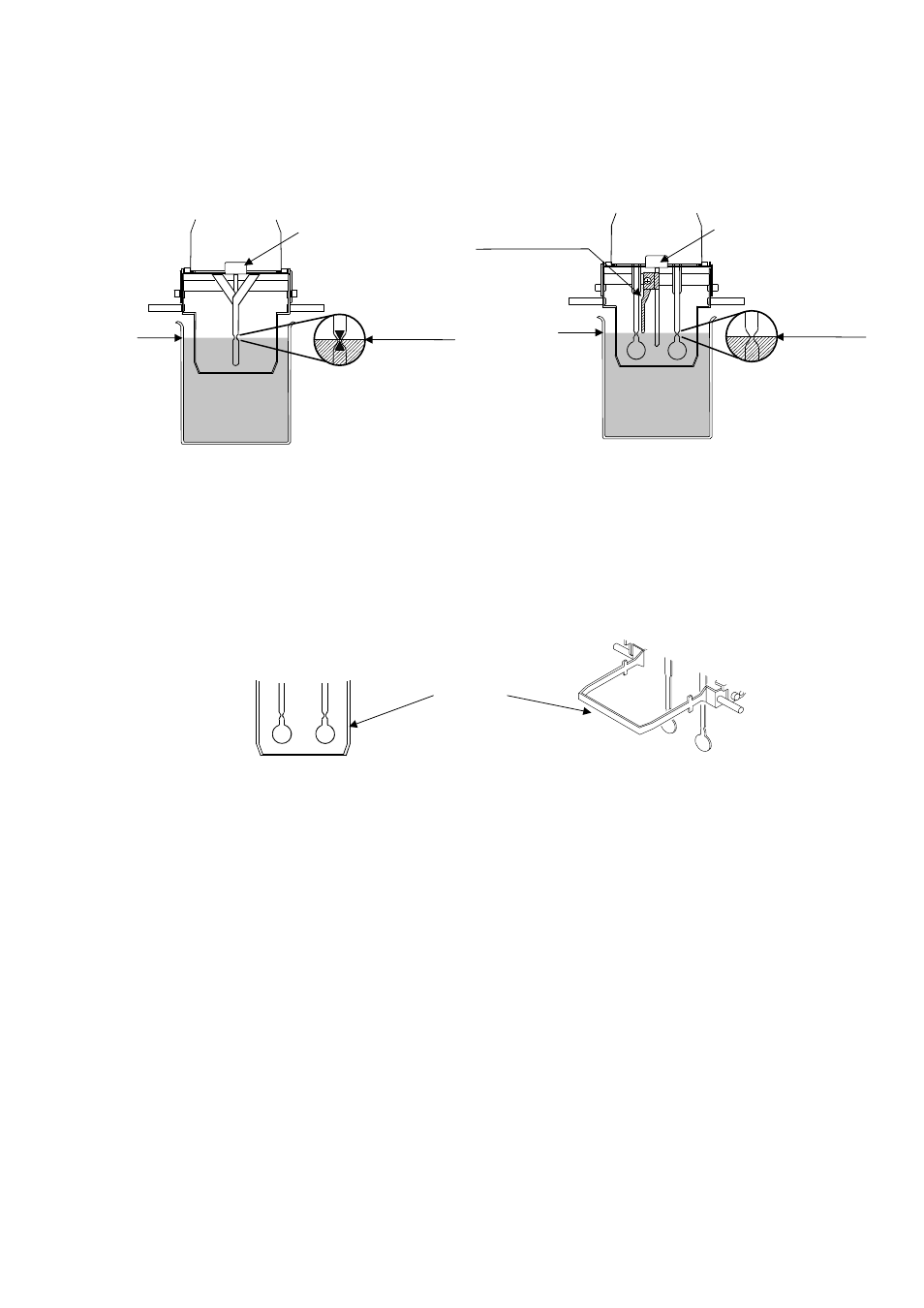

No
Sample
surface
Surface
locator plate
(Shaded portion)
SV-10H/SV-100H
Sensor
protective
cover
Sample
surface
adjustment
position
Sample
surface
Sensor
protective
cover
Sample
surface
adjustment
position
