Unpacking / Assembling
Note: When assembling, handle the sensor plates with care.

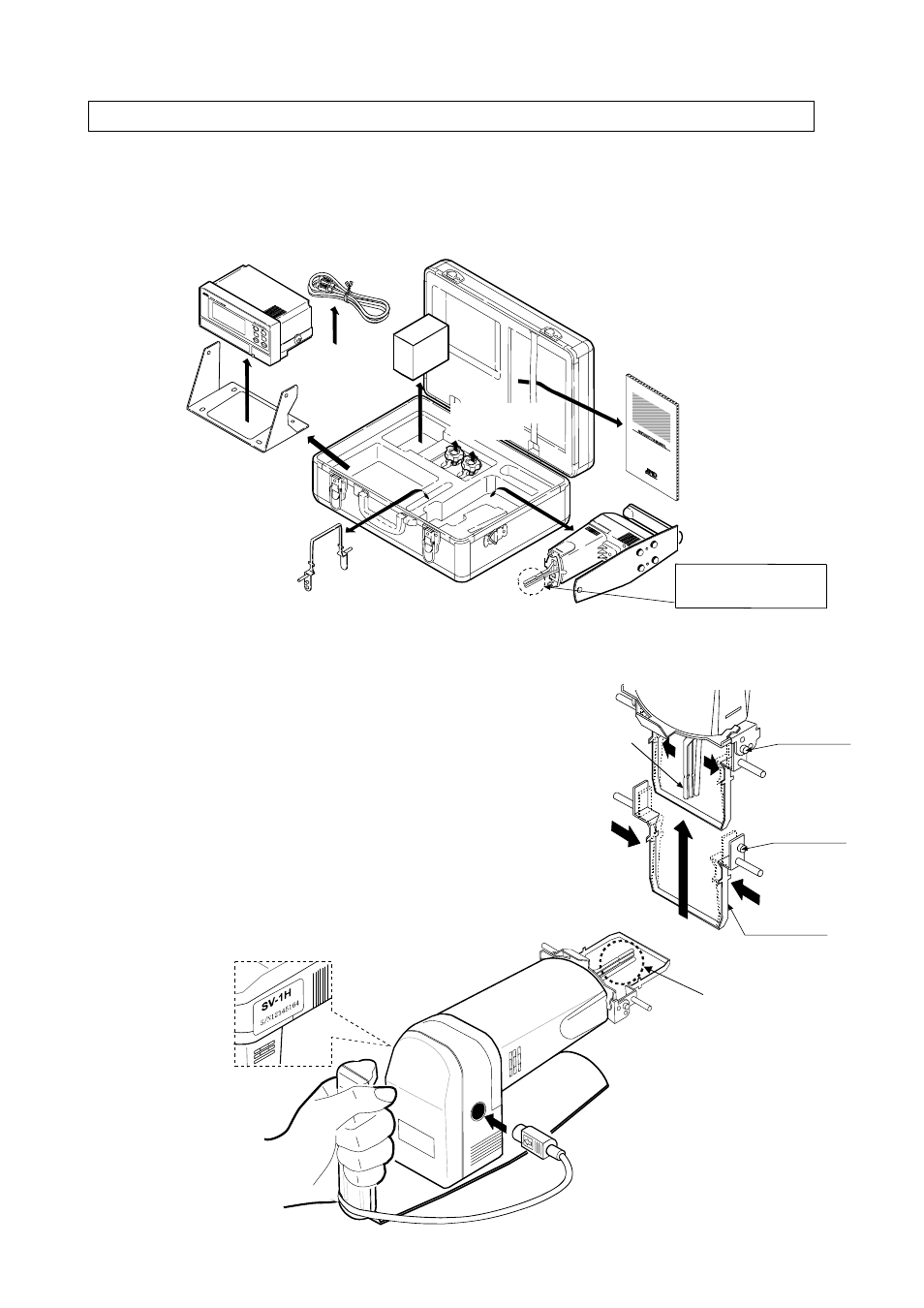

1 Unpack the parts from the carrying case.
2 Install the protector on the sensor unit of the SV-1H/SV-10H/SV-100H.
Insert the protector’s rotational axis into the sensor unit’s hole.
(Refer to the figure at the right.)
3 Connect the display unit to the main unit using the connection
cable.
Note
The main unit and the display unit have been adjusted in
pairs. For accurate viscosity measurement, before use,
confirm that the main unit and the display unit have the
same serial number.
Connection cable
from the display unit
(Connect as shown)
Serial number
Sensor plate
Sensor
plate
Sensor unit
Example: SV-1H
Protector
1
Rotational
axis
2
1
3
3
Rotational
axis
Connection
cable
Display
AC adapter
Stand
Protector
Sensor unit
Handle the sensor plates
with care.
Instruction
manual
Knobs for securing
the display
