2-1 Connecting the DL-RB1A to External Devices
4
Press down on the handle of the dedicated crimping tool until the
clamp wraps completely around the cable.
Gently tug on the cable to remove the cable with crimped
contact from the housing area of the dedicated crimping tool.
5
Fully insert the cable straight into a groove in the house that
does not already contain a contact.
• Gently tug on the cable to check that the contact is securely
inserted.
• Completely insert the contact in the housing.
6
With the contacts inserted into the housing, install the
hood covers.
7
Use a cable tie as shown in the figure to secure the cable in place.

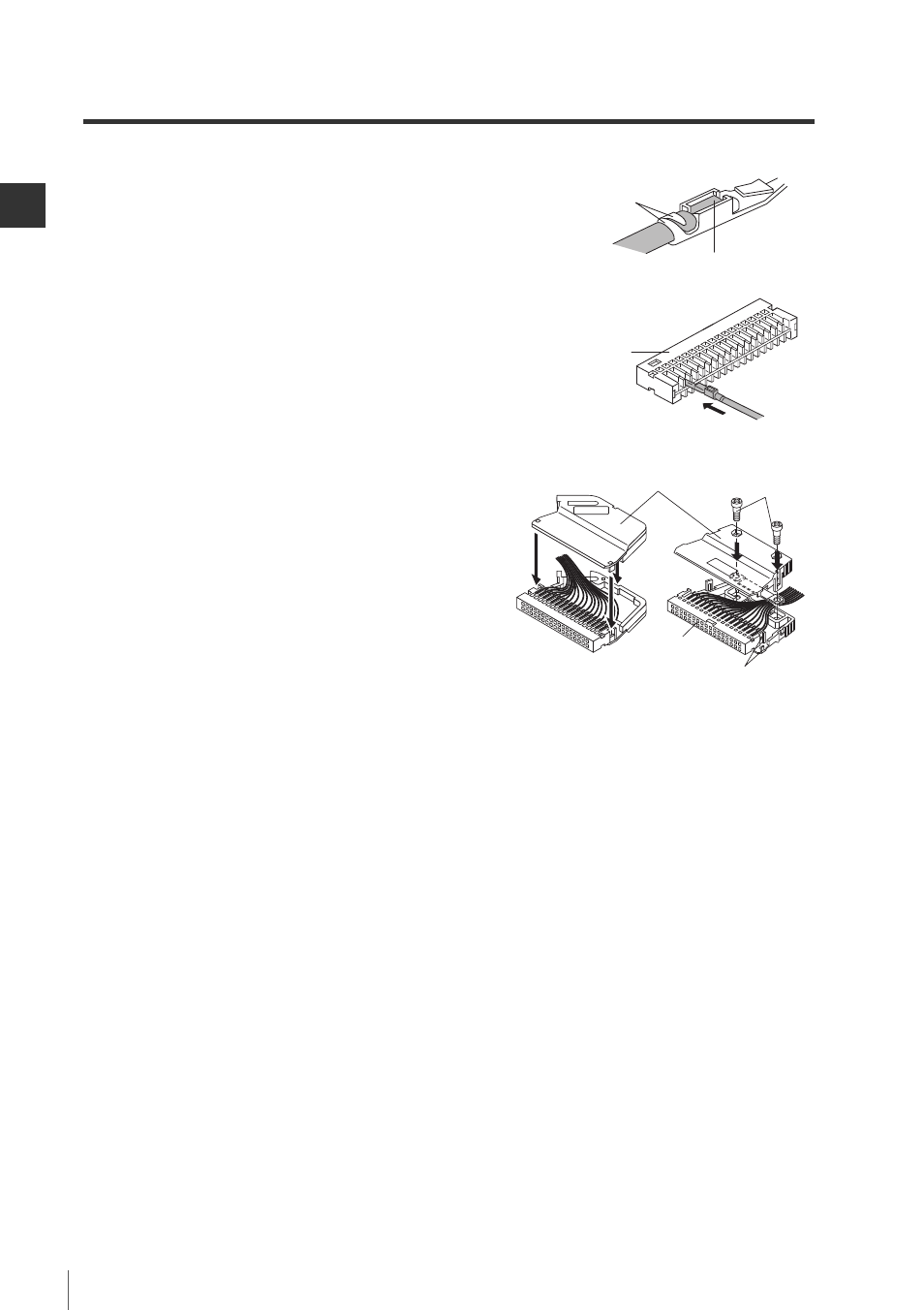

Clamp wraps
around the cable
Fully insert the cable
Housing
Attach the screws
Hood cover
Align this area
Housing
