KEYENCE DL-RB1A - Manual (Page 23)

21
2-1 Connecting the DL-RB1A to External Devices
M
ou
ntin
g an
d Co
nn
ec
tin
g the
D
L-
R
B
1A
2

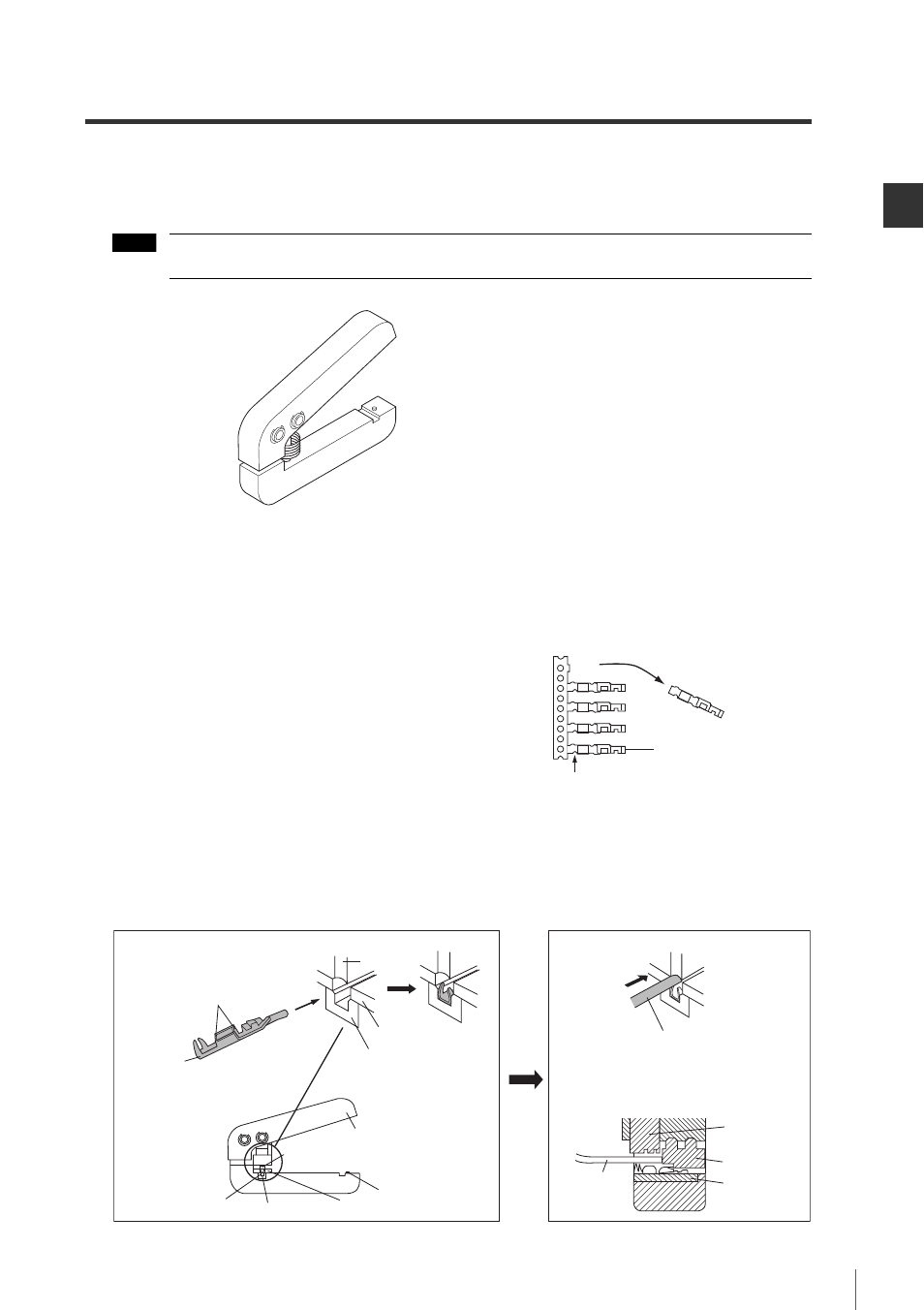

 Dedicated crimping tool
You can use the dedicated crimping tool to easily crimp the ends of the cable.
Use the following dedicated crimping tool for wiring.
If you do not use the dedicated crimping tool, you must solder the connection.
 Dedicated crimping tool: Model OP-21734
 Wiring to the connector
This section explains how to use the dedicated crimping tool to perform wiring. Make sure to have
contacts, housing, and the cable beforehand.
1
To remove the contact, bend at the breaking point.
For additional contacts use OP-22189
(includes 200 contacts).
2
Fully insert the contact straight into the contact
housing area of the dedicated crimping tool as in
(Figure A) .
3
Fully insert the cable straight into the dedicated crimping tool so that it lays in the crimping grove of the
contact. (Figure B)
(The cable sheath does not need to be removed.)
Note
Contact breaking point
Carrier end
Crimper
Crimping groove
Cover
Guide
Contact
Figure A
Cable
Figure B
Cable
Crimper
Cover
Guide
Side view
Handle
Pin for removing the contact
Cover Contact housing area
Guide
Crimper
