19
2-1 Connecting the DL-RB1A to External Devices
M
ou
ntin
g an
d Co
nn
ec
tin
g the
D
L-
R
B
1A
2

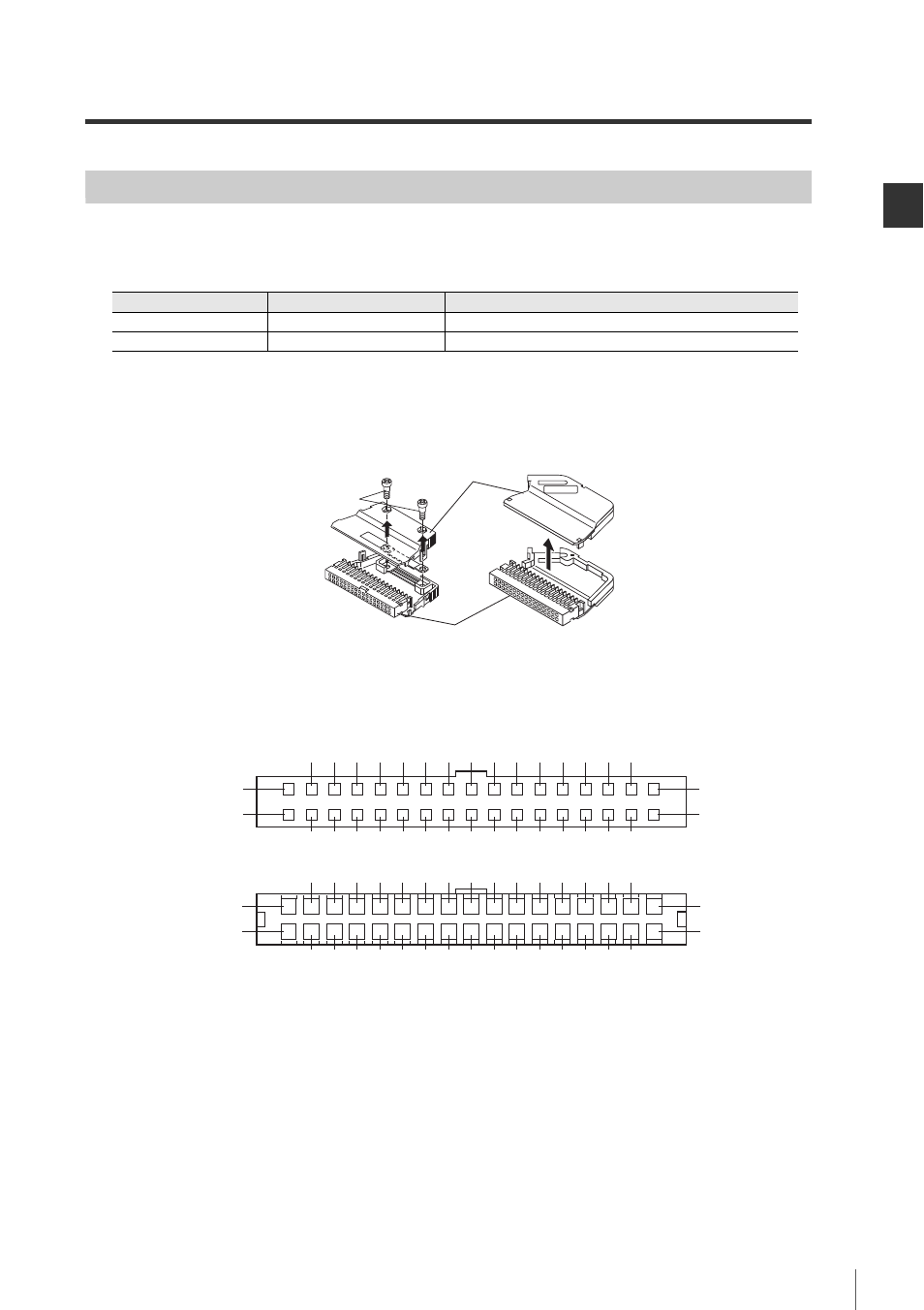

Combining and Wiring Connectors
To connect the DL-RB1A to external devices, the cable from each device must be wired to the
connector (MIL connector, female 34-pin).
 Connectors
An upper and lower cover is installed on the connector. When performing the wiring, remove both
covers.
 I/O connector pin assignments
Model Shape Structure
OP-23139 34-pin, vertical hood cover 1 hood cover, 1 housing, 40 contacts
OP-42224 34-pin, tilted hood cover 1 hood cover, 1 housing, 40 contacts
Remove
the screws
Housing
Vertical hood cover
OP-23139 (34-pin) Tilted hood cover
OP-42224 (34-pin)
Hood cover
4
1
2
3 5 7 9 11 13 15 17 19 21 23 25 27 29 31
6 8 10 12 14 16 18 20 22 24 26 28 30 32
33
34
33
34
1
2
4
3 5 7 9 11 13 15 17 19 21 23 25 27 29 31
6 12 10 8 14 20 18 16 22 28 26 24 30 32
Mark
Mark
Back
Front
