CHAPTER 3 - INSTALLATION
3-13
Non-C2
Loadcell
Cable
Connection
(J1)
1
Attach the load cell cable to the ter-
minal block mounted next to the J1
connector on the HI 200DNWM
Module.
2
Factory installed jumpers to remain
in place for 4 wire, non-C2 load cell
connections. (See Fig. 3-11)
3
Do not run load cell cable in parallel
with or in the same conduit with
power wiring, relay cables or any
other high energy cables.

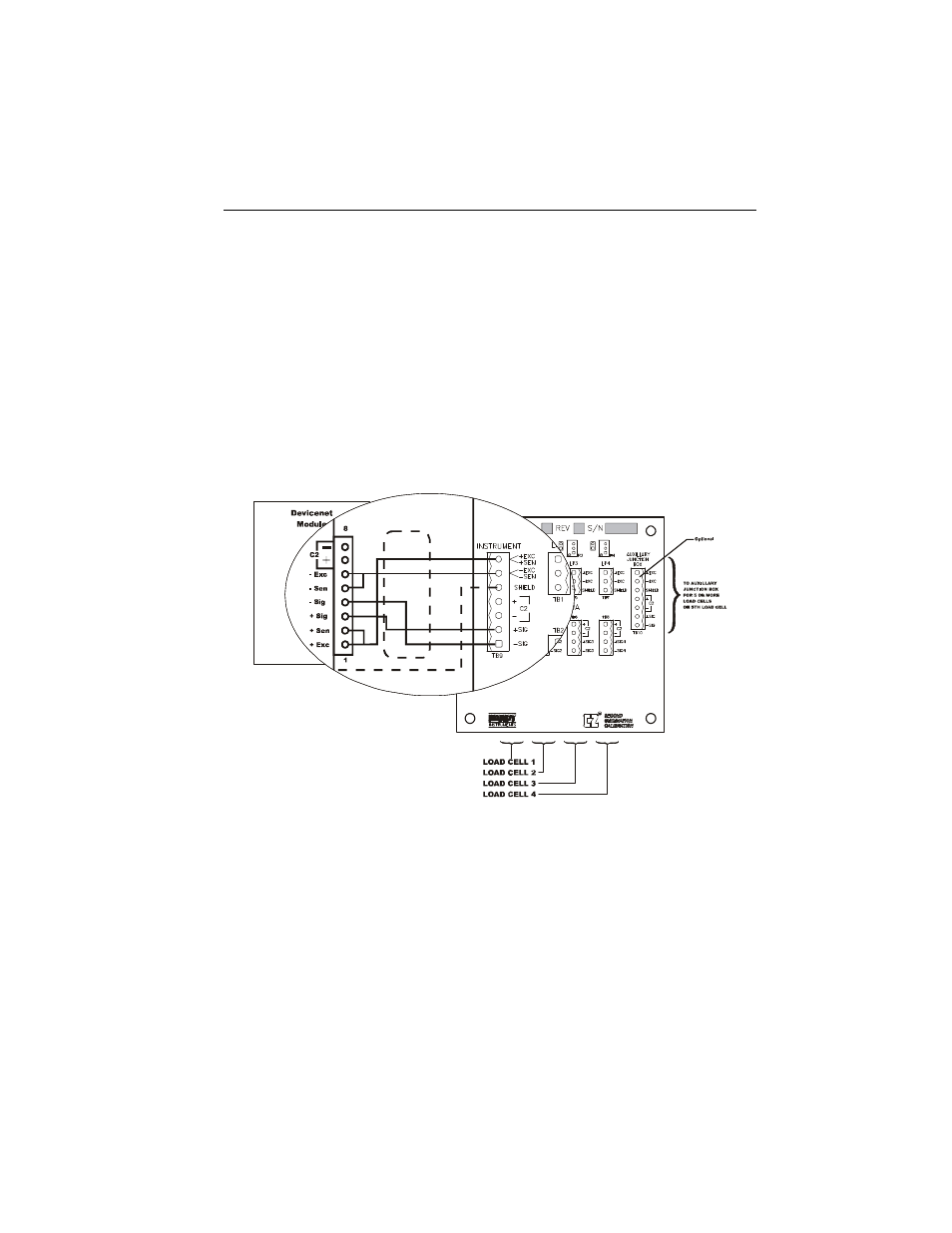

FIG. 3-11 NON C2 LOAD CELL CONNECTION/HI 215JB JUNCTION BOX
