HI 200DNWM MANUAL

3-8

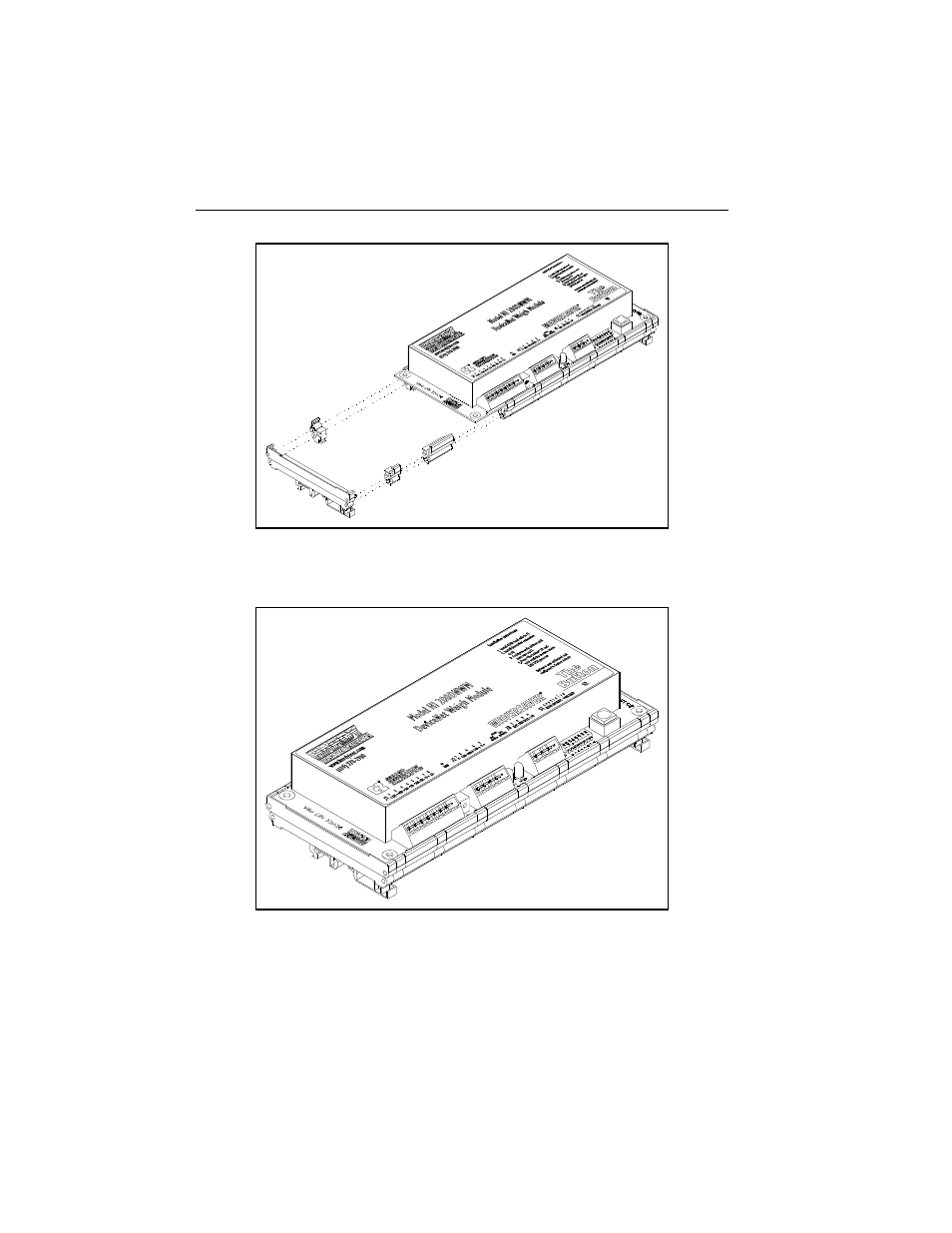

FIG. 3-7 INSTALLING THE WEIGH MODULE INTO THE ASSEMBLED

DIN RAIL

FIG. 3-8 WEIGH MODULE INSTALLED IN THE DIN RAIL

NOTE:

The Weigh Module can be installed in the DIN Rail
Assembly in either direction.
