CHAPTER 3 - INSTALLATION
3-5

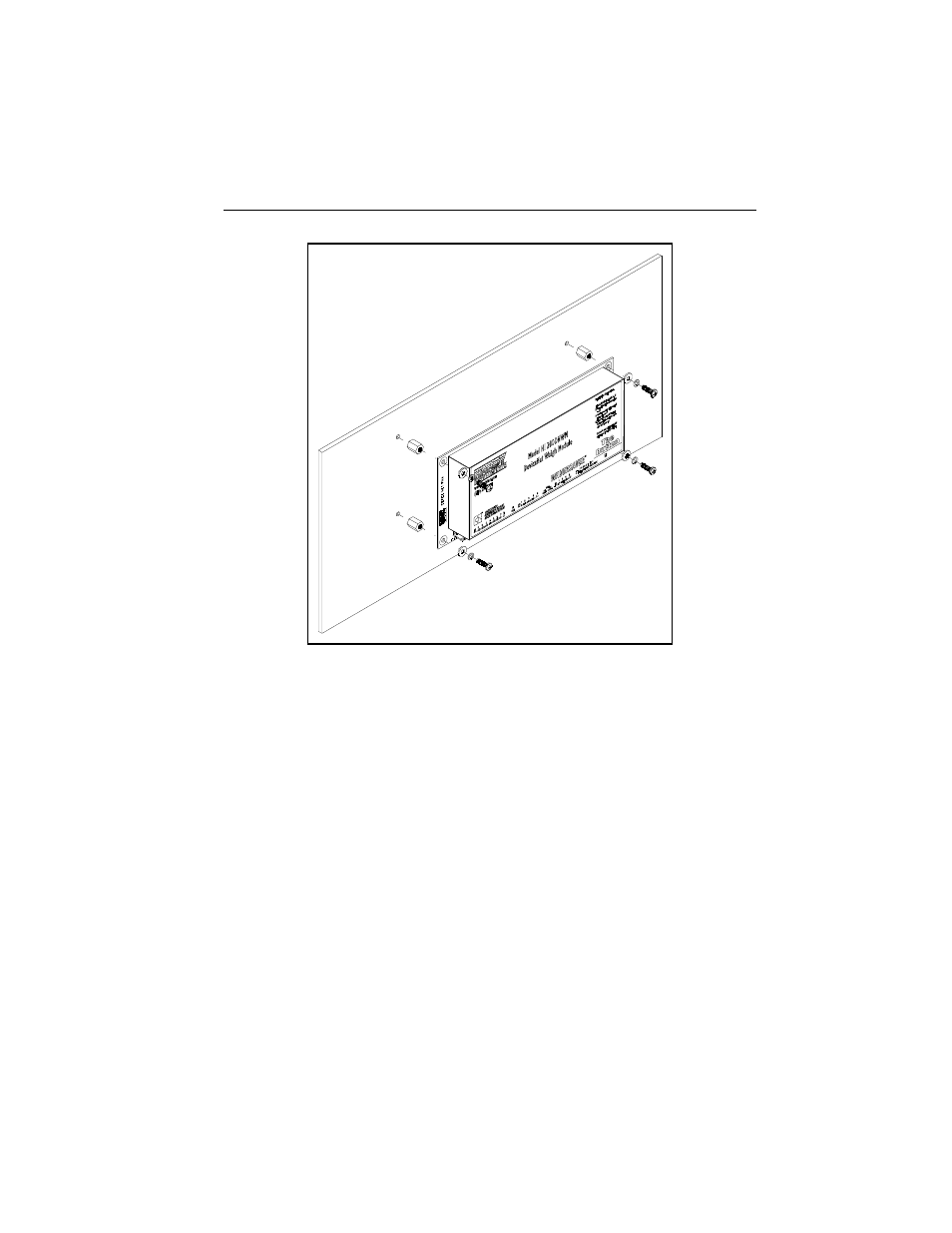

FIG. 3-3 FASTENING MODULE TO BACK PLATE
Installing
Weigh Module
in DIN Rail Step 1. Take one end piece and one rail
insert. Snap the rail guide insert
into the end piece. Take the other
end piece and install the other rail
guide insert (See Fig. 3-4 & 3-5)
Step 2. Take one of the small rail pieces
and insert the rail pins into the end
piece. (See Fig. 3-6)
Step 3. Take one of the large rail pieces
and insert the rail pins into the
small rail piece. Do this on both
sides. (See Fig. 3-6)
Step 4. Continue installing the rail pieces
until all rail pieces are installed.
(See Fig. 3-7)
