HI 200DNWM MANUAL
3-12

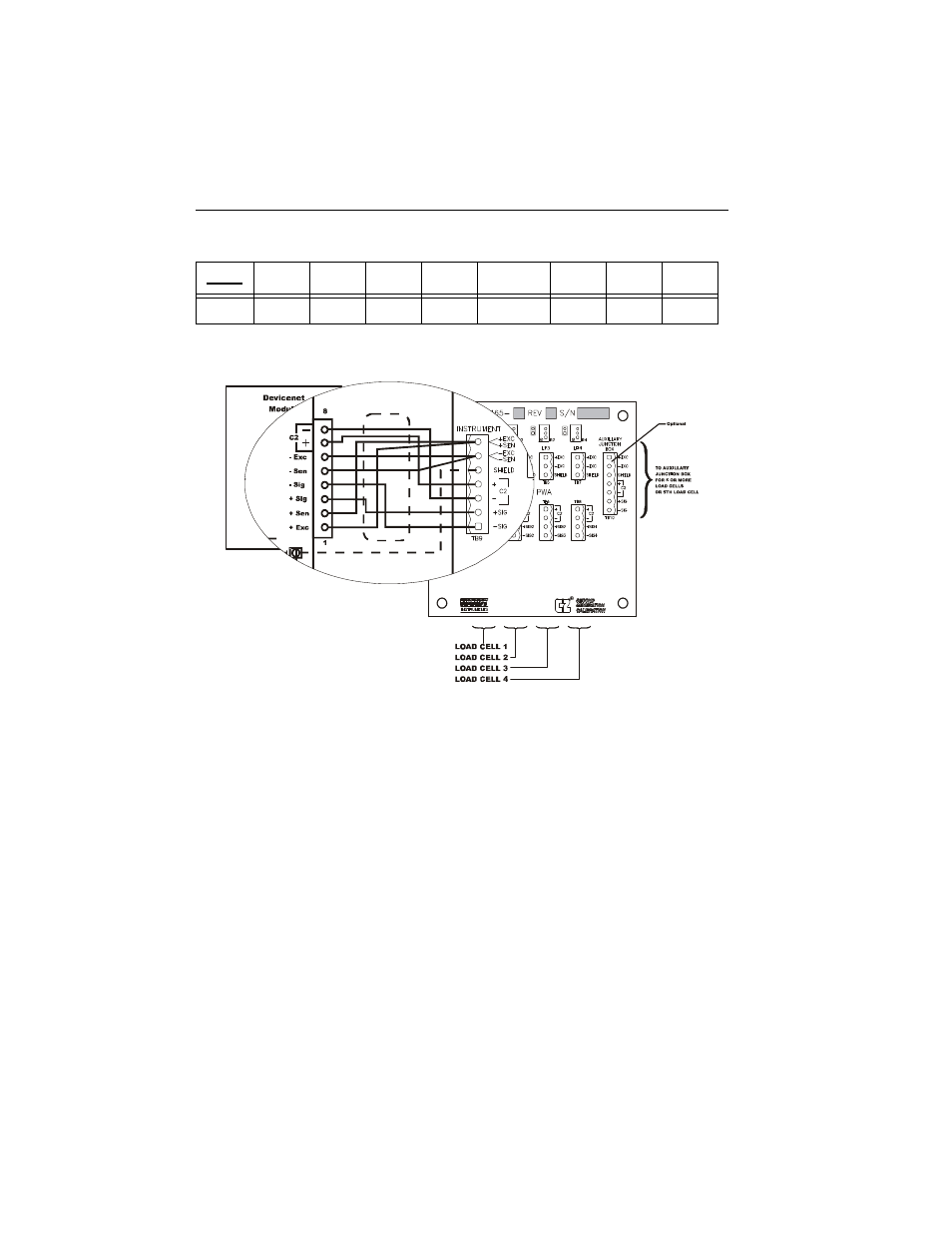

FIG. 3-10 C2 LOAD CELL CONNECTION/HI 215JB JUNCTION BOX
1 Recommended load cell cable, Hardy
Instruments (Prt. #6020-0001)
2 Attach the load shield to the terminal
block mounted next to the J1 connec-
tor on the HI 200DNWM Module.
3 Do not run load cell cable in parallel
with or in the same conduit with
power wiring, relay cables or any
other high energy cables.
4 Remove the factory-installed jumpers
for C2 wire load cell connection.
5 JB summing Card (Part. #0535-0465-
05)
Model EXC + SEN + SIG + SIG - SEN - EXC - C2 + C2 -
J-BOX RED BLUE GRN WHT BRWN BLK GREY VIO
Table 1: C2 CABLE COLOR CODE/HI 215JB J-BOX
