HI 200DNWM MANUAL
3-4
Step 5. Connect the phoenix connectors to
the headers mounted on the weigh
module.
NOTE:
Stand offs and fasteners are not included.
NOTE:
Make sure that the connectors are seated properly in
the headers.

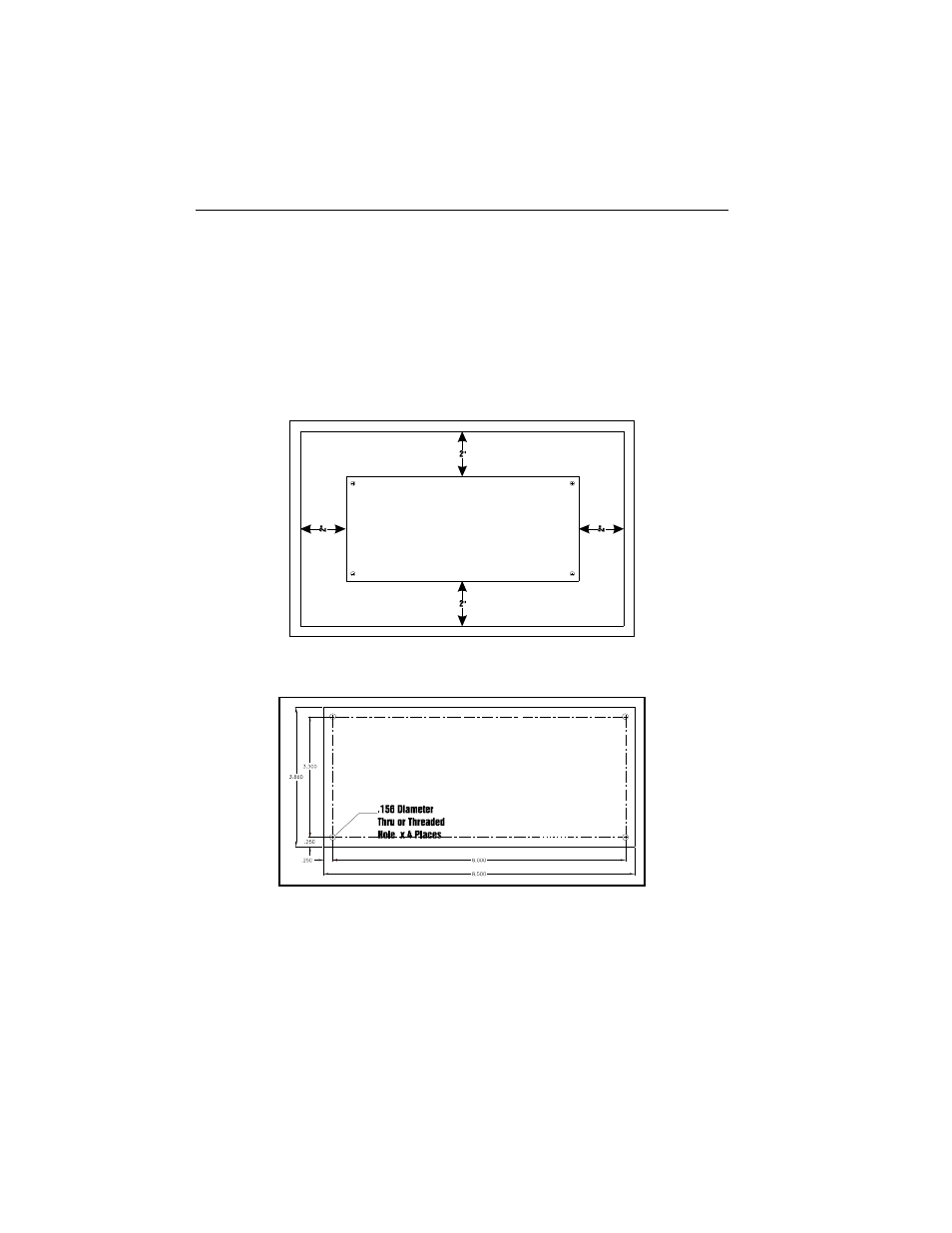

FIG. 3-1 2” CLEARANCE AROUND THE MODULE
FIG. 3-2 HOLE DIAGRAM
