Parking Brake Adjustment
NOTE: Perform the left parking brake adjustment
first.
1.
Make certain the parking brake lever is fully dis-
engaged. See Figure 1.
2.
Locate a 1/4" piece of bar-stock. See Figure 2.

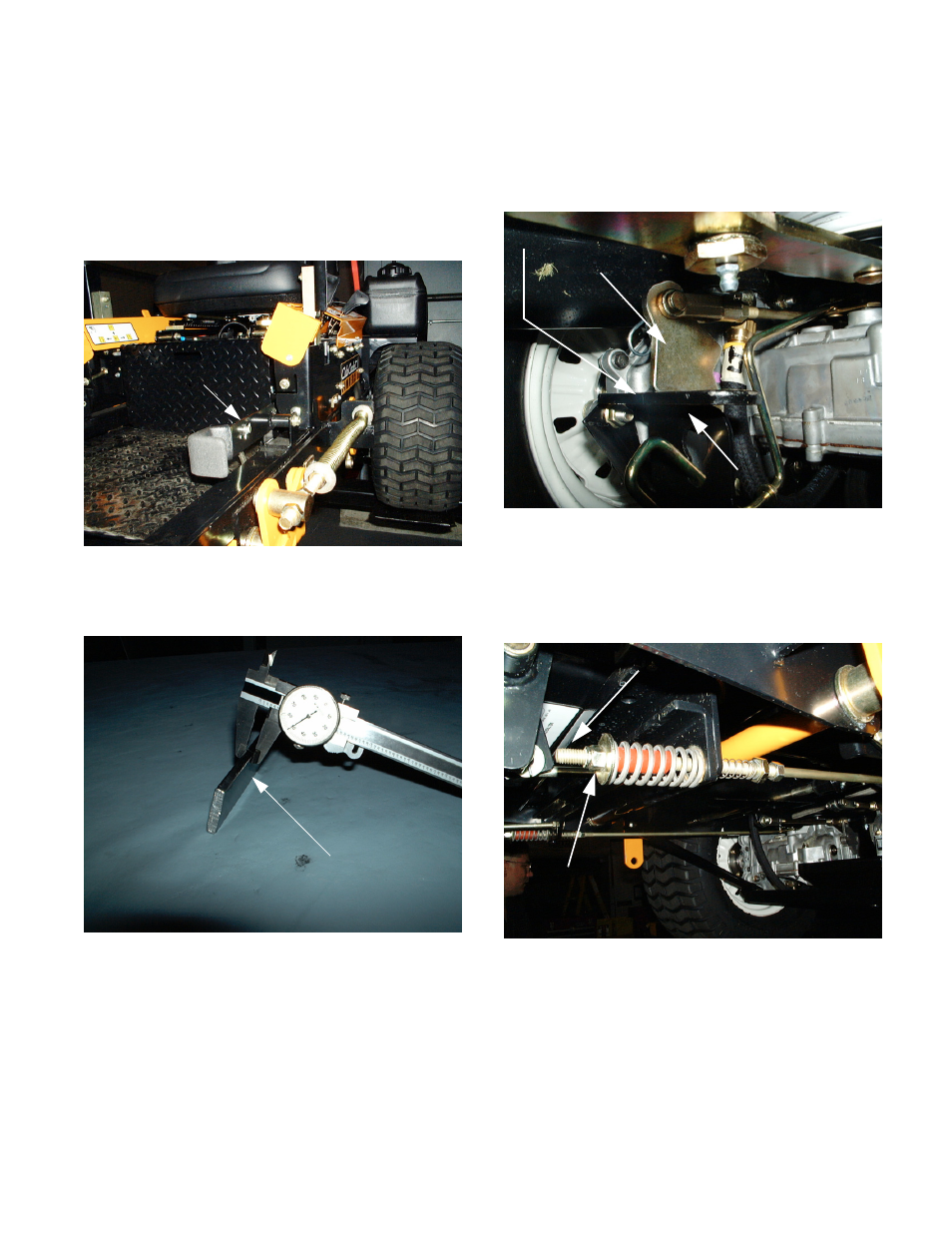

Figure 1
Parking Brake
Lever
(Disengaged)
Figure 2
1/4” Bar Stock
3.
Place the 1/4" bar-stock between the parking
brake lever and the top of the skid plate assem-
bly (at the pump release rod lockout bracket).
See Figure 3.
4.
Locate the threaded portion of the front brake
connecting rod (past the front brake bracket
assembly) and identify the front nylon lock nut at
the very end of the rod. See Figure 4.
Figure 3
1/4” piece of bar stock
Parking Brake Lever
Skid Plate Assembly
Figure 4
Threaded portion of the brake connecting rod
Nylon Lock Nut
