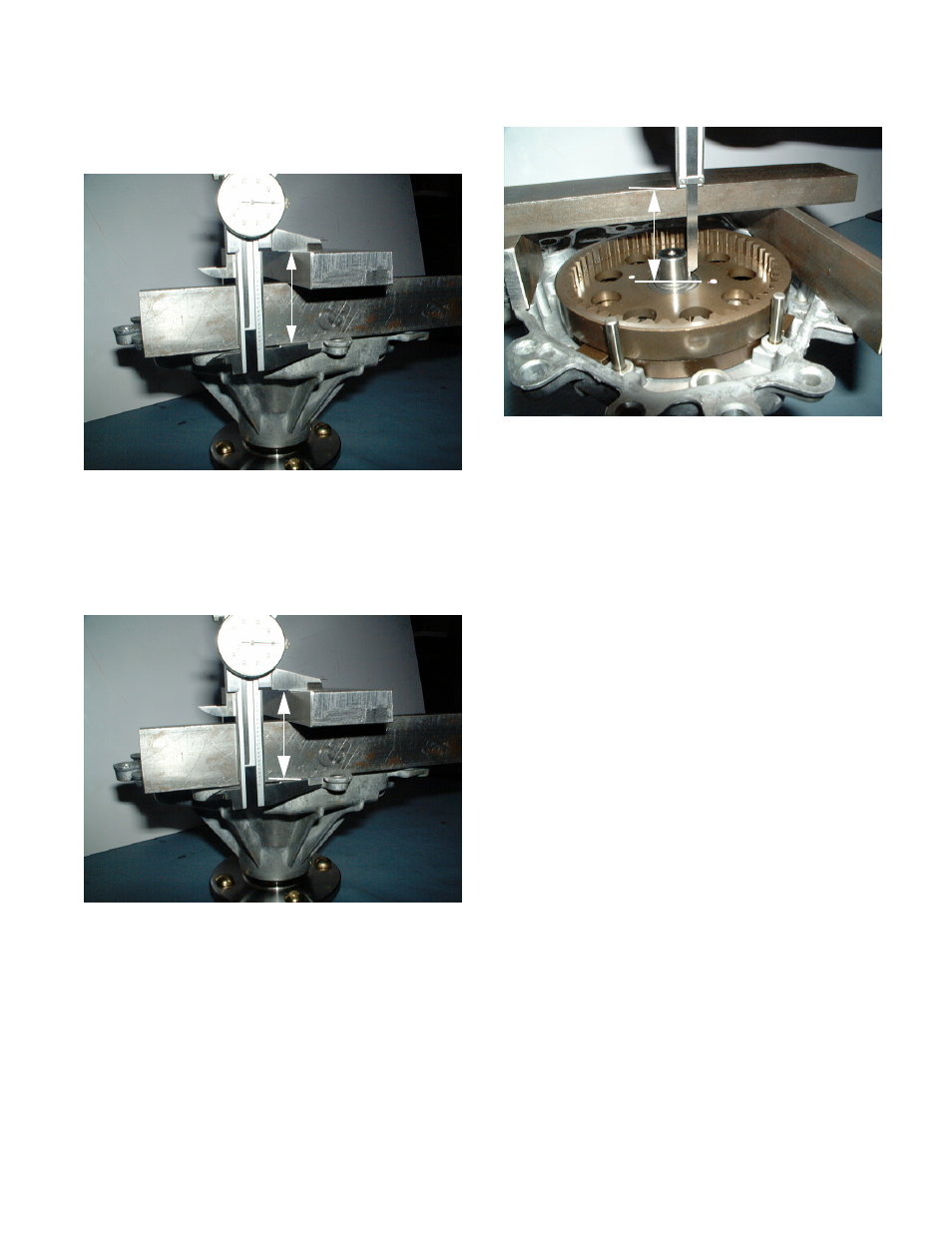

22. Measure the total distance of bar-stocks (1) and
(2). See Figure 10.
23. Record the measurement._____ This is mea-
surement (E).
24. Subtract measurement (E) from measurement
(D). See Figure 11 and 12.
Bar Stock 2
Bar Stock 1
(E)
Figure 10
(E)
Figure 11
25. Record this measurement._____ This is mea-
surement (F).
NOTE: Measurement (F) is the distance from the
mating surface of the outer axle housing to the
first shoulder of the axle shaft. This measure-
ment should be greater than measurement (C).
NOTE: Example formula is ( D - E ) = F
26. Subtract measurement (C) from measurement
(F).
27. Record this measurement._____ This is mea-
surement (Z).
NOTE: Example formula is ( F - C ) = Z
Figure 12
(D)
