17
NOTE: When assembling the transmissions to
the skid plate assembly, tighten and then torque
the bolts in numerical succession. (outside to
inside) See Figure 9.
Bolt Torque Specifications:
Part# Bolt # Size Description Torque
00002528 1-4 3/8-16 x
2.00 Gr 5 Mounts transmission motor to skid plate 33 ft. lbs.
00013198 5-8 5/16-18 x
2.00 Gr 5 Mounts transmission pump to brackets 19 ft. lbs.
01000372 9-12 3/8-16 x
.750 Gr 5 Mounts bracket to skid plate 33 ft. lbs.
01005852 13 5/16-18 x
1.00 Gr 5 Mounts belt guide to bracket 19 ft. lbs.
Strut bolts 33 ft. lbs.
Pump to final drive 22 ft. lbs.

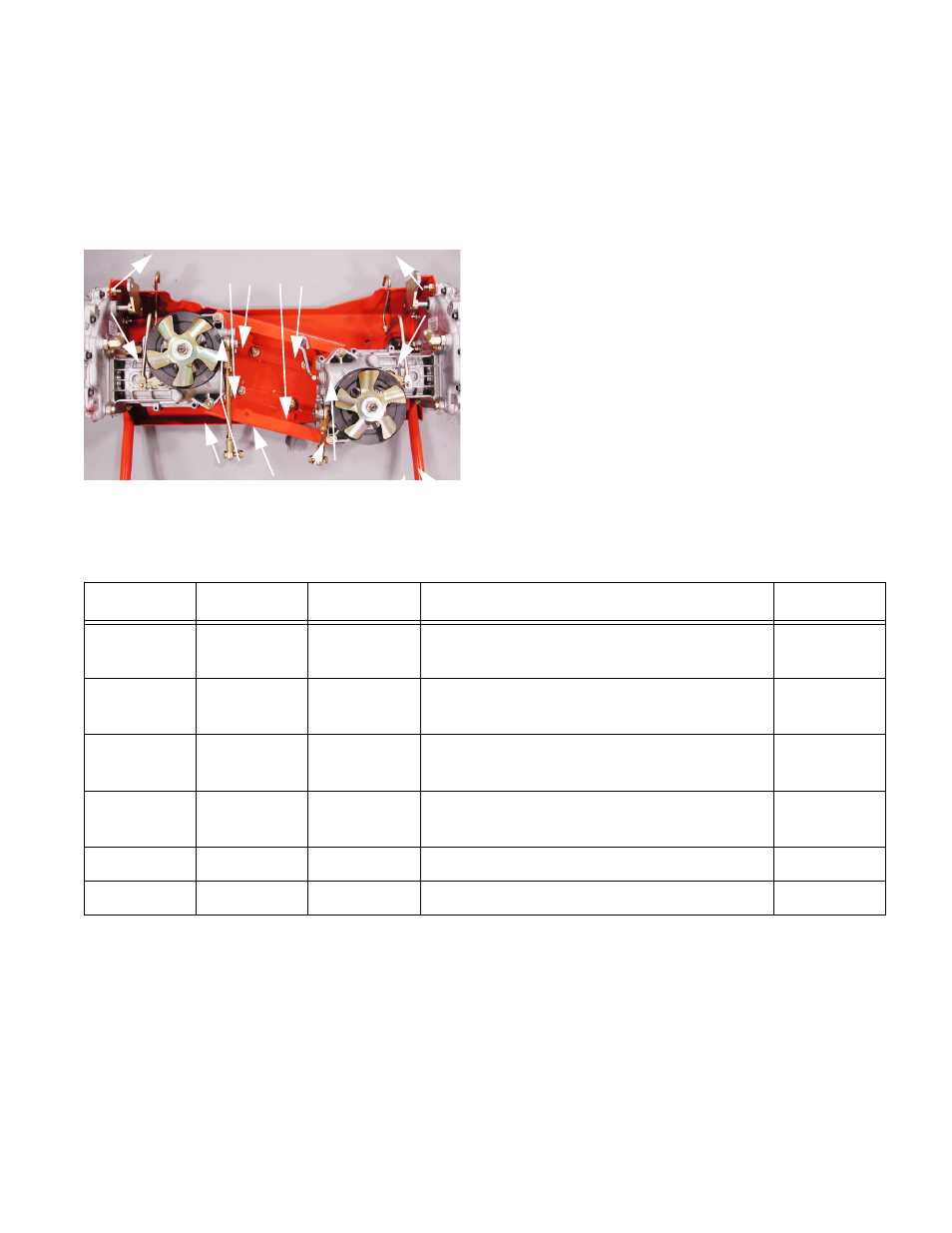

Figure 9
1
2 4 3
5 6
7 8
9 10 11 12
13
14/15
16/17
