Cub Cadet Commercial M60 Tank - 2002 and prior years
22
Left Transmission Shimming and
Assembly
1. Make certain both transmission mating faces are
clean.
2. If the outer oil seal was removed, press a new
one into the outer axle housing until it bottoms
out. See Figure 1.
3. Push the outer ball bearing into the outer axle
housing until it is firmly in position. See Figure 2.
4. Secure the outer ball bearing in position with the
large internal snap ring using snap ring pliers.
5. Press the axle assembly into the outer ball bear-
ing.
6. Secure the axle assembly in position with the
center snap ring using snap ring pliers.
7. Install the output carrier assembly, all three 13T
spur gears and the 46T ring gear onto the axle
assembly. See Figure 3.
8. Install the brake assembly. See Figure 4.
NOTE: Make certain the bend in the brake shoe
spring is flush up against the brake shaft.

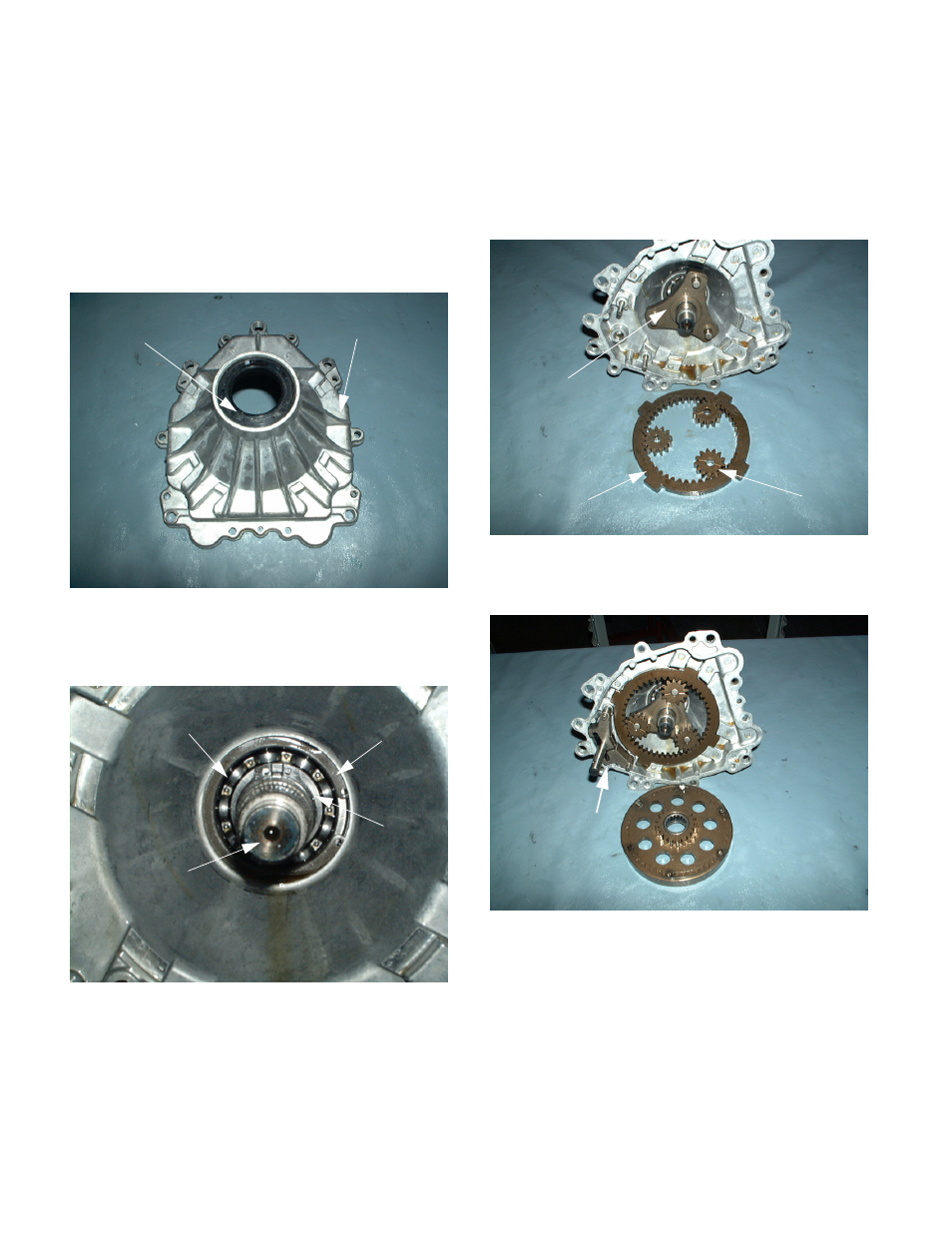

Figure 1
Oil Seal
Outer Axle Housing
Figure 2
Ball Bearing
Outer Axle Housing
Large Internal
Snap Ring
Axle Assembly
Center Snap
Ring
Figure 3
46T Ring Gear
13T
Output Carrier
Spur Gear
Figure 4
Brake Assembly
